    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light
    24V 5 Meter Side-Emitting COB RGB LED Strip Light

    24V 5 Meter Side-Emitting COB RGB LED Strip Light

    €49.90
    Tax included
    rating No review at the moment
    • Side View lateral emission: the light is projected sideways relative to the strip plane, ideal for edges, coves, profiles, curves, and installations where a standard Top View strip is not suitable.
    • COB RGB technology without dotting: the high density of 630 chips per meter creates a continuous, uniform light line with customizable RGB colors.
    • Make it Smart with Controllers: pair the 24V COB RGB strip with one of our compatible Smart controllers to manage colors, brightness, scenes, and automations directly from your smartphone.
    • Power 9W per meter: offers a good balance between light intensity and consumption, with luminous flux up to 220 lm/m in combined RGB mode.
    • 24V DC power supply: designed for low-voltage 24V LED systems, ideal for linear installations spanning several meters.
    • 5-meter roll: supplied in a length of 5000 mm, suitable for decorative lighting, furniture, architectural profiles, and custom applications.
    • Cuttable every 100 mm: cut segments every 10 cm allow you to adapt the strip length to the actual dimensions of the installation.
    • Compact 10 mm PCB: the slim width makes it easy to fit into profiles, grooves, and decorative solutions with limited space.
    • Wide 180° light emission: the wide-angle lateral diffusion delivers a soft, uniform lighting effect along the illuminated edge.
    • 70 µm double-layer FPC: the flexible circuit structure is designed to balance voltage drop, heat dissipation, and strip flexibility.
    • Customizable RGB control: when paired with a compatible 24V RGB controller, it lets you adjust colors, brightness, and any effects available on the chosen controller.
    Degree of Protection :
    Quantity :
    Good to know before you buyStriscia LED passiva senza controller: per il controllo da app serve un controller LED smart compatibile (venduto a parte).
    Close
    • Secure payments: Secure payments: cards, PayPal, bank transfer, and installments
    • Delivery within 48 hours: Delivery within 48 hours: Free shipping on orders over €150 across Europe
    • Easy 14-day returns: Easy 14-day returns: follow the steps to get your refund

    Buy it with

    • 24V 5 Meter Side-Emitting COB RGB LED Strip Light
    • +
    • 24V DC Switching Power Supply Transformer and Converter from 200-240V AC to 24V DC
    • +
    • Tuya 4 Zone Controller for Smart WiFi Led Strip
    • €77.79-3 %
      Total price: €75.46
    info One of these items has different availability  Show details

    Continuous Side Lighting with Side View COB Strip for Profiles, Edges and Decorative Details

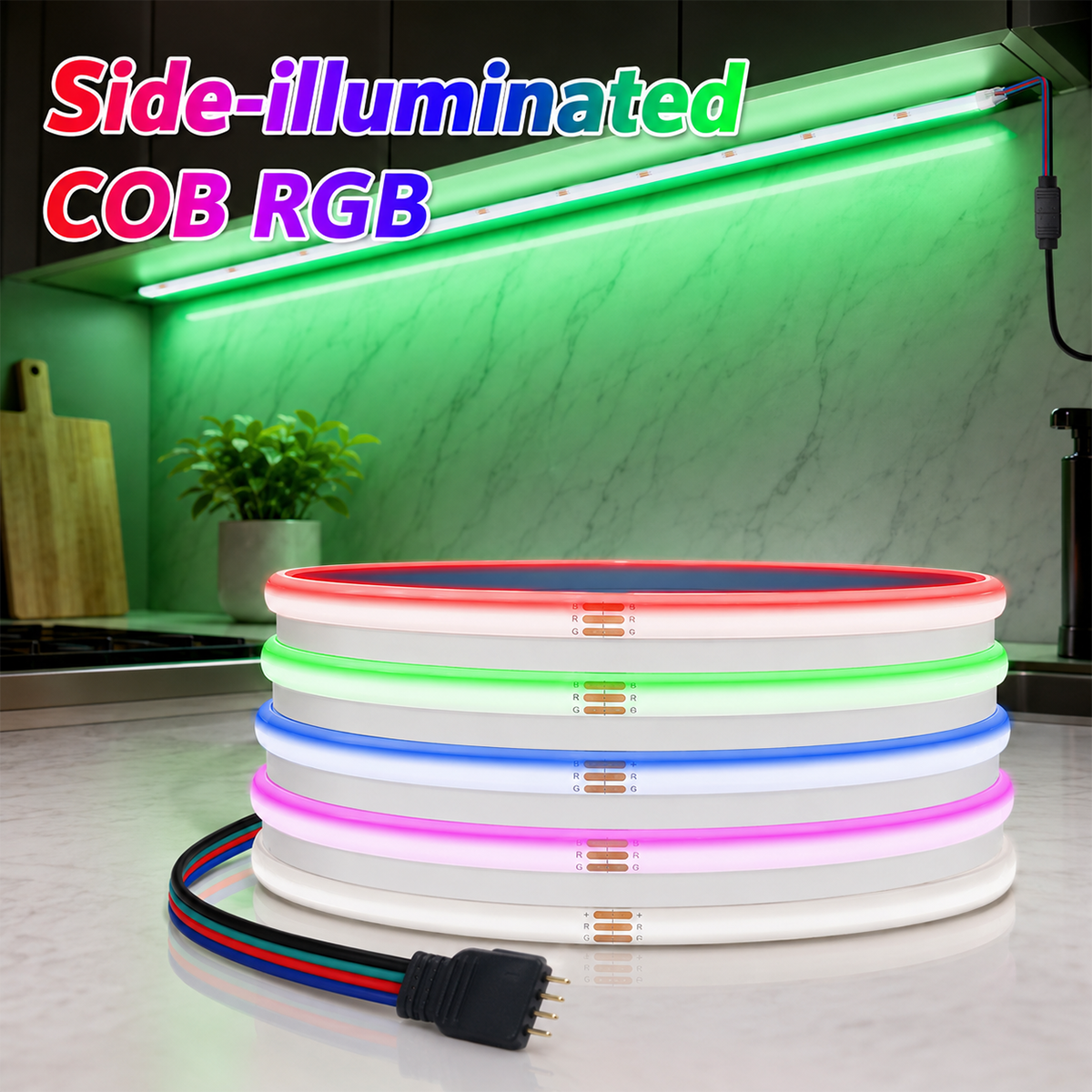

    The 5-meter 24V Side View RGB COB LED Strip is designed to create continuous light lines with side emission , a feature that distinguishes it from traditional LED strips with frontal lighting. Thanks to COB technology and the high density of 630 chips per meter , it offers a uniform lighting effect and significantly reduces the perception of individual LED dots. The RGB combination allows you to create numerous colorful shades, while the flexible format, 10 mm PCB and cutting points every 100 mm allow it to be adapted to profiles, edges, coves, furniture, shelves, niches and decorative lighting projects. Powered by 24V DC and with a power of up to 9W/m, it can be combined with a compatible 24V RGB controller to manage colors, brightness and effects based on the chosen system.

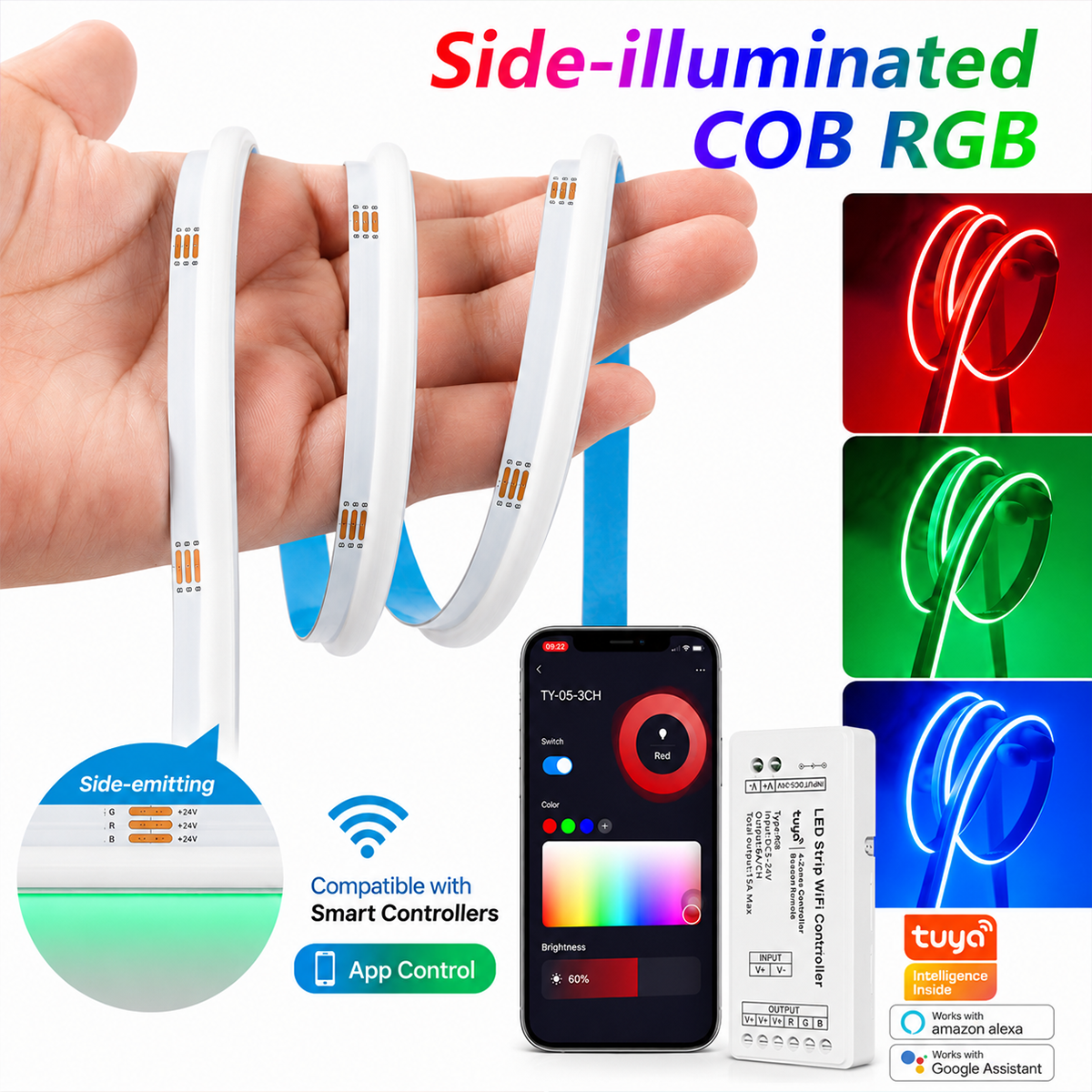

    Compatible with Smart Controller for App Management

    The Side View 24V RGB COB LED Strip is designed to offer great flexibility in decorative installations and can be paired with our compatible smart controllers for more advanced control. By connecting it to a compatible 24V RGB controller, you can manage on/off, colors, brightness, and lighting effects in a practical and intuitive way. By choosing a smart controller , the strip can also be controlled remotely via an app , making it easier to manage your lighting even from a distance.

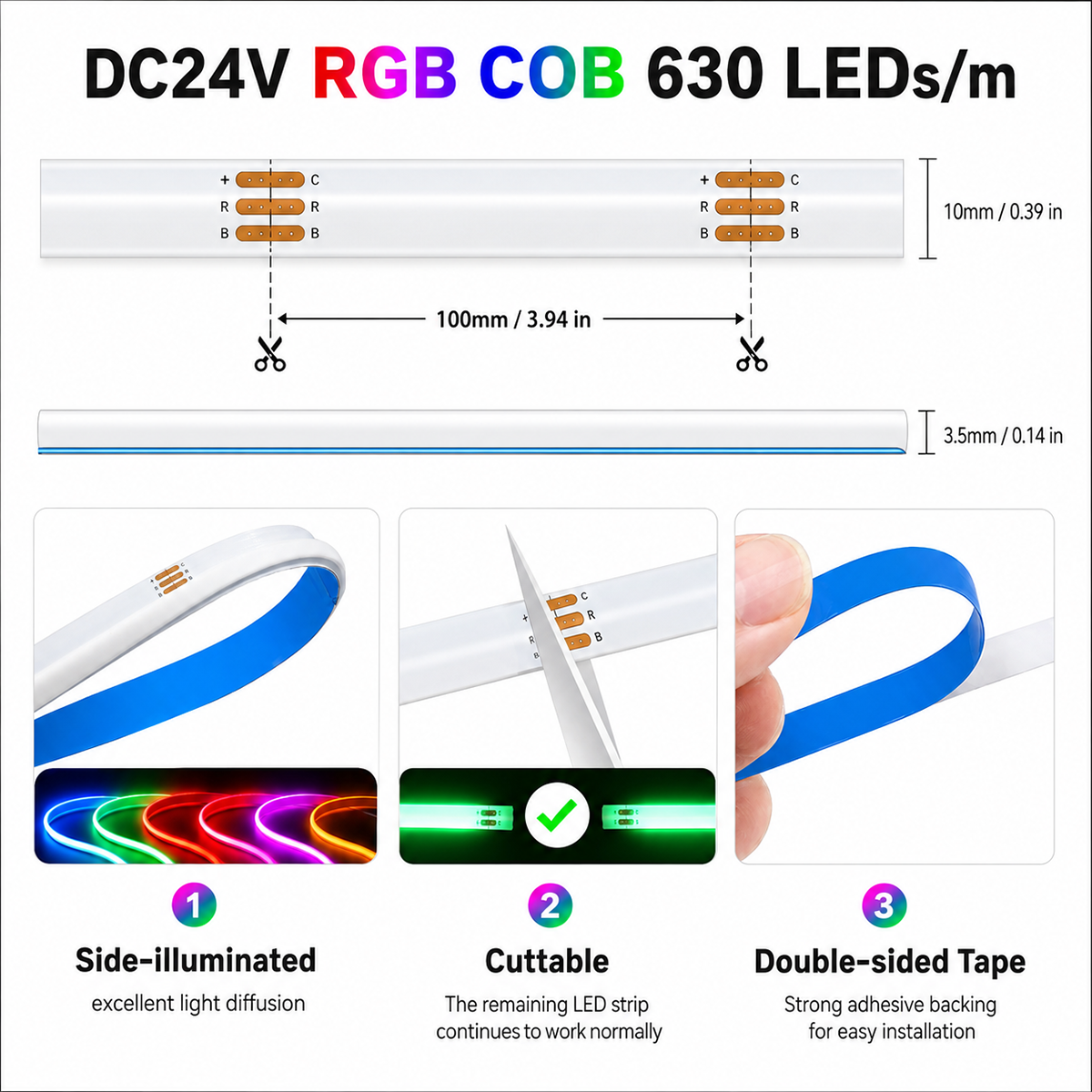

    630 Chips per Meter, Lateral Emission and Cut Every 10 cm for Custom Installations

    The strip's structure is designed to offer precision and flexibility for custom installations. RGB COB technology with 630 chips per meter creates a continuous line of light, while Side View emission directs the light sideways relative to the circuit board. The 10 mm wide PCB facilitates insertion into profiles and grooves, while cutting points every 100 mm allow the strip's length to be adapted to the actual dimensions of the project. The adhesive backing also makes it easy to attach to clean, smooth, and installation-friendly surfaces.

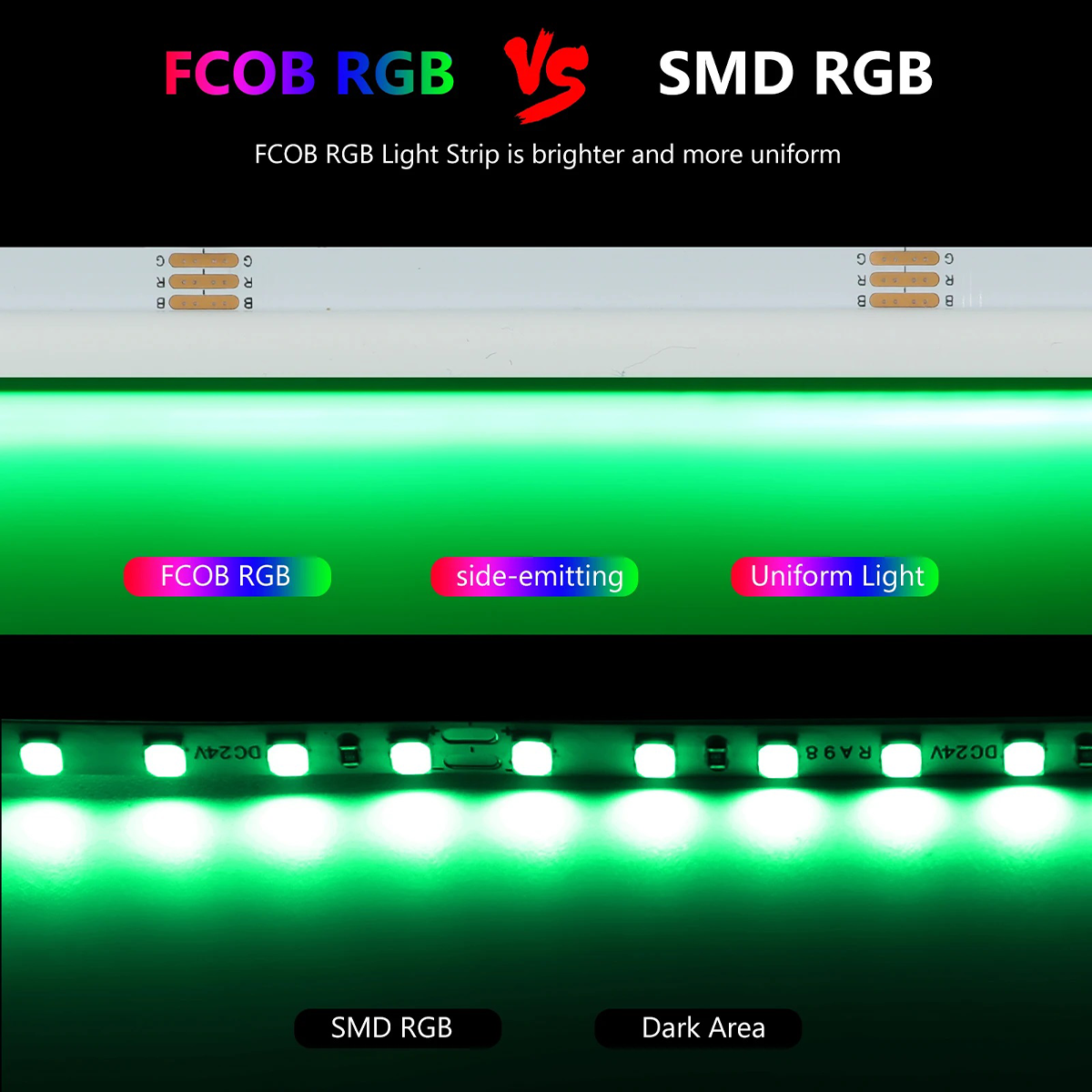

    More Uniform COB Light to Reduce the Dot Effect of Traditional LED Strips

    COB technology distributes light along the strip much more continuously than traditional SMD solutions with spaced LEDs. The high chip density reduces dark spots between light points and allows for a more homogeneous and uniform RGB line , particularly noticeable when the strip remains visible or is installed in shallow profiles. The result is a cleaner and more elegant lighting effect, ideal for furniture, edges, niches, shelves, and decorative applications where the visual quality of the light line is particularly important.

    RGB Colors to Customize Rooms, Furniture, and Lighting Profiles

    The RGB configuration allows you to combine red, green, and blue to create numerous hues and adapt the lighting to the style of your space. You can use brighter colors for gaming rooms and entertainment areas, or softer shades to create atmospheric lighting in living rooms, bedrooms, furniture, and suspended ceilings. By pairing the strip with a compatible 24V RGB controller , you can manage the colors, brightness, and any effects available on the controller of your choice, transforming a simple line of lights into a completely customizable decorative element.

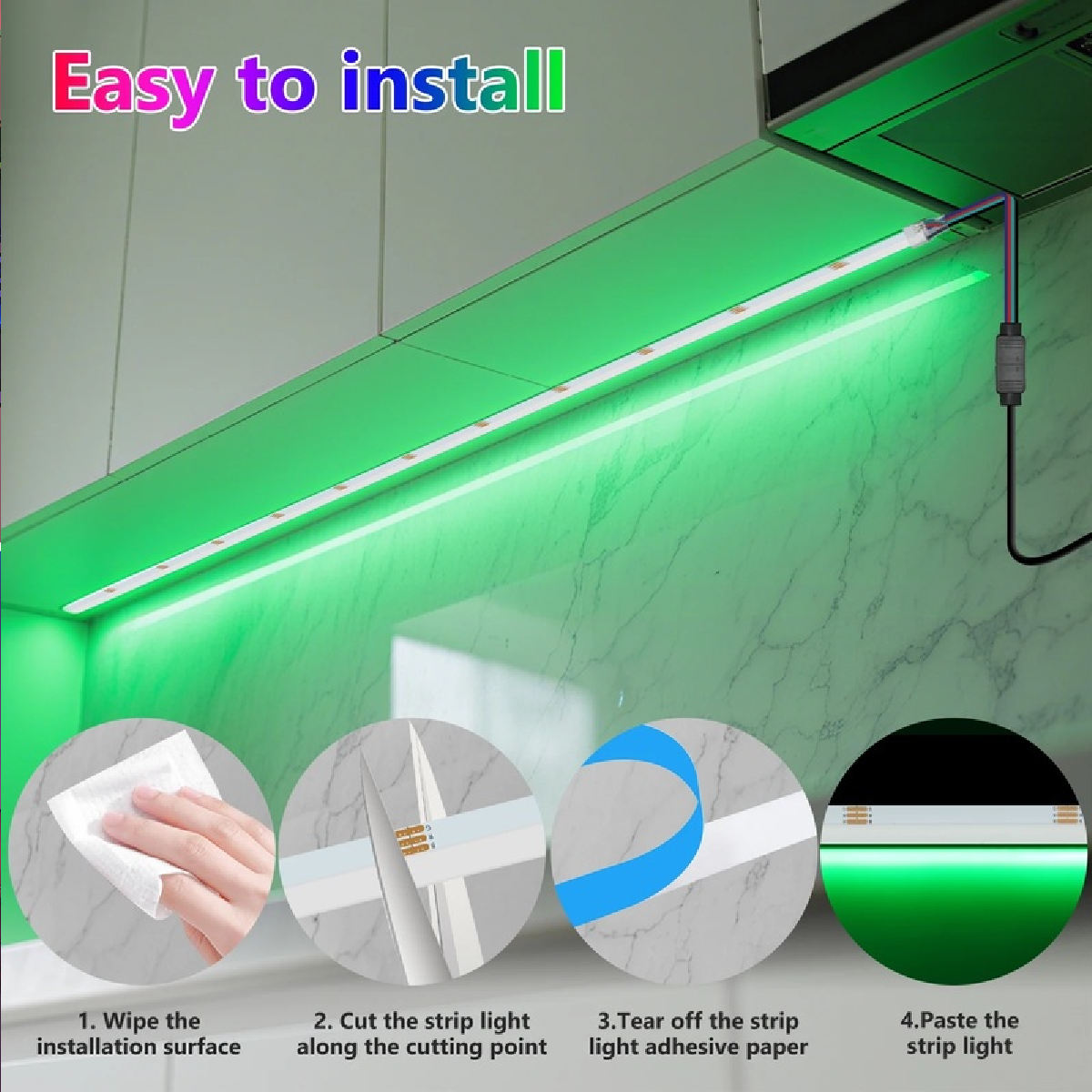

    Easy installation with adhesive backing and pre-defined cutting points

    The strip is designed to simplify linear and decorative installations. After thoroughly cleaning the surface, the strip can be cut exclusively at the designated points every 100 mm , removed from the protective film on the back adhesive, and fixed in the desired position. The flexible structure allows it to follow compatible profiles and geometries, while the slim format and 10 mm width facilitate its integration into numerous furnishing and indirect lighting solutions.

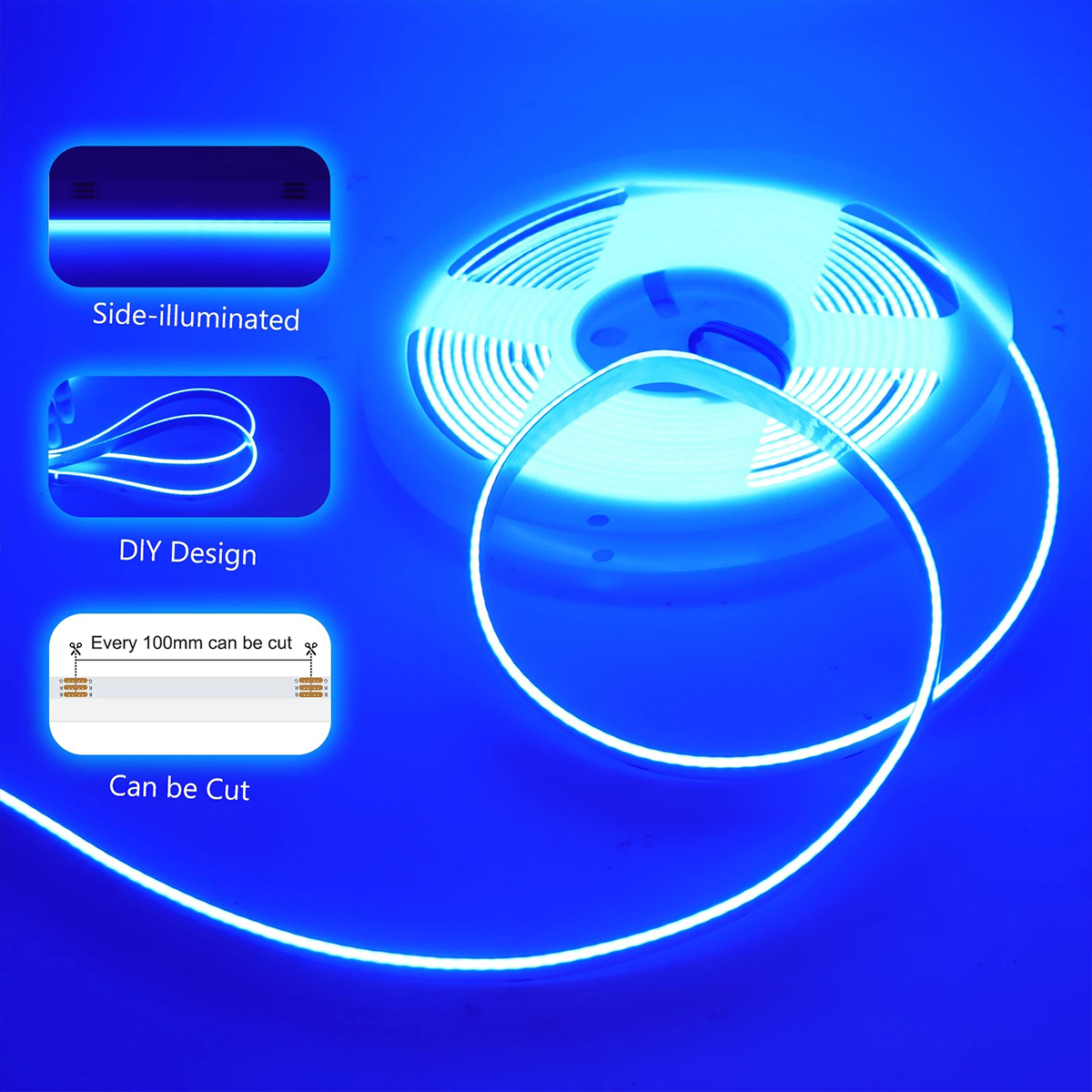

    Flexible Side Emission for DIY Projects, Custom Curves and Profiles

    The Side View feature makes this strip particularly useful for projects where light must shine laterally from the mounting surface. The flexible structure allows for compatible curves and DIY solutions for edges, profiles, furniture, and architectural details, while the ability to cut the strip every 10 cm allows for lengths that are more suitable for the project. Compared to a standard front-emitting strip, the side-emitting feature opens up new installation possibilities, especially in tight spaces and geometries where the edge rather than the front surface needs to be illuminated.

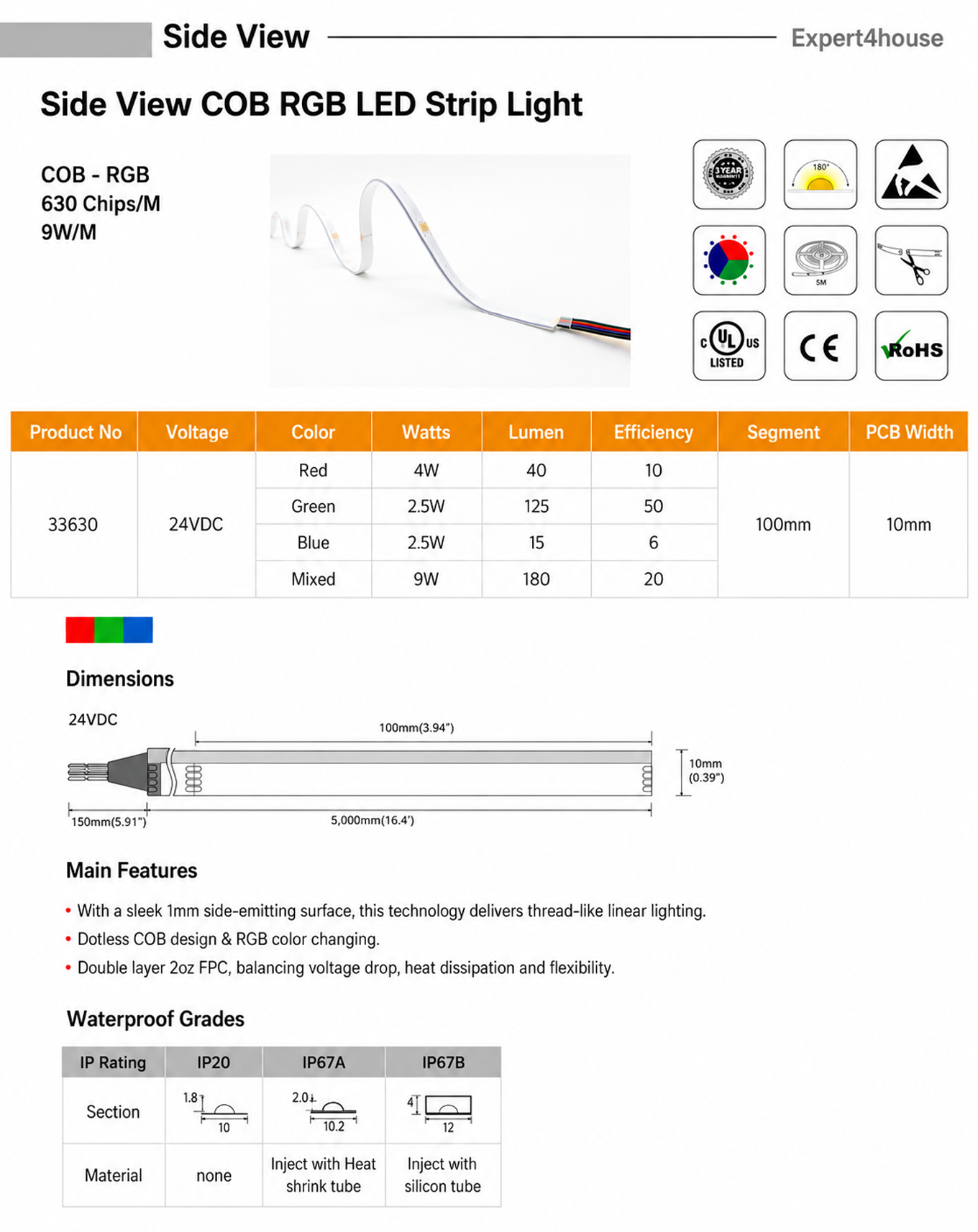

    Technical Specifications, Dimensions and Features of the Side View LED Strip

    Frequently Asked Questions

    What does “Side View” or side emission mean?

    Side View technology means that the light is emitted laterally relative to the plane of the strip, rather than primarily upwards as with traditional Top View strips. This feature makes it particularly suitable for edges, coves, profiles, shelves, furniture, and installations where it is necessary to illuminate a surface from the side.

    COB technology uses a high density of closely spaced chips to create a more continuous and uniform light line , reducing dark areas and the typical dot effect seen in traditional SMD strips. Product comparison material highlights the greater uniformity of COB emission.

    The strip has 630 chips per meter , a feature that helps achieve continuous and homogeneous light emission.

    Yes. It is an RGB strip, so it uses the red, green and blue channels to create different shades through a compatible RGB controller.

    To control colors, brightness, and any effects, you need to connect it to a compatible 24V RGB controller . The strip is the lighting component; the control functions depend on the controller used.

    Not directly. Voice compatibility depends on the smart controller used . By pairing it with an RGB controller compatible with Alexa or Google Assistant, you can add the corresponding supported voice commands.

    No. This is a traditional multi-channel RGB COB strip , not an SPI strip with individually addressable pixels. Therefore, it is not possible to assign a different color to each individual chip using a standard RGB controller.

    The power with the combined colors is 9W per meter . Using the entire 5-meter roll, the total nominal consumption is therefore approximately 45W .

    Tuya
    Tuya-33630-RGB-IP20

    Data sheet

    Colors
    RGB
    Working temperature
    -25℃~+65℃
    Voice Control
    None
    Power
    9W
    input voltage
    24V DC
    Protection Rating
    IP20
    IP67
    Length
    5 meters
    10mm
    luminous flux
    220 lumen/m
    LED type
    COB
    LED per Meter
    630 Led/m
    Color rendering index
    Ra 90+
    Energy rating
    A+
    Beam angle
    180°
    Cutting length
    100mm
    LED Chip Type
    COB
    Works with
    No app (accessory)
    Hub required
    None (Wi-Fi / standalone)
    Ideal for
    Lights & LED
    Home Assistant integration
    Not integrable

    Specific References

    UPC
    909246791392
    EAN13
    9092467913925
    MPN
    Tuya 33630 RGB IP20

    Download

    Specification Strip LED 33630

    Specification Striscia LED COB RGB Side View a emissione laterale 24V 5 metri

    Download (3.17MB)
    COB RGB Side View LED Strip 24V 5 meters with side emission
