Expert4House – Smart Home Automation

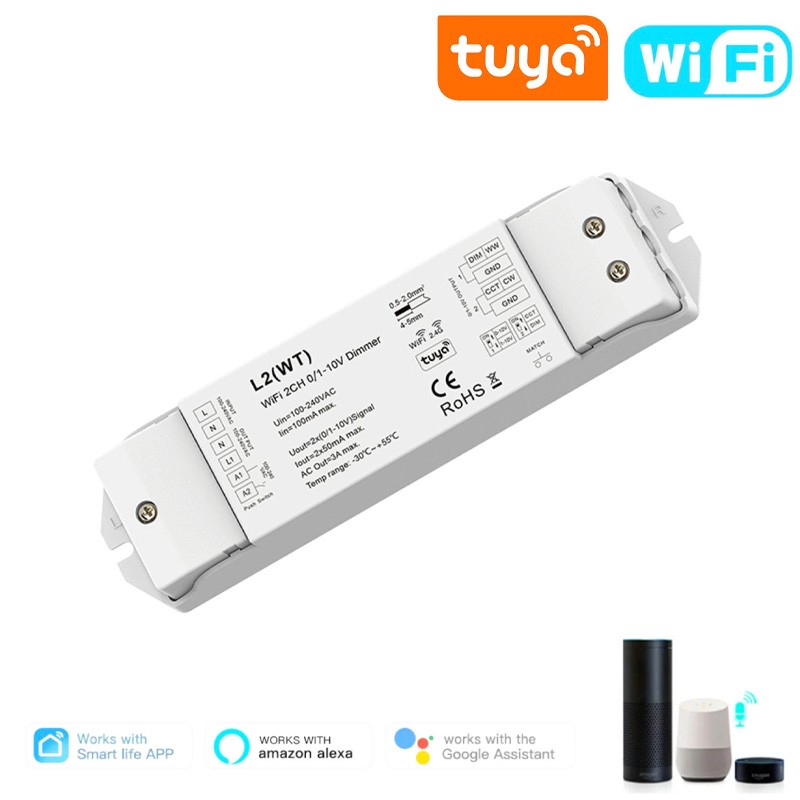

Tuya Smart WiFi 2-Channel 0/1–10V LED Strip Controller Dimmer and CCT with RF Control and Push Button
€34.90
Tax included
No review at the moment
- 2-channel 0-10V / 1-10V Dimmer: Dual 0/1-10V signal output (2×50 mA) for dimmable LED drivers or CCT, with AC 100-240 V input.
- WiFi + RF + Push: Control via Tuya/Smart Life app, 2.4 GHz RF remote controls, and wall button for on/off and 0-100% dimming.
- DIM or CCT Selector: Use DIP switch to configure the 2 channels as a dual dimmer or for warm/cool white light or brightness + color temperature.
- Selectable 0-10V or 1-10V: Compatible with both 0-10V and 1-10V LED drivers, adjustable via DIP switch for maximum installation flexibility.
- Tuya Smart / Smart Life App: Turn on/off, dim, CCT color, timer, scenarios, and music function directly from your smartphone.
- Voice Control: Supports Amazon Alexa, Google Assistant, Tmall Genie, and Xiaodu for voice commands on lights and scenarios.
- Smooth Dimming at 256 Levels: 0-100% adjustment without visible flickering, ideal for residential and commercial environments.
- WiFi-RF Gateway Function: Each L2(WT) can work as a WiFi-RF converter to synchronously control multiple RF dimmable drivers or controllers.
- Integrated AC Output (3 A max): Built-in AC relay to cut power to LED drivers when the light is off, with selectable 3 s fade on/off time.
- Compact and Safe Installation: IP20 housing, working temperature -30~+55 °C, CE and RoHS certifications, ideal for electrical panels and false ceilings.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
0-10V Smart LED Dimmer for Professional Lighting with Tuya WiFi Control
Smart LED Controller 0/1-10V
Take your lighting management to the next level with the Tuya 0-10V Smart LED Controller , the smart dimmer designed for those who want precise, modern and fully automated lighting control. Ideal for LED strips, panels, spotlights and any 0-10V dimmable driver, it transforms any room into a comfortable, efficient and smart space. Thanks to the Tuya Smart WiFi connection and 433MHz RF support, the controller can be managed via app, remote control or voice commands via Alexa and Google Home , allowing you to adjust the light at any time with absolute ease. Whether you're creating a relaxing atmosphere, illuminating a commercial space or automating your home, you'll always have the perfect brightness with a simple touch. The dual 0-10V output and support for DIM and CCT modes offer versatile and professional control, while compatibility with automations and smart scenarios allows you to customize your lighting like never before. Compact design, simple installation and stable operation make it the ideal choice for those looking for reliability, aesthetics and technology in a single smart product. Transform your lighting into a modern, elegant and fully intelligent system — with the power of the Tuya platform and the convenience of wireless control.
Main Features
- 📶 WiFi + RF Dual Control: Smart control via Tuya / Smart Life app and local control via 433MHz RF remote control (optional), for convenient management in any situation.
- 🎚️ Professional Dimming 0-10V / 1-10V: Compatible with dimmable LED drivers, ensures precise and smooth brightness adjustment.
- 🌗 CCT and DIM Support: Choose between single white light mode (DIM) or warm/cool color adjustment (CCT) via dedicated switch.
- 📱 Complete Smart Management: Turn on, off, adjust brightness, timers, scenes and automations directly from the Tuya app.
- 🗣️ Voice Control: Compatible with Alexa and Google Home to adjust the light with simple voice commands.
- 🎶 Music Mode & Dynamic Scenes: The lights sync with music, creating perfect lighting effects for parties, dinners and special moments outdoors.
- 🔘 Integrated Push-Dim: Connect to a traditional button to turn on/off or adjust brightness with a long press.
- 🔄 Multi-Controller Sync: Ability to synchronize multiple dimmers in the same installation for uniform and coordinated lighting.
- 🔧 Easy Setup: Smart and AP modes for quick WiFi network pairing and intuitive setup for installers and users.
- 📡 WiFi–RF Converter Function: The controller can act as a bridge to connect other RF dimmers to the Tuya ecosystem.
- 📏 Versatile Installation: Compact, lightweight and suitable for electrical panels, false ceilings and professional installations.
- 💡 Wide Compatibility: Perfect for LED strips, LED panels, spotlights and 0-10V professional lighting systems.
Multi-Zone Smart Control System
Manage your lighting like never before thanks to the Multi-Zone Smart Control System , designed to coordinate multiple 0-10V LED controllers simply, intuitively, and completely wirelessly. This feature allows you to create synchronized, seamless, and intelligent lighting, controlling multiple environments simultaneously via app, voice, or remote control. Thanks to the 2.4GHz Wi-Fi connection and the Tuya platform, each controller communicates with the router to offer instant control from your smartphone, even when you're away from home. Compatibility with Alexa and Google Home allows you to adjust brightness with a simple voice command, while optional RF remote controls ensure fast, latency-free local control, perfect for professional installations or commercial spaces. You can manage multiple 0-10V LED drivers in parallel, each with its own dedicated controller, achieving a uniform, scalable, and fully customizable lighting system. Whether it's a living room, an office, a shop window, or a covered outdoor area, you can adjust each zone with maximum precision and convenience.
Intelligent Connection Diagram
The system allows you to easily connect one or more 0-10V LED drivers to control single-light or CCT LED strips, offering uniform, precise, and fully dimmable lighting. The integrated Push-Dim button allows for quick control: one touch to turn on or off, a long press to smoothly and naturally adjust the brightness. Thanks to the Tuya Smart app, you can choose between DIM mode for brightness adjustment or CCT for color temperature control, all with a simple and intuitive interface. With just a few seconds of setup, the controller integrates into your WiFi network and becomes part of your smart ecosystem, ready for automations, scenarios, and voice control.
Smart Brightness and Color Adjustment
Choose the type of dimming best suited to your system and customize the light with absolute precision thanks to the selection between 0-10V and 1-10V , perfect for any professional LED driver. With a simple switch you can activate the CCT mode, which allows you to control not only the brightness, but also the color temperature, creating warm and relaxing environments or more energetic cold tones. The controller also integrates the pairing function with RF remote controls , ideal for those who want quick and local control without using the app. In just a few seconds you can associate or remove a remote control thanks to simple and intuitive procedures, designed for quick and professional installations. And when you need even more flexibility, the device can function as a WiFi–RF converter , allowing you to synchronize other controllers or dimmable drivers within the same system. A versatile technology that adapts to every need and allows you to create truly customized, elegant and smart lighting.
Frequently Asked Questions
Yes, the device is compatible with all 0-10V or 1-10V dimmable LED drivers. Simply select the correct mode via DIP switches.
Yes, but only if they are connected via a 0-10V dimmable driver .
The controller does not directly power the strip: it sends the regulation signal to the driver.
Yes, the controller requires L and N input to power properly.
Yes, if you use it in CCT mode. CH1 adjusts the brightness while CH2 controls the color temperature.
You can connect multiple drivers in parallel, as long as they don't exceed the limits of the driver itself. The maximum recommended distance between the controller and the driver is 50 meters.
Yes, the controller supports single or multi-zone 433MHz RF remotes . Pairing takes just a few seconds via the Match button or a reboot.
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Tuya-39010
Data sheet
- Working temperature
- -30°C ~ +55°C
- Voice Control
- Amazon Alexa and Google Home
- Mobile application
- Tuya Smart or Smart Life
- Dimensions
- 175x45x27 mm
- Communication Protocol
- RF 2.4G
Wifi - input voltage
- 100-240V AC
- Output voltage
- 0/1–10V
- Protection Rating
- IP20
- Dimming range
- 0-100%
- Output current
- 0/1-10V: 50mA/CH AC: Max 3A
- Exit signal
- 2 x 0/1-10V
- RF Communication Distance
- 30 Meters in Open Space
- LED Types Supported
- CCT White Variable
- Input Signal
- WiFi + RF + Push Dim
- Works with
- Amazon Alexa
Google Home
Home Assistant
Tuya / Smart Life - Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Lights & LED
- Home Assistant integration
- Cloud integration
Specific References
- UPC
- 759400350168
- EAN13
- 7594003501686
- MPN
- Tuya L2(WT)
