Tuya Wired Motion Sensor Dual Technology PIR + Microwave
€16.90
Tax included
No review at the moment
- Dual PIR + Microwave technology: for more reliable detection and better reduction of false alarms.
- Covers up to 14 x 14 meters: ideal for protecting residential and commercial spaces with wide, uniform coverage.
- Standard 90° lens: enables extended volumetric protection with effective detection up to 14 meters.
- Digital Shield technology: enhances immunity to interference and environmental disturbances, increasing detector reliability.
- Normal Shield and High Shield modes: allows you to adapt sensor sensitivity based on risk level and installation environment.
- Single Edge / Dual Edge processing: optimizes digital signal processing to improve false alarm filtering.
- Adjustable microwave sensitivity: enables finer tuning based on the protected area’s configuration.
- Built-in diagnostic LEDs: distinguish infrared detection, microwave detection, and alarm status.
- Recommended installation height: 2.1 meters: provides full coverage from 1.5 to 14 meters with no dead zones using the standard lens.
- Power supply 9–16V DC: compatible with wired alarm systems with a current draw of approximately 30 mA.
- Standard alarm output 100 mA at 28 VDC: suitable for integration with professional security systems.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund

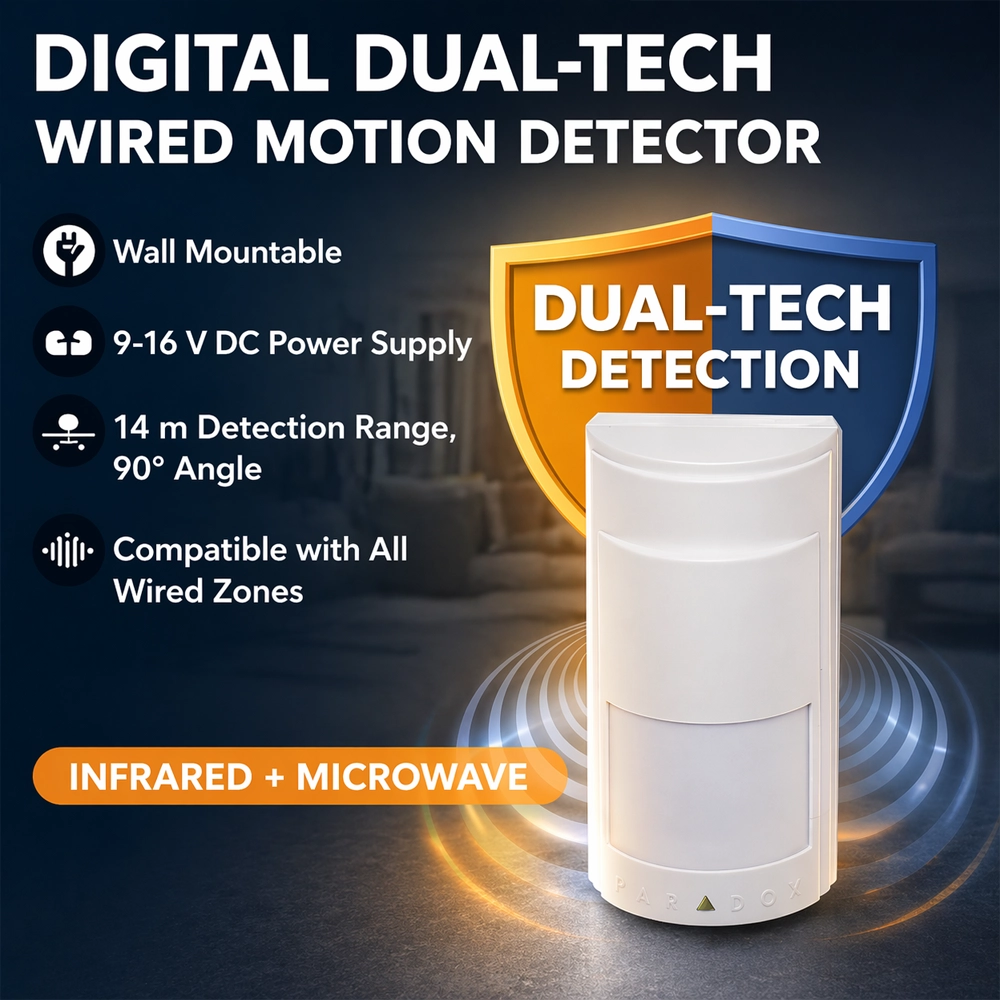

Dual-technology digital wired detector with pet immunity for more reliable security
If you're looking for a reliable wired motion sensor to protect your home, office, shop, or small professional spaces, this detector is a complete and modern solution. Thanks to its dual PIR + microwave technology , it offers more precise motion detection and helps reduce false alarms, improving the effectiveness of your security system. Its coverage of up to 14 meters at a 90° angle makes it ideal for monitoring internal areas with wide and uniform protection, while the pet immunity function up to 20 kg helps ignore small pets, increasing reliability in everyday use. Designed to easily integrate into wired alarm systems , it's the ideal choice for those seeking a professional, stable volumetric detector suitable for a variety of application contexts. The 525D Detector offers standard coverage of 14 m x 14 m at 90° and operates on low-voltage wired power.
Compatibility with wired alarm control panels
The sensor is designed to work with wired zone alarm control panels and is also suitable for integration with our compatible smart alarm control panels . Once properly connected, it detects motion in the protected area and sends a signal to the control panel, which manages the alarm event based on the system configuration. A practical solution for expanding system coverage and providing more comprehensive, reliable, and professional protection.

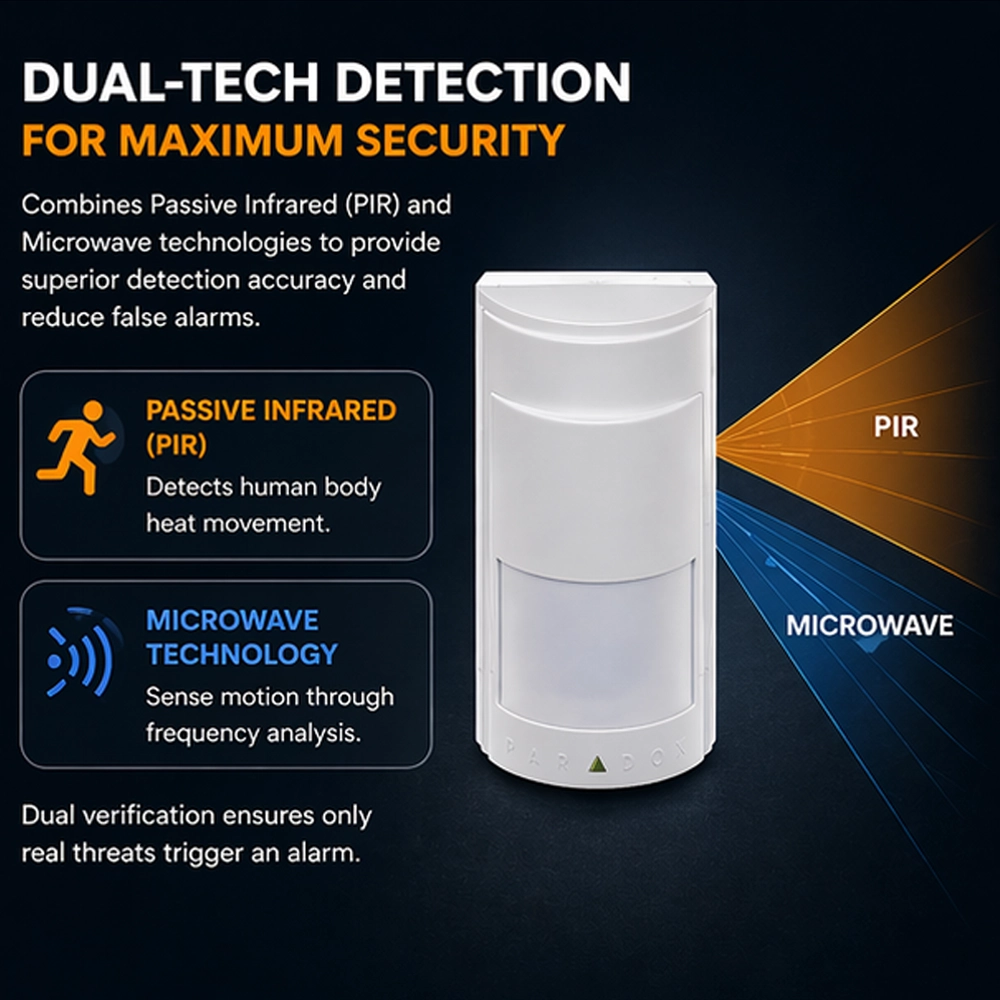

Dual PIR and Microwave Technology for More Reliable Detection
The sensor uses dual PIR and microwave technology to improve detection accuracy and increase the security of the protected environment. The PIR sensor detects motion through body heat, while the microwave technology analyzes movements through frequency, offering more accurate monitoring. Dual verification allows for more effective detection of real movements and helps reduce false alarms caused by interference or environmental changes. An ideal solution for those seeking a more stable, reliable, and high-performance detector.

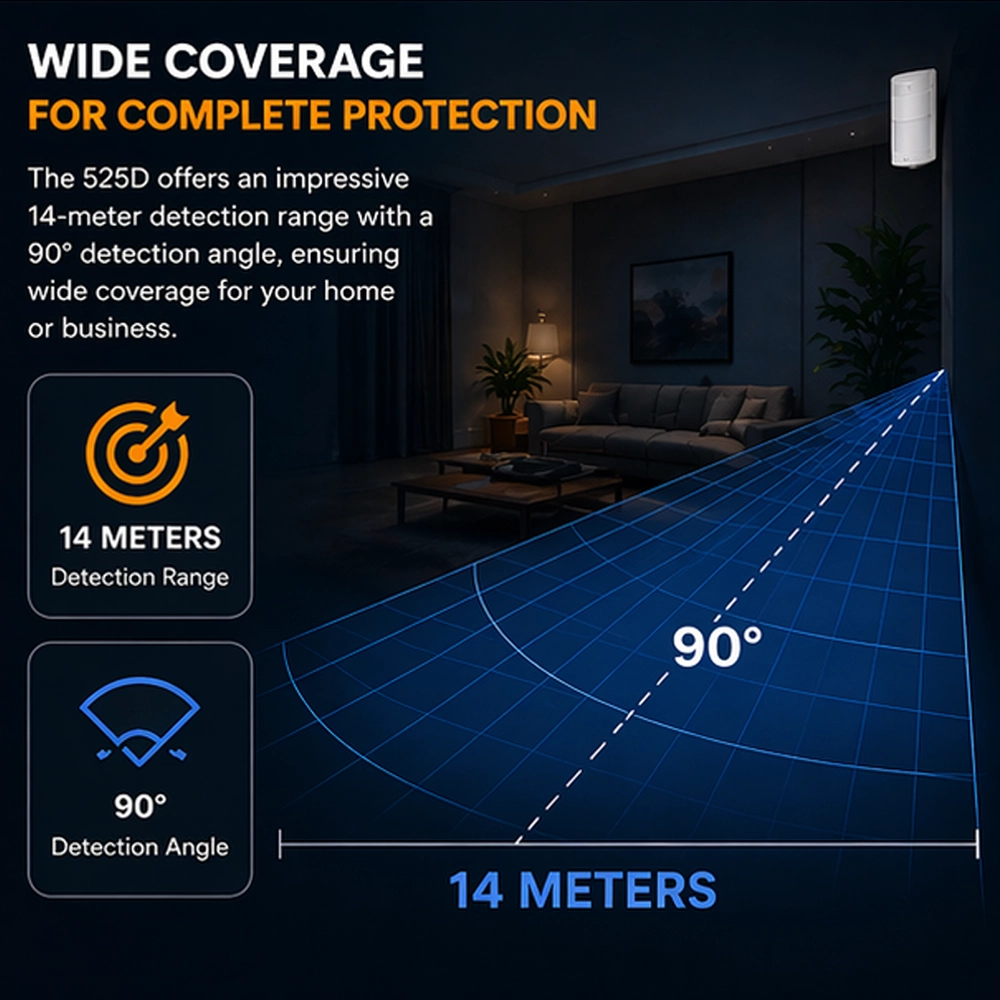

Wide 90° coverage up to 14 meters
Animal Immunity to Reduce False Alarms
With pet immunity up to 20 kg , the sensor is designed to ignore small and medium-sized pets and detect the presence of an intruder more accurately. Advanced digital signal processing helps better distinguish the size and movement of the detected object, improving system reliability and helping reduce false alarms . It is an ideal solution for homes and environments with pets, where effective protection is needed without sacrificing daily peace of mind.
One Detector, Many Security Applications
Whether at home, in the office, at a retail outlet, or in a small business, this detector offers versatile and reliable protection for every indoor environment. Its advanced technology allows you to improve spatial control, increase security, and manage protection more effectively, with a solution designed to adapt to different needs.
Frequently Asked Questions
To take advantage of the standard coverage, the sensor should be installed at a height of approximately 2.1 meters, with a tolerance of ±10%. In this configuration, with a standard lens, the indicated coverage is from 1.5 m to 14 m with no dead zones.
The first check should be made on the installation location. The manual recommends avoiding reflective surfaces, direct air currents, sources of steam or oil, infrared sources, and objects that cause temperature variations. Fans, vibrating metal surfaces, pipes with flowing water, and electromagnetic sources can also affect microwave detection.
Yes. The device has settings that affect the sensor's behavior. High Shield mode increases false alarm immunity in challenging environments, but may result in slower response and lower sensitivity than normal mode.
There are two signal processing modes. Single Edge Processing is suitable for normal environments with little interference; Dual Edge Processing offers better noise filtering and greater resistance to false alarms when the detector is installed near sources of interference.
Not necessarily. The LEDs can be enabled or disabled using the dedicated setting. If they are disabled, the detector can still function properly even without visible light signals.
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Tuya-IR525D
Data sheet
- Power supply
- DC 9-16V
- Working temperature
- -20°C to +50°C
- Voice Control
- None
- Dimensions
- 63x136x49 mm
- Communication Protocol
- Wired
- Installation
- wall or ceiling mounting (suggested)
- Protection Rating
- IP20
- Detection range
- Up to 14 Meters
- Detection angle
- 90°
- Installation height
- From 2.1 to 2.7 meters
- Tamper output
- NC
- Alarm time
- 3 Seconds
- Detection mode
- PIR + Microwave
- Detection Area
- 14m x 14m
- Detection Speed
- From 0.2m/s to 3.5 m/s
- Ideal for Automation
- Alarm System
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Alarm & video surveillance
Sensors & detection - Home Assistant integration
- Not integrable
Specific References
- UPC
- 760381605401
- EAN13
- 7603816054019
- MPN
- Tuya IR525D
