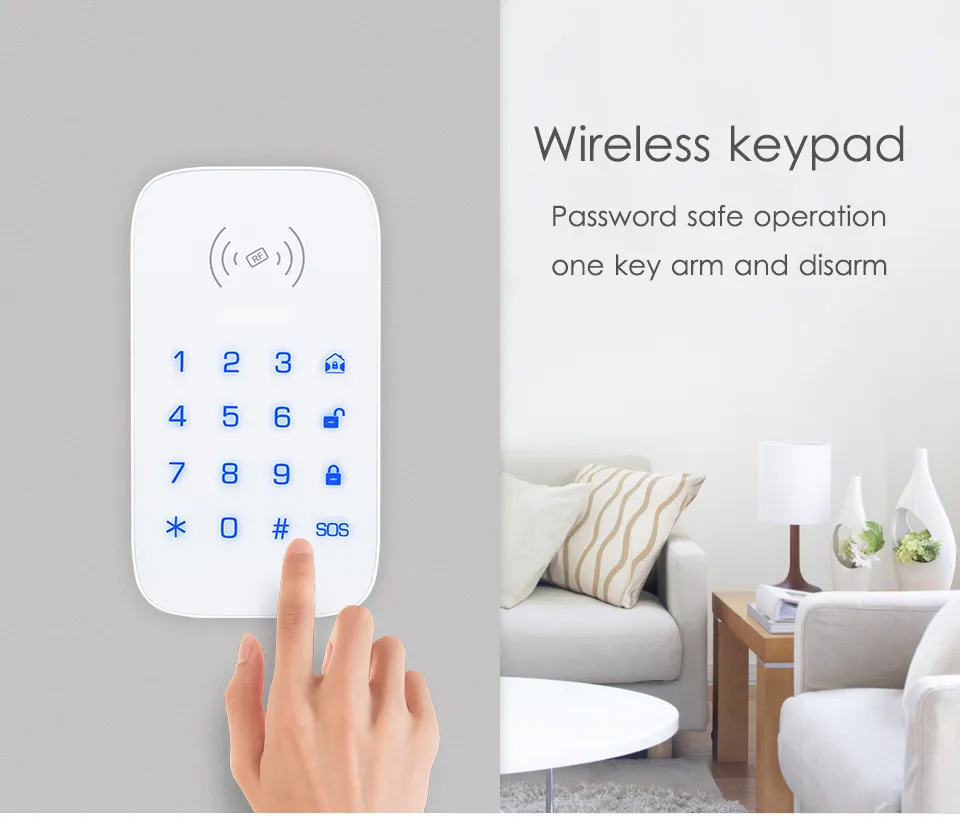

Tuya Wireless Control Keypad with RFID for Alarm Control Panels

The Tuya Wireless RFID Keypad is a smart device designed to simplify the management of your security system.

home. Thanks to the 433MHz RF connection and compatibility with the main Tuya Smart alarm systems, this

keypad allows you to arm and disarm the alarm in seconds , using a PIN code or RFID card .

Perfect for placing at the entrance, this keypad allows you to control your alarm system without having to access

directly to the control unit, ensuring greater safety and convenience. Thanks to its rechargeable lithium-ion battery

from 500mAh , offers emergency autonomy and can be quickly recharged via Micro USB port.

Total Alarm Control with Multiple Activation Modes

You can manage your security system quickly and intuitively thanks to three activation modes .

Customizable PIN Code – Each user can have a unique PIN to arm or disarm the alarm.

RFID Cards – Up to 50 RFID Tags or Cards can be registered, ideal for family members or employees.

Emergency SOS Button – In case of danger, you can activate the alarm immediately with just one touch.

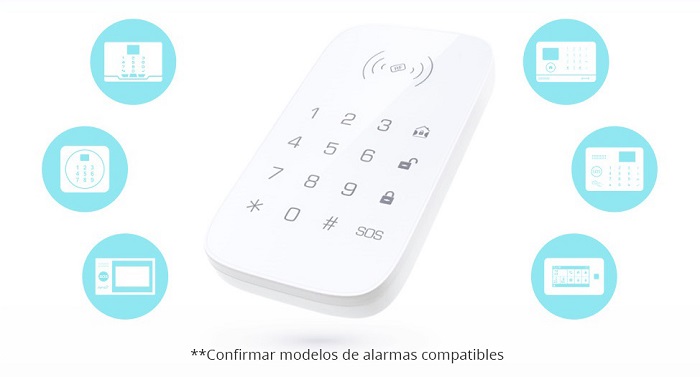

Widely Compatible

Compatible with most of our Tuya Smart alarm models to create a smart home.

Don't worry if you don't have the remote control with you, as you can arm and disarm the alarm with

the proximity card or a keyboard password.

Easy Installation and Modern Design

The keyboard is wireless , so it can be installed anywhere without the need for complex wiring. It comes with a stand

wall and fixing screws included. The compact and modern design fits perfectly into any home or business environment.

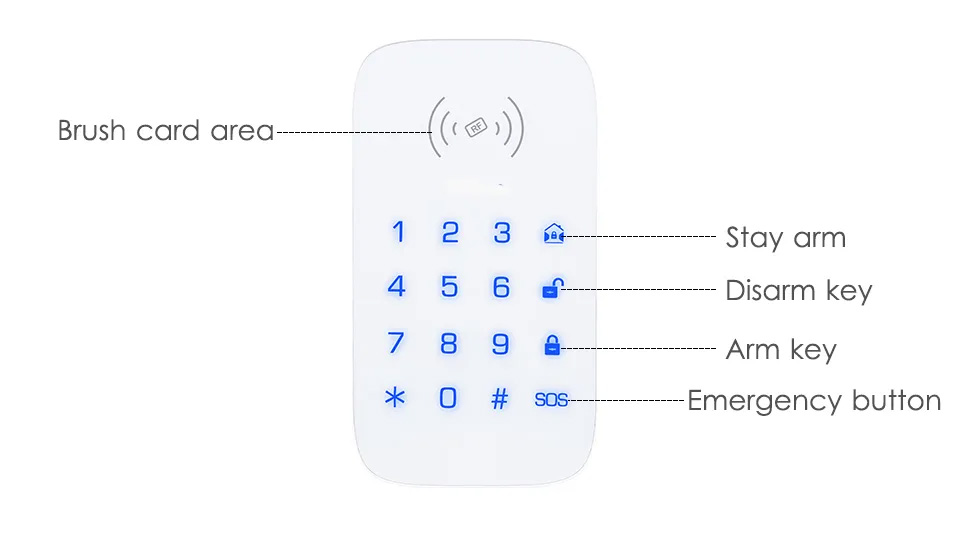

Universal Keyboard

At the top you have an area like a card reader and next to it a keyboard where you can enter

the password together with the buttons for arming, home arming, disarming and the panic or SOS button

Compatible with Tuya G30 WG103T WG107T alarm system

G12, G20, G60, and many other alarm systems.

Do you need additional Cards or Tags for your Keyboard?

Buy more 125KHz EM ID Cards and Tags on our store!

Advanced Features:

• Tamper Protection – If the keypad is removed or tampered with, the system will send an alarm signal.
• LED indicator – Indicates operating status and battery charge.
• USB Charging – Includes a 5V DC/1000mA Micro USB port for fast and convenient charging.
• Power saving mode – After 20 seconds of inactivity, the device enters sleep mode to optimize battery consumption.

Characteristics:

• Powered by 500mAh Lithium Battery with Micro USB port for charging.
• Integrated sabotage protection
• RF Connection 433Mhz
• Transmission up to 80 m
• Can use 50 RFID chips
