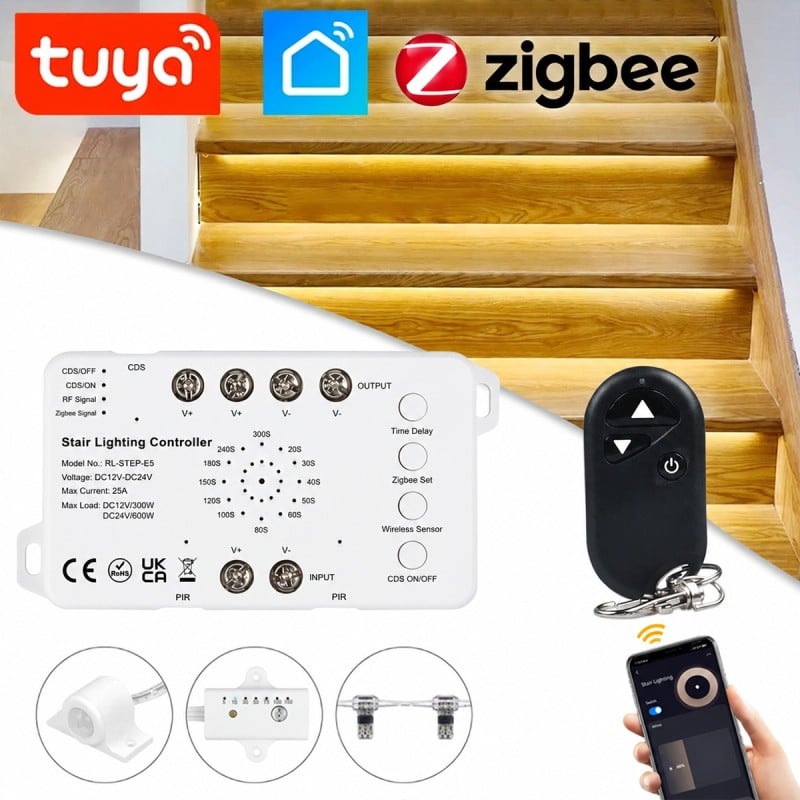

Tuya Smart Zigbee LED Staircase Lighting Controller Kit with Remote Control
€89.90
Tax included
No review at the moment
- The stairs light up automatically when you pass: two PIR sensors, one at the bottom and one at the top, light the steps as soon as you step on the first.
- Complete kit, ready to install: controller, remote, two PIR sensors with brackets, dusk sensor, cables, main line, screws, and screwdriver.
- Up to 99 steps: the included main line has 16 terminals, one per strip, and the system extends by adding more line. LED strips are purchased separately.
- Switch-off when you want: twelve delay times from 20 to 300 seconds, selected with a button on the controller and indicated by an LED.
- Only in the dark or always: the dusk sensor has seven thresholds, from 5 to 150 lux. With CDS OFF the sensors also work during the day.
- Remote in your pocket: turn on, off, and adjust brightness with the three buttons of the included RF remote, even without a phone.
- Zigbee 3.0 and Tuya Smart app: brightness from 1 to 100%, Good Night, Reading, Working, and Leisure scenes, scheduling, and Do Not Disturb.
- Default light and fade-in: choose the startup brightness and gradual turn-on in the app for stairs that won’t dazzle at night.
- Handles long stairways: strips at 12 or 24 V and up to twenty-five amps output. That means 600 W of single-color strips at 24 V, or half at twelve.
- Small, discreet sensors: PIR heads with 14 mm diameter, flush-mount or on bracket; the dusk sensor hides near the stairs.
- Compact ABS controller: 110 × 58 mm, screw terminals, buttons for delay, Zigbee, remote, and dusk sensor, four status LEDs.
- Connects to a Tuya Zigbee gateway, sold separately: from there you get the app, schedules, and scenes. 12 or 24 V single-color LED strips and power supply sold separately.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
Smart Zigbee LED Staircase Controller Kit: Turns On By Yourself When You Walk By
The Tuya Zigbee LED Stair Lighting Controller Kit turns on the steps one after the other when you set foot on the first. Two PIR sensors , one at the bottom and one at the top, detect your passage; the twilight sensor makes the stairs work only in the dark, if you want. The box contains everything: controller, RF remote control, sensors with brackets, cables and the main line that brings power to each step without a separate cable for each strip. The 12 or 24 V single-color LED strips and the power supply are purchased separately. The controller supports 25 A , or 600 W at 24 V. With a Tuya Zigbee gateway , sold separately, access the Tuya Smart app: brightness, scenes, schedules and voice commands with Alexa and Google. From the remote control, you can turn on and adjust without a phone. The switch-off delay can be chosen from twelve times , from 20 seconds to 5 minutes.
Tuya Smart App: Brightness, Scenes, Schedules, and Voice Commands
With a Tuya Zigbee gateway at home, the controller appears in the Tuya Smart or Smart Life app. You can adjust the brightness from 1 to 100% , choose a ready-made scene like Good Night, Reading, Working, or Leisure, or create your own. In the settings section, you'll find the schedule , Do Not Disturb for sleeping hours, the default light when you turn on, and the gradual fading . Voice commands also come through the app: ask Alexa or Google Assistant to turn the stairs on or off. Without a gateway, the kit still works, with sensors and a remote control.
What's in the kit and how does it connect to the ladder?
The layout is simple: the power supply enters the controller, the main line exits and runs up the stairs, and at each step a terminal powers its own strip. Sensor A goes on the bottom step, sensor B on the top step. The cables are 1 meter long , with a 5-meter extension for long stairs. The twilight sensor is mounted near the stairs, where it sees daylight. The box also includes the remote control, brackets for the PIR sensors, screws, wall plugs, and a screwdriver. Below are the strips and the power supply we usually pair.
Four buttons: delay, Zigbee, remote control and twilight
The controller features input and output screw terminals and four buttons. Time Delay determines how long the staircase will turn off: twelve times, from 20 seconds to 5 minutes, and the indicator light shows which one is active. Zigbee Set initiates pairing with the gateway. Wireless Sensor is used to pair the remote control. CDS ON/OFF determines whether the sensors work only at night or also during the day. Four indicators indicate delay, PIR sensor, twilight sensor, and Zigbee signal, so you can quickly see what's happening.
RF remote control included: one-touch pairing
The RF remote control has three buttons: brightness up, brightness down, and power. Keep it in your pocket or on your keychain and control the staircase even without a phone or gateway. To pair it, press the Wireless Sensor button on the controller and the power button on the remote simultaneously: the RF light will flash three times and you're ready to go. To delete it, press the button again until the light flashes seven times. The remote control adjusts the light to a steady state; automations with sensors continue to operate automatically.
Where to use it: stairs, corridors and passages in the house
The stairway at home is the perfect place: the steps light up as you walk and turn off automatically, eliminating the need to search for the light switch at night. It also works in hallways and passageways, where PIR sensors turn the lights on when needed. The warm-light single-color strips provide a discreet guide, while the cold-light strips create a more modern effect. The twilight sensor prevents unnecessary switching during the day; with CDS OFF, the stairway works even in a windowless space. For a second stairway or another hallway, a second kit is required.
Main line: fewer cables, up to 99 steps
In traditional kits, each strip has its own cable leading to the controller: a bundle of wires that's difficult to hide. Here, there's a main line that runs up the stairs and leaves a terminal at each step: in the box, you'll find one with 16 terminals , and the system extends up to 99 steps . The twilight sensor has seven thresholds, from 5 to 150 lux : press its button and choose how dark it needs to be for the stairs to turn on when someone walks by. So, during the day, it stays off and in the evening, it works independently.
Strip Connection and Kit Specifications
The strips connect to the line terminals with a snap connector: prepare the strip, insert the cable into the correct hole and close it with pliers. Respect the polarity, red positive and black negative, otherwise the strip will not turn on. In short: 12-24 V input, up to 25 A, 300 W at 12 V and 600 W at 24 V, single-color strips. Zigbee 3.0 with separate gateway, RF remote control, two 14 mm PIR sensors, seven-threshold twilight sensor, twelve delays. 110 x 58 mm controller in ABS, CE, RoHS and UKCA certified. The Wi-Fi version of the same kit does not require the gateway.
Frequently Asked Questions
Do you need a Zigbee gateway?
Yes, to use the Tuya Smart app, scenes, schedules, and voice commands: a Tuya Zigbee gateway, sold separately. Sensors and remote control also work without it.
How many steps can I light?
The included main line has 16 terminals, one per strip; the system can be extended up to 99 steps by adding lines.
Which LED strips should I use?
Single-color strips at 12 or 24 V, the same voltage as the power supply. No RGB strips or digital pixel strips. Strips and power supply are purchased separately.
How much power can it handle?
Up to 25A: 300W 12V strips or 600W 24V strips. Add together the wattage of all your strips before choosing your power supply.
After how long does the scale turn off?
You choose it with the Time Delay button: twelve times, from 20 seconds to 300 seconds.
Does it also turn on during the day?
It's up to you. With CDS ON, the sensors only work in the dark, with a threshold you set between 5 and 150 lux; with CDS OFF, they always work.
Is the remote control included?
Yes, with three buttons: brightness up, brightness down, and power. Pairing is done by pressing the Wireless Sensor on the controller and the power button.
Does it work with Alexa and Google?
Yes, via the Tuya Smart app and the Zigbee gateway: turn the lights on and off and adjust them by voice.
What's the difference with the Wi-Fi version?
This kit is Zigbee and requires a gateway; the Wi-Fi version connects directly to the router. Sensors, remote control, voltages, and power are the same.
Tuya-35194(WZ)
Data sheet
- Material
- ABS
- Voice Control
- Amazon Alexa, Google Home and Siri
- Mobile application
- Tuya Smart or Smart Life
- Communication Protocol
- Zigbee 3.0
- input voltage
- 12-24V DC
- Output voltage
- 12-24V DC
- Maximum load current
- DC12V 300W - DC24V 600W
- Remote control
- Included
- LED Types Supported
- Monochrome
- Maximum Current (A)
- 25A
- Ideal for Automation
- Stairs
- Works with
- Amazon Alexa
Google Home
Tuya / Smart Life - Hub required
- Tuya Zigbee gateway
- Ideal for
- Lights & LED
Scenes & automations
Specific References
- UPC
- 945322238143
- EAN13
- 9453222381432
- MPN
- RL-STEP-E5
