CCT 3 Pin SMD LED Strip Quick Connector

Tuya-CB3130

3in1 Solderless Connector for CCT LED Strip

€0.70
Tax included
Delivery in 24/48 hours
Quantity

Buy it now and receive it tomorrow with Ritiro in Punto Poste

Close
Description

Solderless Quick Connector for 3 Pin Dual Color SMD LED Strips

The CCT 3-pin SMD LED strip quick connector is the ideal solution for those who want a simple connection,

fast and safe connection between sections of dual color LED strips (warm white and cold white), without the need for soldering.

Perfect for both domestic and professional LED lighting projects, this connector ensures a secure installation

clean and reliable , optimizing the lighting performance of your CCT LED strips .

Quick and Secure Connection Without Soldering

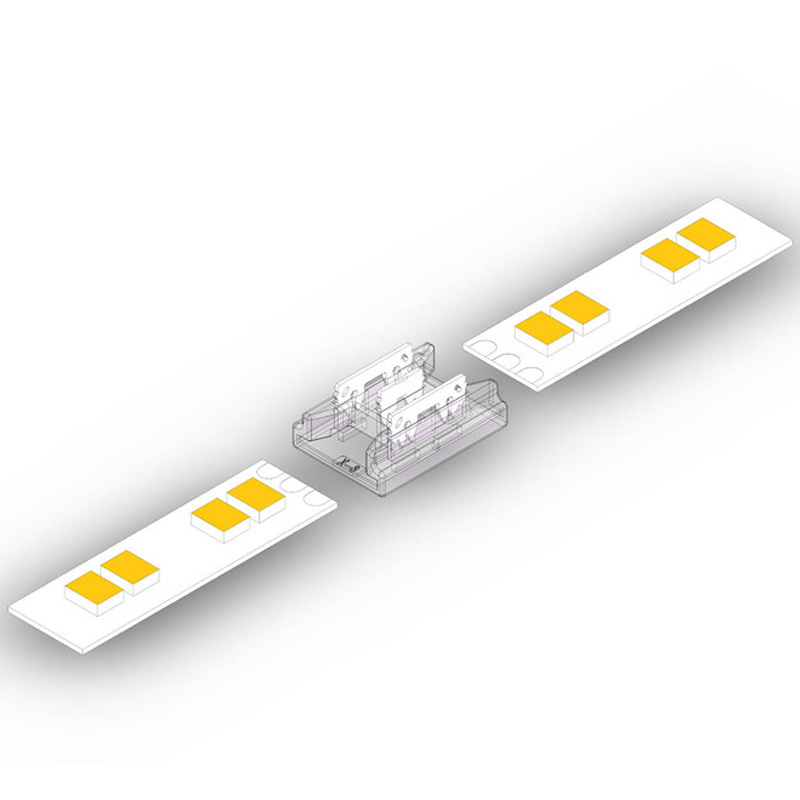

Installing LED strips has never been easier. Thanks to the quick pressure connection system, you can join

two sections of strip in seconds, without a soldering iron. Just insert the ends into the connector and press: the

IDC (Pierce to Contact) technology ensures stable and continuous electrical contact.

Compatible with 3 Pin SMD CCT LED Strips

This connector is designed to work with 10mm dual white (warm white + cool white) SMD LED strips .

width and with 3-pin configuration . Perfect for 12V and 24V CCT strips commonly used indoors.

3 in 1 Quick Connector

This quick connector offers a variety of functions, thanks to its ability to connect different configurations

of LED strips and power cables: from SMD LED Strip to SMD LED Strip; from LED Strips to Power Cable

power to bend the connection; from Power Cord to Power Cord. With an application

versatile , it is the best 3 Pin connector for dual color SMD light strips, offering flexibility and

ease of use for a wide range of lighting projects.

Ultra Slim Design

The slim profile makes it ideal for installations in small spaces, such as aluminum profiles, furniture, false ceilings or technical spaces.

It integrates perfectly without creating thicknesses or visual obstacles.

Quality Materials for a Long-Lasting Connection

Equipped with plated copper contacts , it guarantees safe transmission up to 5A / 24V , avoiding overheating

or interruptions. The high-strength plastic shell protects the connection over time.

Ideal for LED installations in:

  • Kitchens, under-cabinets and furniture.
  • Light frames and plasterboard cornices.
  • Display windows, showrooms and shops.
  • DIY projects with CCT LED strips.

Quick Connector for 3 Pin Dual Color COB LED Strips CCT.jpg

Quick Connector for 2 Pin COB and SMD LED Strips Single Color 10mm.jpg

Product Details
Tuya-CB3130

Data sheet

Material
ABS+Copper
Working temperature
-20℃-70℃
Working humidity
10% -90%
Protection Rating
IP20
Rated current
5A
Length
10mm
Suitable for LED Strips
CCT
Quantity of PINs
3 PINS
Operating Voltage
DC5V, 12V, 24V
LED Types Supported
CCT White Variable
