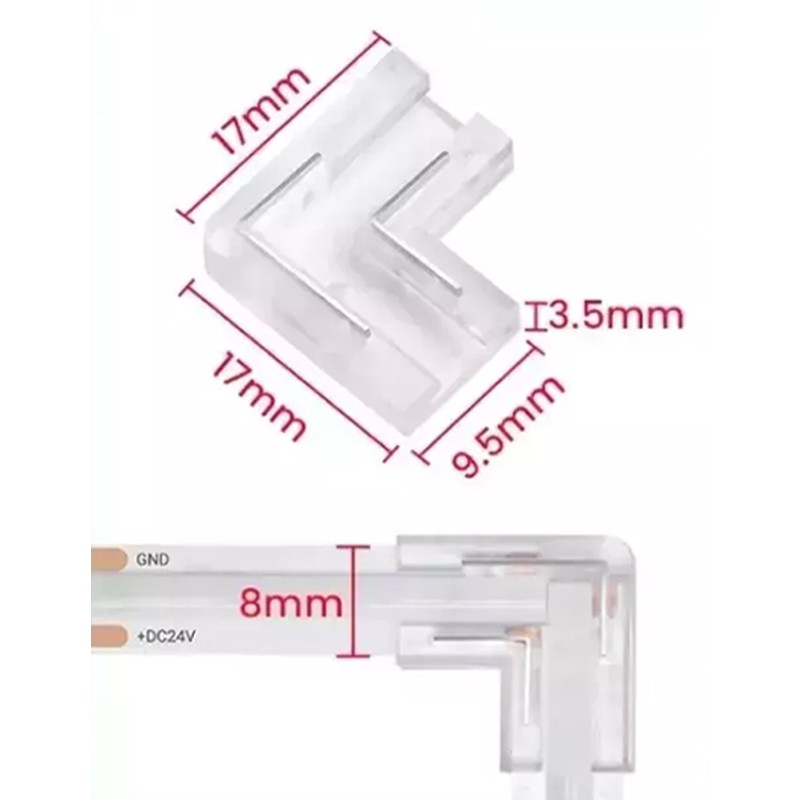

90° L-Shaped Quick Connector for 8 and 10mm Single Color COB LED Strips 2 Pin

This corner connector is designed to join two IP20 COB LED strips at a perfect 90° angle, giving you a solution

seamless to create seamless lighting effects. Thanks to Pierce to contact technology (IDC connection), it ensures a

stable and secure connection that does not interrupt the continuity of the LED light , maintaining an ultra-thin profile to fit into spaces

narrow as aluminum channels and grooves on furniture. With a unique angular shape design and high-quality materials, this

connector adds a touch of originality and ensures reliable performance. With its IP20 protection rating, it is suitable for

interior applications , making it ideal for lighting homes, offices and businesses. Whether you are working on a lighting project

domestic or commercial, this connector offers a flawless lighting experience, without shadows or interruptions.

L-shaped Quick Connector

With versatile application, it is the best 2PIn connector for flexible COB light strips

monochrome and common SMD flexible tapes with different quantities of LEDs, offering

flexibility and ease of use for a wide range of lighting projects.

The corner connector is available for 8mm and 10mm LED strips.

Ultra Thin

The ultra-slim, low-profile design allows this connector to fit perfectly even in spaces

narrower , such as aluminum channels and grooves on furniture. Made of high quality materials, such as

Copper pin, and compatible with high quality COB LED strips, this connector ensures reliable and long-lasting performance.

Its installation is a breeze

No complicated tools are required, just insert the LED strip into the connector and secure it with a light pressure.

Thanks to Pierce to contact technology (IDC connection), the conductor penetrates the PCB to conduct current between the

light strip segments, ensuring a stable and secure connection that does not interrupt the continuity of the LED light .

Wide Applications

Support high current up to 3~24V/ 5A, it is important to check whether the PCB light strip can

support 5A using thick conductor, otherwise it may cause damage to the light strip.

Compatible with

LED Strip COB 504 DC24V - LED Strip COB 528 DC24V

How to use the corner connector to connect COB strips?

1. Flip the connector over so that the movable cover side is facing outward.
2. Hold the corner of the connector with your left hand so that the connector has an upside-down L shape.
3. Hold the LED light strip sections in your right hand so that the LED part of the light strip is facing you.
4. First insert the light section through the top connector input downwards. Close the movable transparent cover.
5. Then insert the other light section through the other input until it is as close as possible to the first light strip. Close the other transparent cover to complete the connection.

How to use corner connectors for regular SMD 5050 light strip?

1. Please refer to steps 1-3 of COB strip installation above.
2. Insert two sections of the 5050 light strip into the ends of the connector so that the connector PIN lines up with the two solder points on the light strip.
3. Close the transparent cover to complete the connection.
