      €9.89
      Tax included
      rating No review at the moment
      • Constant-voltage inline touch dimmer: placed between a 5–24V DC controller and a (single-color) LED strip for ON/OFF and brightness control.
      • Compatible with our Tuya Smart controllers: ideal for automatic switching and lighting scenes on steps, corridors, and passageways.
      • Simple touch control: short tap = on/off; long press 1–6 s = dim up/down with 0–100% range.
      • 4 selectable PWM frequencies: 125 Hz / 500 Hz / 2000 Hz (default) / 8000 Hz to optimize strip performance.
      • Quick PWM setting: within 3 s of power-up, press ON/OFF 3–6 times (LED blinks to confirm).
      • Plug-and-play Dupont connectors: Dupont male in (power) + Dupont female out (to LED strip), 2.54 mm pitch.
      • Power and current: output up to 2.5A (max 60W @ 24V; 12.5–60W).

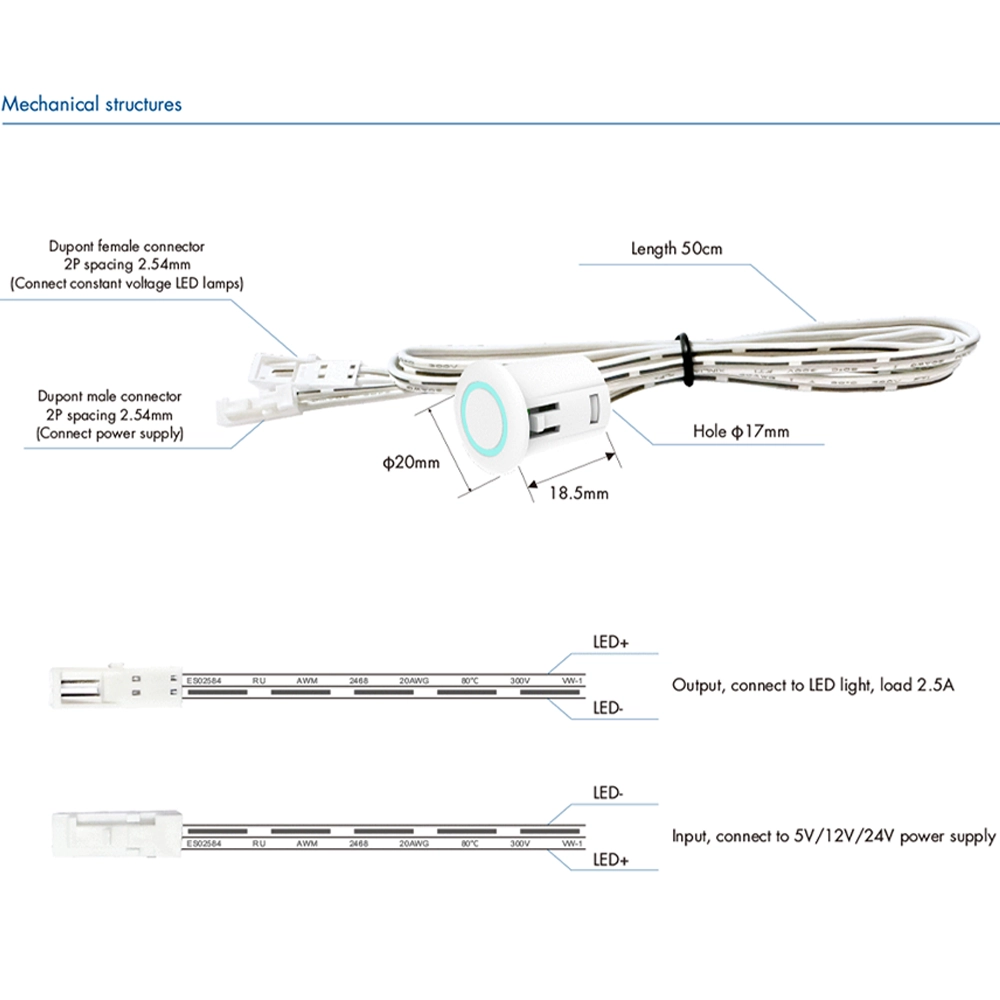

      • Clean recessed installation: hole Ø17 mm, drilling depth 18.5 mm, head Ø20 mm, dual-sided snap mounting.
      • Included cable: 50 cm length for tidy in-cabinet wiring.
      • Reliable indoors: operating temperature -30°C ~ +50°C and reverse polarity protection.

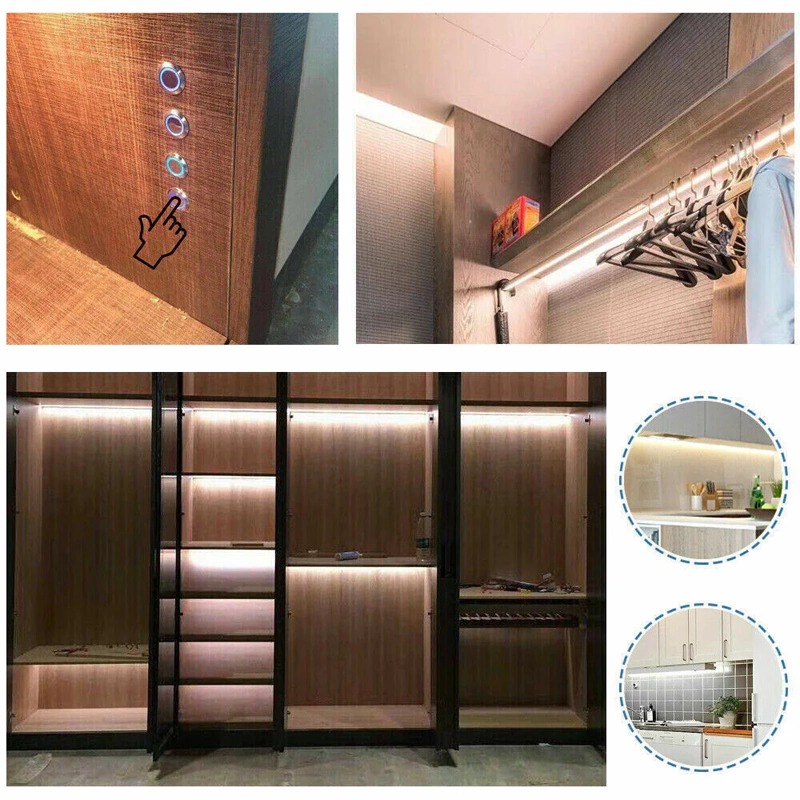

      • Ideal for furniture and displays: perfect for cabinets/wardrobes, showcases, and wine coolers with discreet touch control.
      Quantity :
      Not sure it works with your home?
      Close
      Write your review
      • Secure payments: Secure payments: cards, PayPal, bank transfer, and installments
      • Delivery within 48 hours: Delivery within 48 hours: Free shipping on orders over €150 across Europe
      • Easy 14-day returns: Easy 14-day returns: follow the steps to get your refund

      Buy it with

      • Mini Inline Touch Dimmer Switch Flush Mount for Single Color LED Controller 5–24V DC
      • +
      • COB LED Strip 480 Reel to Reel DC24V Waterproof 5 Meters
      • +
      • Tuya Smart WiFi + RF + 6-Channel Sensor Dimmer Control Unit for 12/24V LED Strips
      • €50.69-3 %
        Total price: €49.17
      info One of these items has different availability  Show details

      EC-AV: the “invisible” touch dimmer that transforms your LED strips

      EC-AV is the perfect “inline” touch dimmer switch when you want modern, discreet and clean light control for constant voltage single-color LED strips . It is installed directly in-line between the 5–24V DC power supply/output and the LED strip , so you can manage everything with a simple gesture: short touch = ON/OFF , long touch = smooth 0–100% dimming to switch in an instant from full light to mood lighting. Regulation is via PWM , with 4 selectable frequencies (125 / 500 / 2000 Hz default / 8000 Hz) to optimize performance based on your installation. It supports up to 2.5A (up to 60W @ 24V ) and is designed for a tidy installation: recessed head with Ø17 mm hole and snap -on fixing, plug&play wiring via Dupont connectors (INPUT from the DC power supply/output, OUTPUT to the strip) and pay attention to the +/– polarity for correct operation. It is compatible with many 5–24V constant voltage control units/controllers , including our Tuya smart controllers when the output to the strip is constant voltage. Ideal for furniture, cabinets and wardrobes, display cases, wine cellars, under-cabinet kitchen units, shelves and niches : a small component that makes lighting more comfortable, elegant and “premium” from the first touch.

      Touch control and dimming for furnishing lights

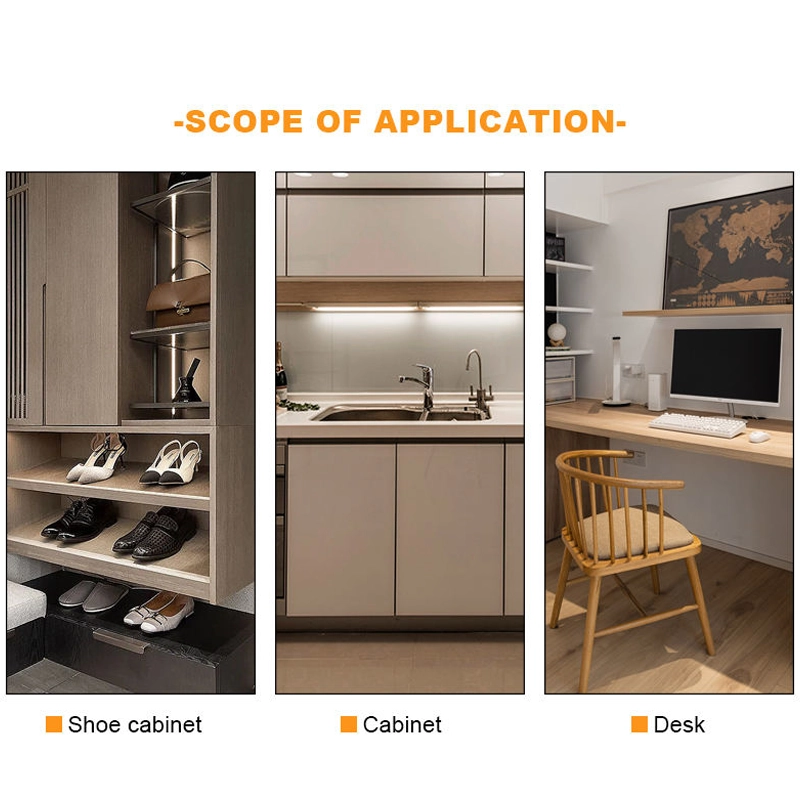

      With EC-AV you can control your LED strips with a single gesture: a short tap for ON/OFF and a long tap to adjust the brightness from 0–100% , so you can instantly switch from “task” light to mood lighting. It is ideal for wardrobes and walk-in closets , kitchens and under-unit units , shelves/display cabinets and desk stations, wherever you want a discreet and modern control. It can be flush-mounted (Ø17 mm hole) and works in-line with 5–24V constant voltage LED systems: simply insert it between the power supply/control unit and the single-color LED strip for clean and professional control.

      Touch dimming 0–100% with PWM

      EC-AV regulates brightness via PWM , keeping the system at a constant voltage and varying the light smoothly: a short touch turns ON/OFF, while a long touch increases or decreases the brightness up to the range of 0–100% . To adapt to different LED strips and reduce any flickering effects, you can also select the PWM frequency between 125 Hz, 500 Hz, 2000 Hz (default) or 8000 Hz , always obtaining precise and discreet control of the lighting.

      Compatibility with control units/controllers

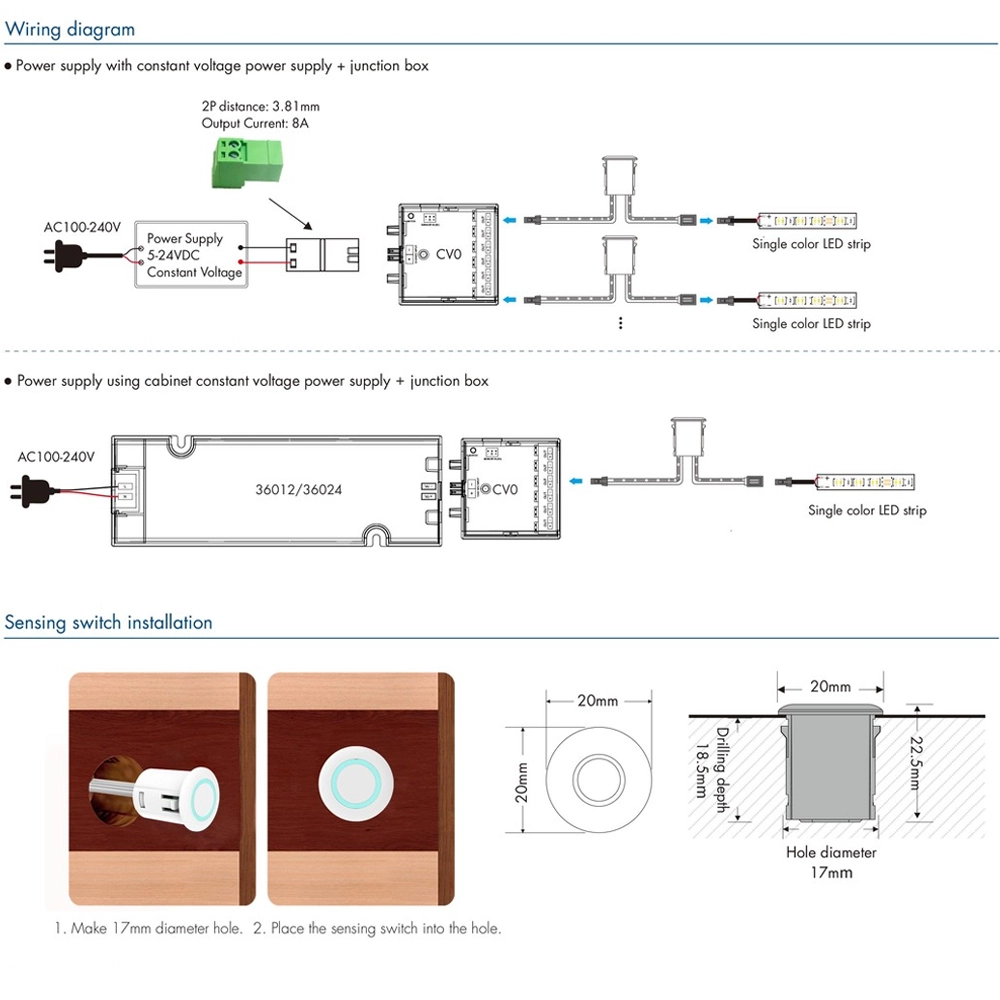

      EC-AV is an “inline” constant voltage touch dimmer for single-color LED strips. It is installed between the 5–24V DC output (power supply or constant voltage control unit/controller ) and the LED strip , so you can manage ON/OFF and 0–100% dimming directly from the touch. Precisely because it works “inline”, it is compatible with many control units/controllers on the market that power single-color strips at a constant voltage of 5–24V , including Tuya smart controllers when the output to the strip is at constant voltage. The connection is plug & play with 2-pole Dupont connectors with a pitch of 2.54 mm ( male IN → DC power/output, female OUT → LED strip). The limits must be respected: max 2.5A and max 60W @ 24V.

      Tuya CV1(WT) WiFi 6-Channel Controller for 12/24V LED Strips Tuya CV1(WT) WiFi 6-Channel Controller for 12/24V LED Strips Preview

      Tuya Smart WiFi + RF + 6-Channel Sensor Dimmer Control Unit for 12/24V LED Strips

      €19.90
      EC-A 5V Touch Sensor PWM for LED Controller – 0–100% Dimmer EC-A 5V Touch Sensor PWM for LED Controller – 0–100% Dimmer Preview

      5V DC Flush Mount Touch Dimmer Switch for Staircase Lighting Controller

      €9.89
      Ultra Slim COB LED Strip 3mm 480LED per Meter DC12V 5 Meters Ultra Slim COB LED Strip 3mm 12V – High Efficiency 85lm/W Preview
      -€10.00

      Ultra Slim White COB LED Strip 3mm 480LEDs per Meter DC12V 5 Meters

      €39.90 €29.90

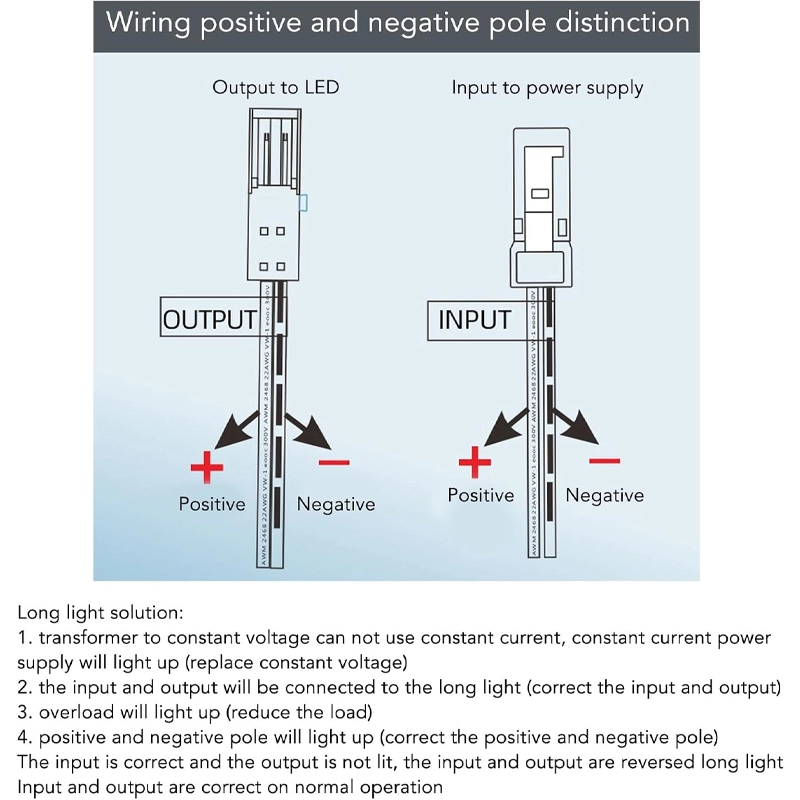

      Connector polarity and direction (INPUT/OUTPUT)

      EC-AV has two separate connectors: INPUT is connected to the constant voltage DC power supply/output (5–24V) , while OUTPUT is connected to the single-color LED strip . It is important to respect the + and – polarities (indicated on the wires): if you invert the poles or swap input with output , the strip may not turn on . For correct operation, use only constant voltage power supplies/drivers (not constant current) and stay within the load limits of the device.

      Frequently Asked Questions

      It works inline with a 5–24V DC constant voltage system (power supply or controller with DC output). In practice, you insert it between the power supply/controller and the strip. It is compatible with many commercial control units and also with our Tuya smart control units.

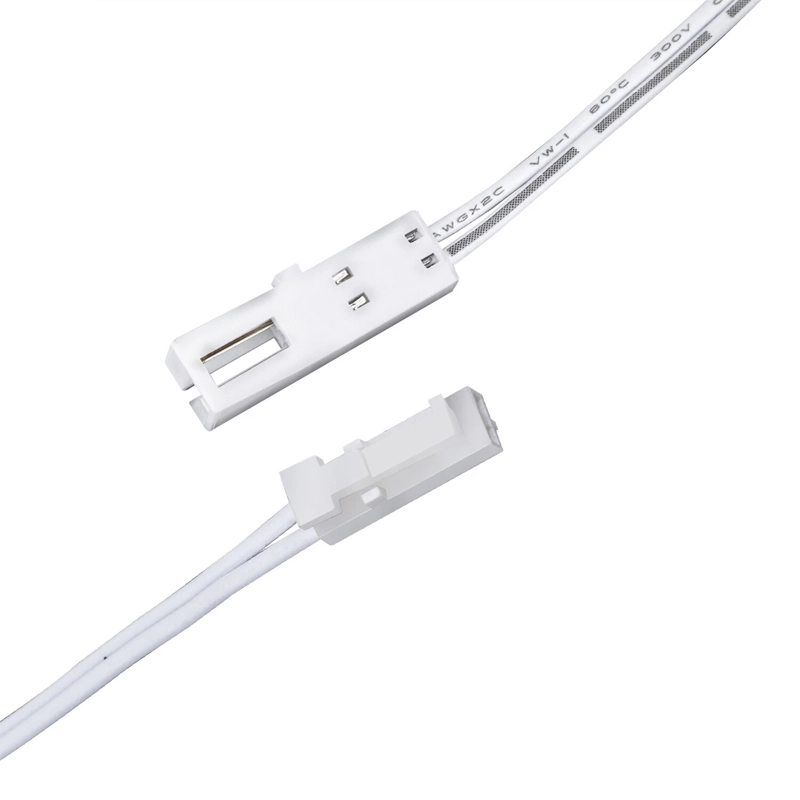

      2-pole (2P) Dupont connectors, 2.54 mm pitch: male Dupont IN and female Dupont OUT.

      Short touch: ON/OFF

      Long touch: 0–100% dimming (brightness increase/decrease)

      Within a few seconds of powering on, press the ON/OFF button several times in sequence (the device confirms with flashes).

      Max 2.5A and max 60W @ 24V.

      Low voltage single-color strips with constant voltage power supply.

      Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.

      Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
      Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.

      Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.

      • For the EU, with UPS Standard the average times are 2-3 working days .

      • With DHL Express, usually 1-2 business days .

      Tuya
      Tuya-34002

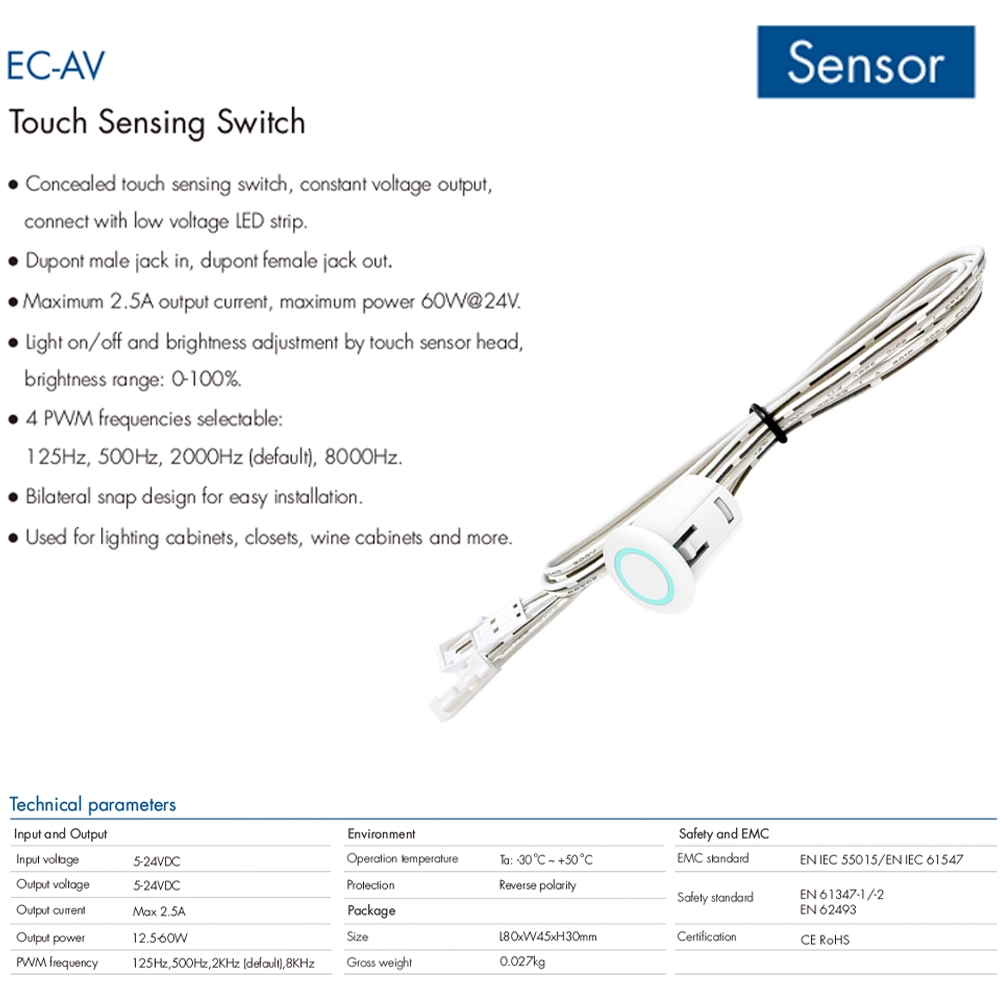

      Data sheet

      Working temperature
      From -30°C to +50°C
      Voice Control
      None
      Dimensions
      20x22.5 mm
      input voltage
      5-24V DC
      Output voltage
      5-24V DC
      Protection Rating
      IP20
      Connector
      2-pin (2P) Dupont, 2.54 mm pitch
      Dimming range
      0-100%
      Output current
      2.5A Max
      Output power
      12.5-60W
      PWM frequency
      4 selectable PWM frequencies: 125 Hz, 500 Hz, 2000 Hz (default), 8000 Hz.
      LED Types Supported
      Monochrome
      Ideal for Automation
      Corridors
      Furniture
      Stairs
      Wardrobes
      Works with
      No app (accessory)
      Hub required
      None (Wi-Fi / standalone)
      Ideal for
      Lights & LED
      Home Assistant integration
      Not integrable

      Specific References

      UPC
      844504407257
      EAN13
      8445044072576
      MPN
      Tuya EC-AV
