12V DC Switching Power Supply Transformer and Converter from 200-240V AC to 12V DC

Tuya-85022-60W-12V

Stabilized Transformer - Converter from 200-240V AC to 12V DC

Power
€9.90
Tax included
Delivery in 24/48 hours
Quantity

Order it before 7 hours and 20 minutes and receive it between tomorrow and Monday 2 with SDA

Close
Description

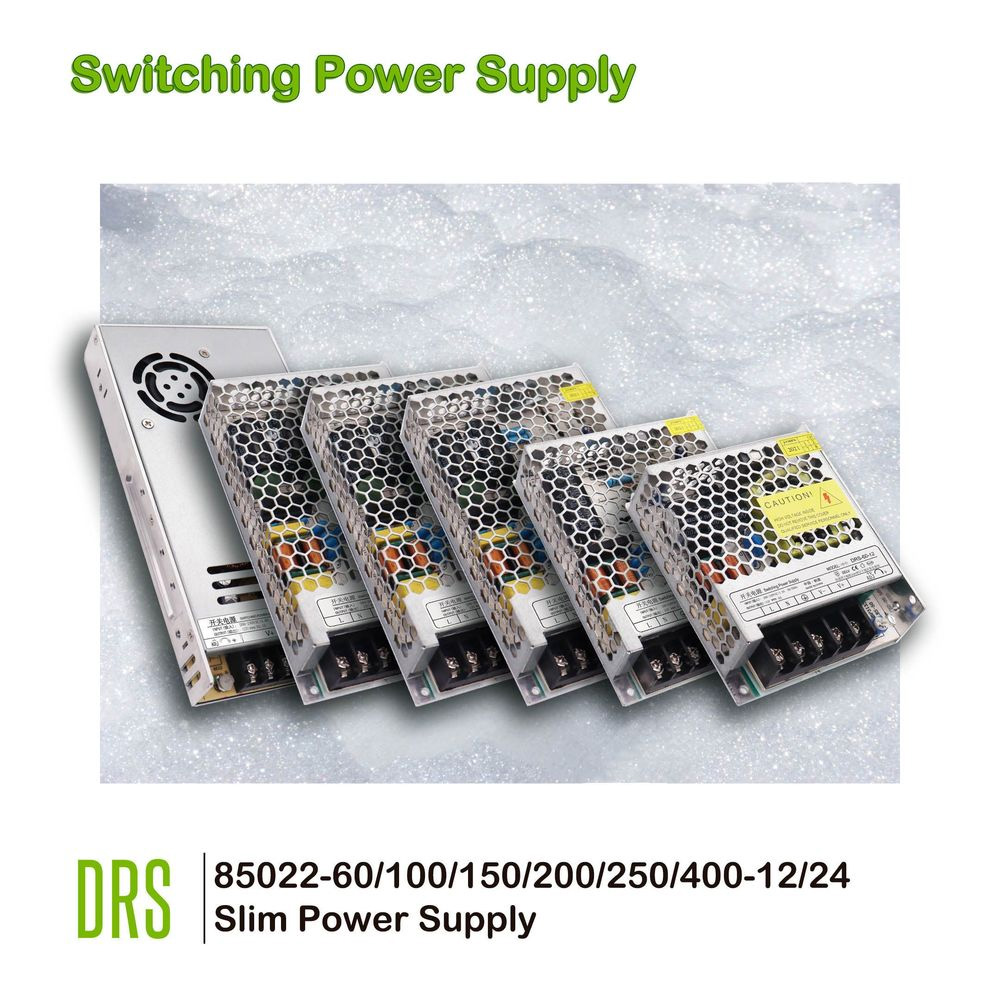

Switching Power Supply Stabilized Voltage Transformer AC 200-240V to DC 12V

The AC/DC switching power supply is a professional solution for safely and efficiently transforming

alternating current from 200–240V AC into a direct voltage of 12V DC . It is the ideal product for powering

electronic devices , LED lighting, LED strips , industrial equipment and much more.

Available in six power variants – 60W, 100W, 150W, 200W, 250W and 400W – to suit every type of

technical requirement. Designed to ensure stable and long-lasting operation , this power supply

switching is equipped with advanced protections against overload, overvoltage, short circuit and overheating.

The metal frame with ventilation holes helps heat dissipation ,

while the fan (in the 400W models) ensures active cooling for superior efficiency .

Main Applications

Ideal for powering LED strips , flexible LED panels, Zigbee and WiFi smart controllers ,

security cameras , home automation systems, wired sensors , home automation devices,

LED displays and small systems for decorative and professional lighting .

Easy Installation

The power supply is equipped with screw terminals for direct connection and can be easily fixed

inside electrical panels or on flat surfaces thanks to the compact structure and mounting holes .

Output Voltage Regulation

The power supply is equipped with a +V ADJ trimmer for fine adjustment of the output voltage , which allows you to

precisely adapt the voltage (±10%) to the needs of the connected load. This is particularly

useful for LED applications , smart devices or electronic systems that require a stable and calibrated voltage.

High Quality Materials for Maximum Reliability

Made of selected electronic components and wear-resistant materials, this switching power supply

ensures stable and long-lasting performance even under prolonged use.

The galvanized metal frame with perforated grille ensures physical protection and optimal ventilation,

reducing the risk of overheating. Each unit is tested to ensure electrical reliability,

safe isolation and reduction of electromagnetic interference.

Wide Range of Powers Available for Every Need

Available in six power variants, this 12V DC switching power supply covers a wide range of applications,

from home automation to professional LED lighting. The available versions are:

60W – 5 Amps

100W – 8.3 Amps

150W – 12.5 Amps

200W – 16.7 Amps

250W – 20.8 Amps

400W – 33 Amps

Ideal Areas for Installation

  • Power supply for LED strips and modules.
  • Video surveillance systems.
  • Industrial automation systems.
  • Outdoor and indoor lighting.
  • Power supplies for displays and advertising panels.
  • Electrical and electronic laboratories.

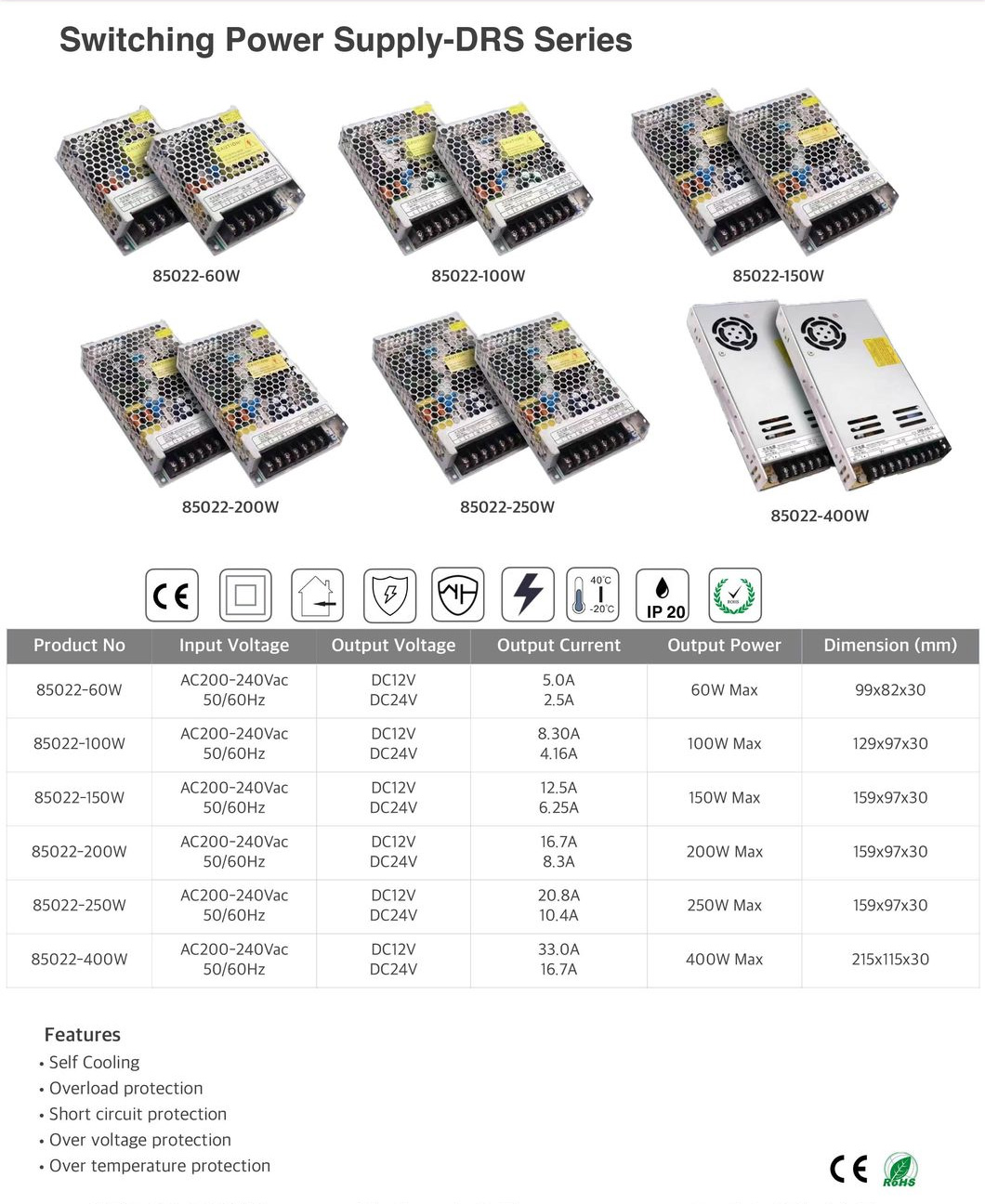

Product Details
Tuya-85022-60W-12V

Data sheet

Alimentazione
AC200-240Vac 50/60Hz
Working temperature
-20°C to 40°C
Dimensions
60W version - 99x82x30 mm
Dimensions
100W version - 129x97x30 mm
Dimensions
150W version - 159x97x30 mm
Dimensions
200W version - 159x97x30 mm
Dimensions
250W version - 159x97x30 mm
Dimensions
400W version - 215x115x30 mm
Output voltage
DC12V
Protection Rating
IP20
Output current
100W Version - 8.3 Ampere
Output current
400W version - 33 Ampere
Output current
250W Version - 20.8 Ampere
Output current
200W Version - 16.7 Ampere
Output current
150W version - 12.5 Ampere
Output current
60W version - 5 Ampere
Output power
60W
Output power
100W
Output power
150W
Output power
200W
Output power
250W
Output power
400W

Specific References

ean13
9559582313998
upc
955958231399
mpn
Tuya 85022-60W-12V
