Expert4House – Smart Home Automation

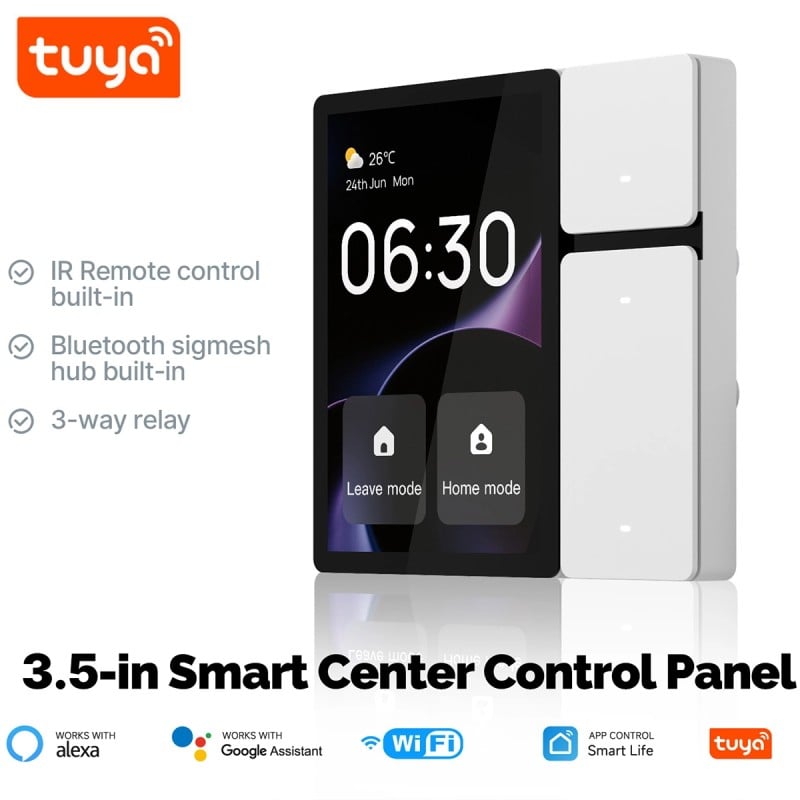

Tuya 3.5" Smart WiFi Touch Panel for Home Automation with Relay, Bluetooth Gateway and IR
€139.90
Tax included
No review at the moment
- 3.5-inch touchscreen: displays the time, date and weather and lets you control your home's Tuya devices, with one-touch scenes such as “Leave mode” and “Home mode” always within easy reach.
- Three lighting relays: the L1, L2 and L3 outputs control three lighting circuits rated up to 200 W each, with a maximum of 600 W in total, just like a three-button light switch.
- Three physical buttons: next to the screen are three customizable physical buttons for your most-used functions, which you can press without accessing the screen.
- Built-in IR remote control: the infrared emitter controls air conditioners, TVs and other IR remote-controlled appliances from the panel or the app.
- Bluetooth Sigmesh gateway: acts as a Bluetooth Sigmesh gateway for your home's Tuya Bluetooth devices, supporting up to 128 connected devices without a separate hub.
- Scenes and automations: launch scenes and control lights, sockets, roller shutters and other Tuya devices from the screen: the panel supports over 110 device types.
- Cameras and video intercom: view video from Tuya cameras on the screen and answer video intercom calls without picking up your phone.
- Door unlocking: when someone rings the doorbell, unlock your Tuya smart lock directly from the panel's screen with a single gesture.
- Alexa and Google Assistant: works with Amazon Alexa and Google Assistant: the panel does not have a built-in assistant, so a smart speaker is required for voice commands.
- Tuya Smart or Smart Life app: configure the panel, relays and scenes using the Tuya Smart or Smart Life app and control everything even when you are away from home.
- Power supply with live and neutral: powered by 100-240 V AC, 50/60 Hz with live and neutral wires; the USB-C port is for temporary emergency power only.
- 86 × 86 mm format: the front panel measures 86 × 86 mm and protrudes 11.5 mm from the wall; it is made of tempered glass and flame-retardant polycarbonate, with a recessed housing at the rear.
- 2.4 GHz WiFi: connects to your home router via 2.4 GHz WiFi (802.11 b/g/n). Operates from 0 to 40 °C, with 5 to 90% non-condensing humidity.
- Installation: must be wall-mounted by an electrician with the power switched off: live, neutral and lighting wires must be available in the recessed wall box.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
3.5-inch Tuya touch smart panel with three relays, IR remote control and Bluetooth gateway
The 3.5-inch Tuya smart panel mounts to the wall instead of a light switch and combines all your home controls in a single device. The touchscreen displays the time, date, and weather, triggers scenes , and controls lights, sockets, blinds, cameras, and other Tuya devices. Inside, there are three relays for three light lines up to 200W each, an IR remote control for air conditioners and televisions, and a Sigmesh Bluetooth gateway for Tuya Bluetooth devices. Next to the screen are three customizable physical buttons. It can be configured using the Tuya Smart or Smart Life app, connects to your 2.4 GHz home Wi-Fi, and works with Amazon Alexa and Google Assistant through a smart speaker. It requires a 100-240V power supply with phase and neutral wires.
3.5-inch touchscreen with slim bezels and visible clock
The 3.5-inch touchscreen takes up almost the entire left side of the front, with thin bezels, and leaves room for three physical buttons. The main screen features the time, date, and weather, with two scenes always at your fingertips, such as "Leave mode" when you leave and "Home mode" when you return. Tapping the screen takes you to the device and scene pages. The front is made of tempered glass and fireproof polycarbonate. Themes also include a flip clock , which displays large hours and minutes and is easy to read even from a distance, such as from the couch or bed.
Works with Alexa and Google: voice requires a speaker
The panel works with Amazon Alexa and Google Assistant , but doesn't have a built-in voice assistant. To control the panel and connected devices with your voice, you need a smart speaker, such as an Echo or Google Nest, in the same home. After connecting your Tuya or Smart Life account to the assistant, you can turn the lights connected to the three relays on and off with your voice, without touching the panel or your phone. The models with Alexa built-in are larger, different panels: in this 3.5-inch one, the voice still comes from the speaker, while the screen remains the wall control for the whole family.
Flood, smoke and SOS alarms directly on the screen
When a Tuya sensor detects a problem, the panel displays the alarm on the screen and sounds a tone, so you can be notified without looking at your phone. It works with flood and smoke sensors, as well as SOS buttons connected to the app: the type of alarm, location, and time are displayed on the screen. The panel doesn't contain any sensors of its own, so it must be paired with the devices that monitor your home. You'll find them among the water sensors and valves and among other sensors and detectors compatible with the Tuya Smart or Smart Life apps, which you can place wherever you need them.
Sigmesh Bluetooth Gateway for 128 Devices and IR Remote
The panel acts as a Sigmesh Bluetooth gateway : it connects up to 128 Tuya Bluetooth devices, such as relay modules, switches, and remote controls, without a separate gateway. With the integrated infrared remote control , you can control air conditioners, televisions, fans, and other IR-controlled appliances in the room: for example, you can set the temperature and air conditioning mode on the screen. The IR emitter works in line of sight, so the appliances must be in the same room as the panel. The panel does not have a Zigbee radio: for Zigbee devices, you need a gateway such as the Tuya Zigbee gateway with LAN port .
Up to 200 devices on the panel and themes to choose from
From the control panel, you can access up to 200 home devices , each with its own page: lights with brightness and color, curtains, air conditioners, water heaters, aroma diffusers, and other devices in the Tuya app. This way, you have the controls you use most often right on the wall, without having to search for your phone. For the main screen, choose from different themes , with different backgrounds and clocks, from a mountain-themed one to a flip clock. If you need a larger screen or one with an integrated assistant, among the panels and gateways in the smart hub and gateway category you'll also find 4-, 6-, and 10-inch models.
Three customizable physical keys with soft light indicator
Next to the screen are three physical buttons , convenient when you need instant control without opening a page. From the app, in the button settings, you can choose the function of each: control the relay, start a scene, shortcut to a device, open the camera, or access the panel settings. Each button has a small, dim light indicator , which helps you find it in the dark at night and shows whether the connected line is on or off. This way, the panel remains easy to use even for those who don't like screens, like a normal three-button switch, but with additional functions.
Three relays for lights and power supply with phase and neutral
The panel has three relays with L1, L2, and L3 outputs: connected to three light lines, they replace a three-button switch, with a load of up to 200 W per line and 600 W in total. It is powered by 100-240 V AC, 50/60 Hz with phase and neutral , which must arrive in the flush-mounted box together with the light wires. On the back there is also a USB-C port, to be used only as a temporary emergency power supply: for everyday use, the panel is always connected to the mains with phase and neutral. Installation must be performed by an electrician, with the system turned off.
Control room by room or the entire house from a single panel
With one or more panels, you can control your home room by room or the whole house at once : in one room, you can turn on only the lights in that room, while in the entrance hall, you can turn everything off with a scene before leaving. Rooms and scenes are created in the Tuya Smart or Smart Life app and then used from the panel. The panel's operating system is designed to quickly switch between pages, with fluid animations. You can install multiple panels in different parts of the house: they all see the same devices and the same scenes, and each panel additionally controls the three relays and IR devices in its room.
Technical data, dimensions and functions of the three physical buttons
Frequently Asked Questions
Does the panel have Alexa built in?
No. It works with Amazon Alexa and Google Assistant, but voice commands require a smart speaker.
Is neutral needed?
Yes. The panel is powered by 100-240V with phase and neutral. The USB-C port is only for temporary emergency power.
How much load can the relays handle?
Up to 200W for each of the three outputs L1, L2 and L3, with a maximum of 600W in total.
Does it work with Zigbee devices?
Not directly: the panel does not have a Zigbee radio. Zigbee devices can be controlled from the panel if they are connected to the Tuya app via a Zigbee gateway.
How many Bluetooth devices does it connect as a gateway?
Up to 128 Tuya Bluetooth Sigmesh devices. Up to 200 devices can be controlled from the panel.
What does the IR remote control control?
Air conditioners, televisions, fans and other appliances with infrared remote control, which must be in the same room as the panel.
Can I see the cameras and video intercom?
Yes. On the screen you see the video from the Tuya cameras, answer the video intercom and unlock the Tuya smart lock.
Does it work with 5GHz WiFi?
No. It only connects to 2.4 GHz WiFi networks (802.11 b/g/n).
What functions can the three buttons have?
From the app, choose for each button: relay control, scene, shortcut to a device, camera, or panel settings.
What are the dimensions?
The front measures 86 × 86 mm and protrudes 11.5 mm from the wall; with the built-in body the total thickness is 35.5 mm.
Tuya-TPP06-EU
Data sheet
- Power supply
- AC 100-240V 50/60Hz
- Working temperature
- 0ºC-40ºC
- Working humidity
- 5%~90%RH, non-condensing
- Voice Control
- Amazon Alexa and Google Home
- Mobile application
- Tuya Smart or Smart Life
- Dimensions
- 86x86x36mm
- Communication Protocol
- Bluetooth
IR Infrared
Wifi - Number of Channels
- 3
- Maximum load current
- 200W per Channel - Max 600W Total
- Screen size
- 3.5 inch
- Wifi protocol
- IEEE 802.11 b/g/n 2.4GHz
- Mounting
- 86×86 Box or Round Box
- Works with
- Amazon Alexa
Google Home
Home Assistant
Tuya / Smart Life - Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Lights & LED
Scenes & automations - Home Assistant integration
- Cloud integration
- Acts as hub for
- IR hub (infrared blaster)
Tuya Bluetooth gateway (for remote control) - Neutral wire
- Neutral wire required
Specific References
- UPC
- 471328038594
- EAN13
- 4713280385946
- MPN
- Tuya TPP06-EU
