Beca BHT-3000GCNL Modbus-RTU Thermostat for Boiler Heating
€59.90
Tax included
No review at the moment
- Modbus-RTU protocol over RS485: ideal for integration with home automation systems, BMS, and supervision.
- Specific for boilers (water/gas boiler): with volt-free contact and load up to 5A (model “GC”).
- Weekly scheduling: 5+1+1 with 6 time periods per day for comfort and energy savings.
- Precise temperature control: ±1°C to keep your home climate stable.
- Wide range: setpoint 5–35°C (ambient reading range up to 5–99°C).
- NTC sensor: option to use internal and/or external sensor (depending on configuration).
- Large backlit screen and touch keys: easy to read even in the dark and intuitive to use.
- One-touch manual override: quickly adjust temperature without changing the schedule.
- Universal power supply: 95–240VAC (50/60Hz) with consumption < 1.5W.
- Standard installation: fits 86mm box or 60mm European round box, with key lock and configurable protection/temperature limit functions.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
Beca BHT-3000 Dry Contact Thermostat - Boiler Control with Modbus RTU RS485
Make your boiler smart in a simple and professional way with Beca BHT-3000GCNL , the Modbus RTU thermostat on RS485 designed for those who want comfort, control and total integration . The dry contact control guarantees maximum compatibility with most gas/water boilers, while the RS485 connection makes it perfect for advanced systems: home automation, PLCs and BMS systems can manage setpoints, statuses and temperatures from the central unit, even across multiple zones. At a glance it is already “premium”: a clear and responsive color touch display , modern lines and an ultra-thin profile (about 13 mm visible) that enhances any environment, from modern homes to hotels. Depending on the configuration, you can also use the NTC probe for even more precise management. Furthermore, in the event of a blackout, the settings are maintained so you can restart without wasting time. Quick installation on 86 mm or 60 mm European box : an ideal solution for those looking for a thermostat that is beautiful to look at, easy to use and ready for professional systems .

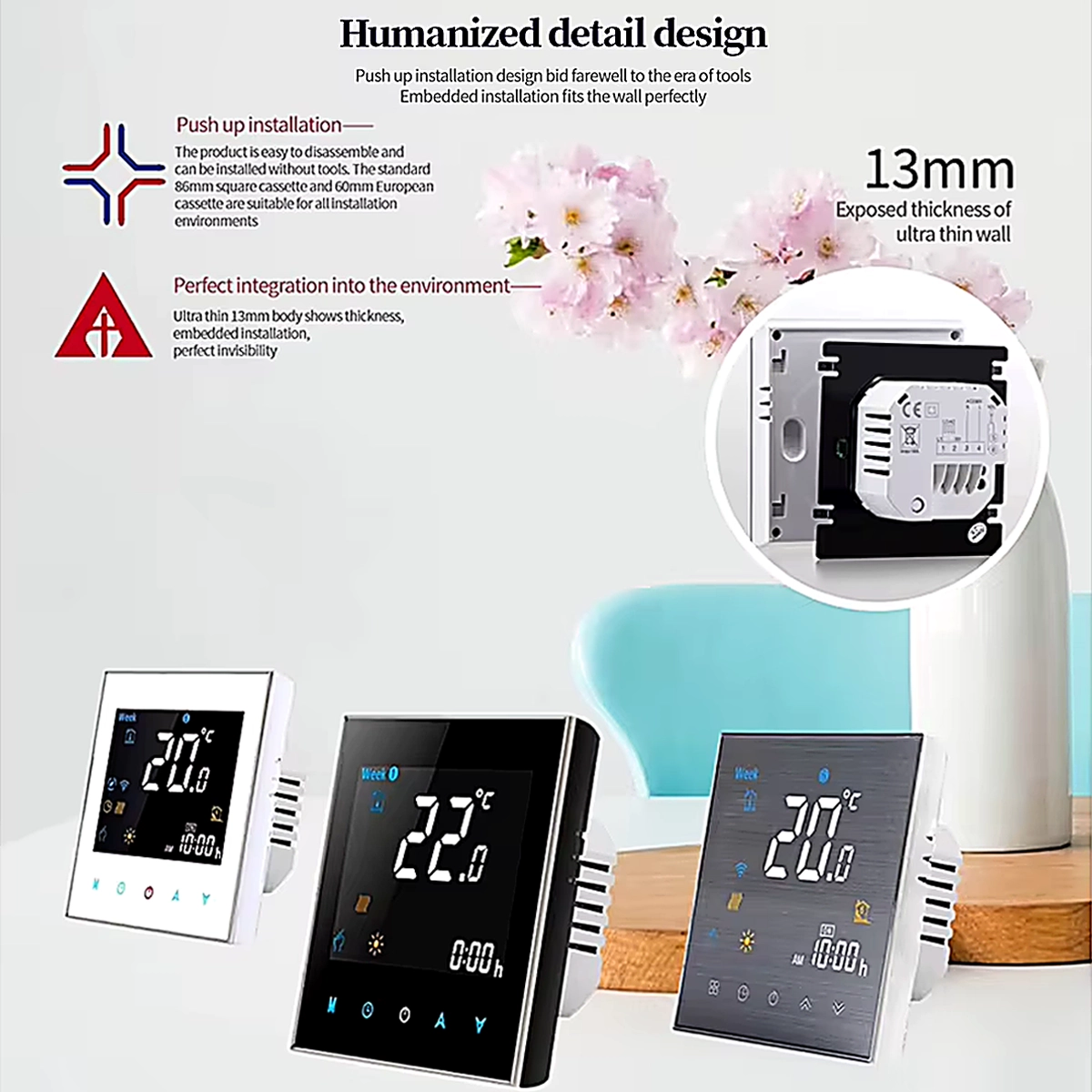

Ultra-thin design - flush-mounted installation
This thermostat is designed for clean, modern integration: once mounted on the wall, only a thickness of approximately 13 mm remains visible , for an elegant and discreet “ultra thin” effect. Installation is push-up , making it quicker and tidier, and the recess is designed to fit standard 86 mm boxes and European 60 mm round boxes , making it compatible with most systems.
Always stable comfort
The Beca BHT-3000 integrates a high-performance chip designed to ensure fast, precise and reliable temperature control. In the event of a power outage , the memory function helps maintain saved settings (setpoints and configurations), so when power returns the thermostat resumes working stress-free and without having to reset everything. The result? Constant heat, fewer interruptions and greater peace of mind , also ideal for systems where reliability is essential (home, office, hospitality facilities).
3.2" LCD display + touch controls

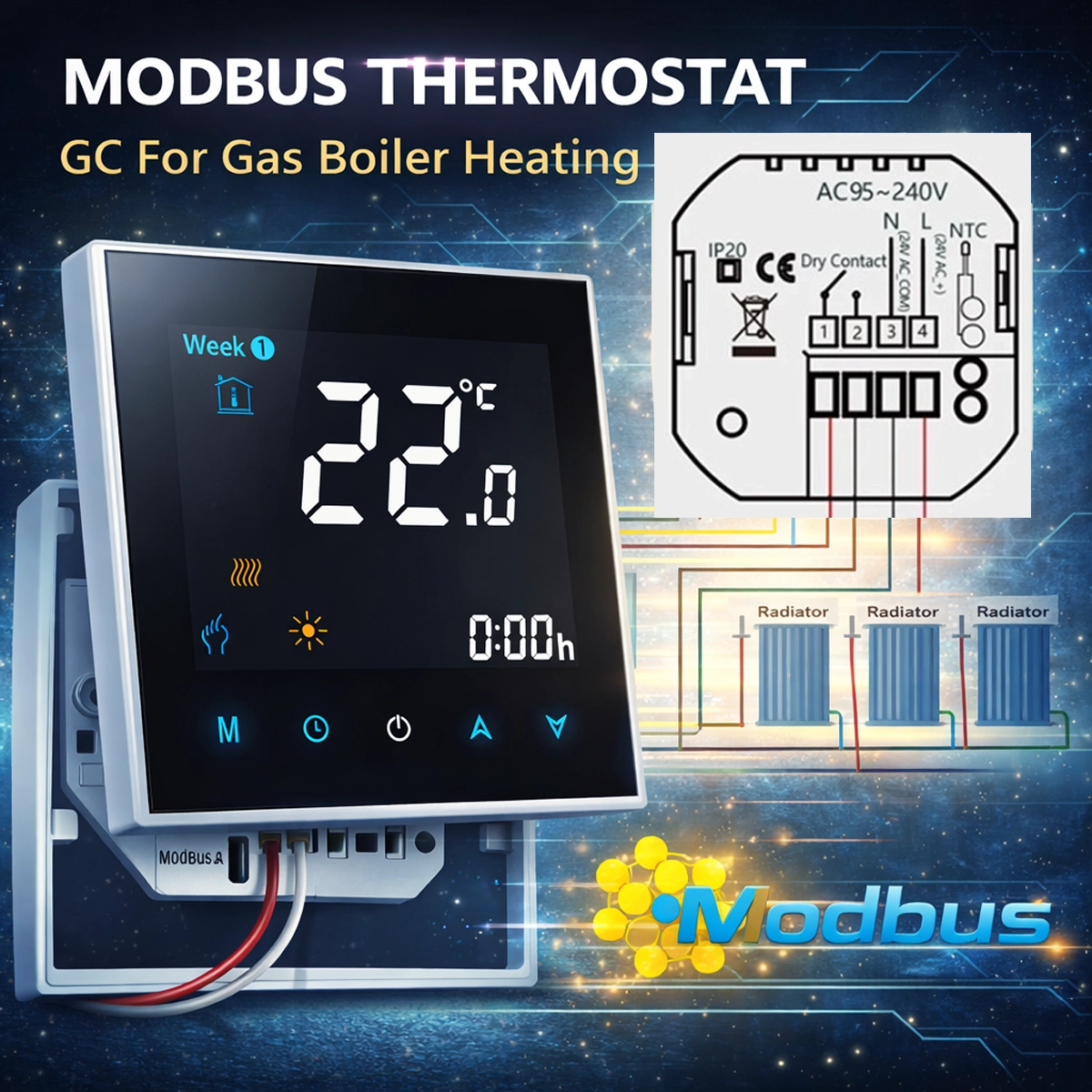

RS485 Modbus connections + boiler clean contact
The Beca BHT-3000GC Modbus RTU RS485 thermostat is designed for the reliable control of boiler heating (gas or water) , with simple wiring and advanced management via supervision. It is powered directly at 230V (AC95–240V) by connecting phase and neutral to the L/N terminals, while the command to the boiler is via a Dry Contact output (clean contact) , ideal because it manages switching on and off by opening/closing the contact, ensuring wide compatibility with most boilers. Depending on the configuration, it is also possible to connect a dedicated NTC probe , useful when a more precise temperature reading is required or in specific applications. The real strong point is the Modbus RTU communication on RS485 via terminals A+/B- , which allows the thermostat to be integrated into home automation systems, PLCs or BMS systems to read statuses and temperatures and set setpoints directly from a central control. In Modbus, the device works as an RS485 slave , with typical parameters of 9600 bps, 8N1 and an address range of 1–255 , using standard read and write commands; temperatures are often managed in x10 format for more accurate regulation. For safety, 230V connections must be made with the voltage switched off and by qualified personnel.

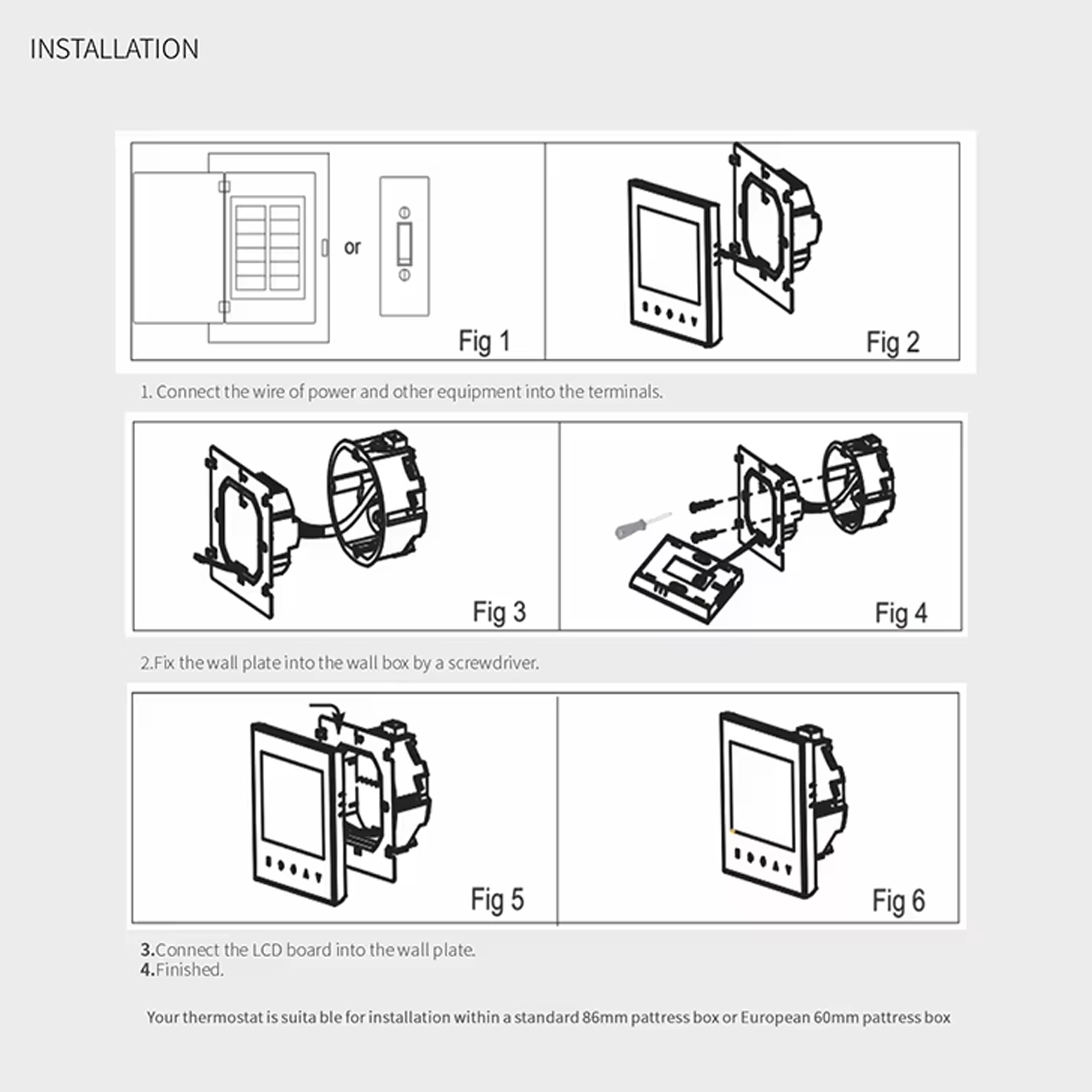

Quick installation on 86 mm or 60 mm box
Frequently Asked Questions
A dry contact is a "dry" output that opens/closes a contact without sending its own voltage to the boiler. It's the safest and most common way to control the boiler's on/off (or heat request).
For basic use, no hub is needed: the thermostat works autonomously. If you want supervisory management, you'll need an RS485 master (e.g., PLC/BMS or RS485 gateway) to communicate via Modbus RTU.
Yes. Thanks to Modbus RTU communication on RS485, it is ideal for advanced systems where you want centralized control, status/temperature reading and setpoint management from a home automation system or BMS.
The thermostat is designed to be reliable and can retain its settings to restart properly when power returns, avoiding having to reset everything.
Absolutely yes: it is a widely used solution in professional contexts because it combines modern design, ease of use and above all Modbus integration for centralized management and multi-zone control.
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Beca-BHT-3000GCNL-Black

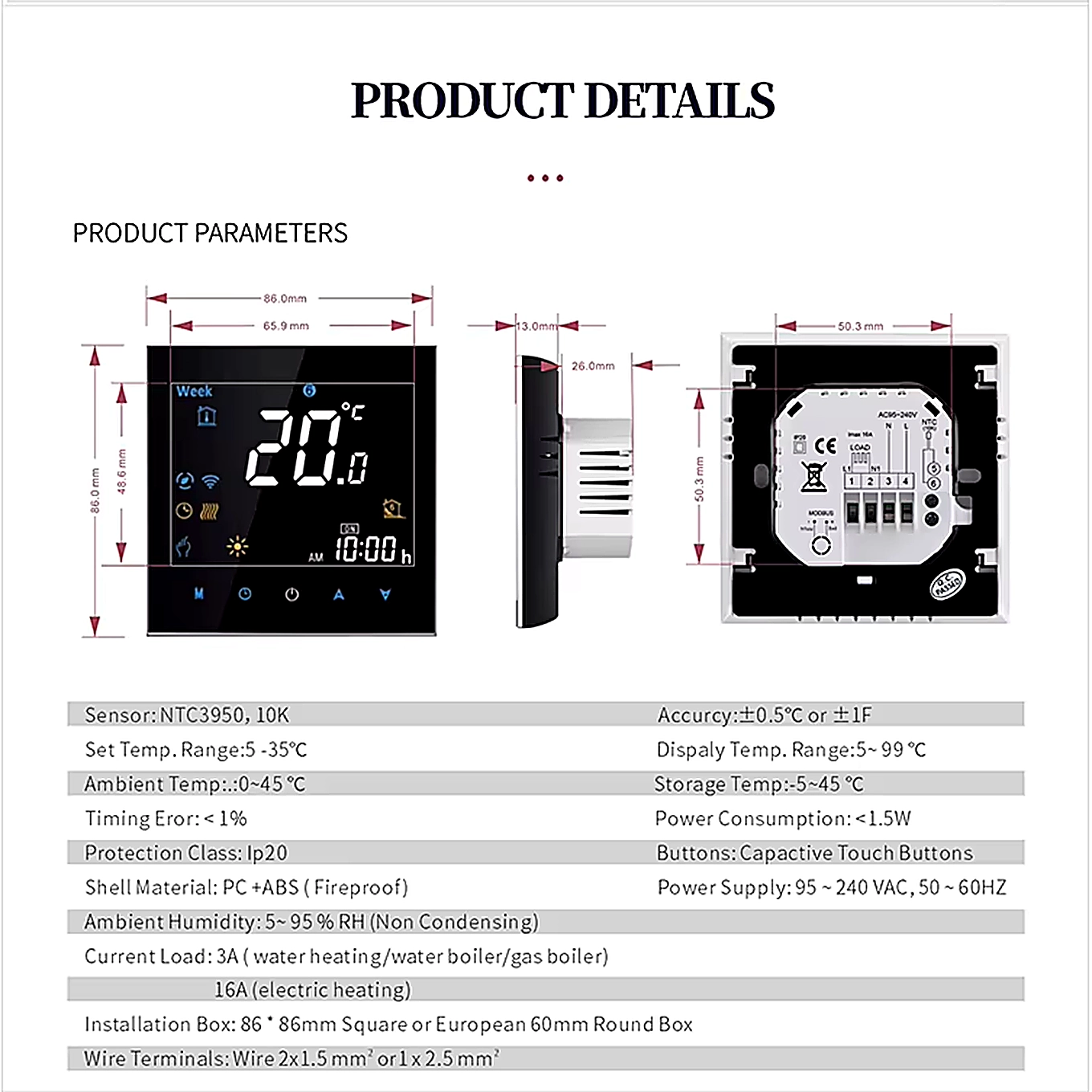

Data sheet
- Power supply
- 95-240 VAC 50/60Hz
- Material
- ABS+PC
- Working humidity
- 5% - 95% non-condensing
- Voice Control
- None
- Communication Protocol
- Modbus RS485
- Consumption
- -1.5W
- Temperature Range
- 5-35℃
- Storage temperature
- -5 ~ 45℃
- Buttons
- Capactive touch buttons
- Protection Rating
- IP20
- Temperature measurement accuracy
- ±1℃
- sensor
- NTC
- Timing error
- -1%
- Mounting
- 86×86 Box or Round Box
- Electric charge
- 3A for the valve 5A for the fan
- Temperature Display Range
- 5~99
- Plant typology
- Boiler with radiators
- Modbus Coding
- RTU
- Works with
- Home Assistant
- Hub required
- Modbus gateway
- Ideal for
- Heating & climate
- Home Assistant integration
- Local integration (LAN)
Specific References
- UPC
- 690225856908
- EAN13
- 6902258569084
- MPN
- Beca BHT-3000GCNL Black
