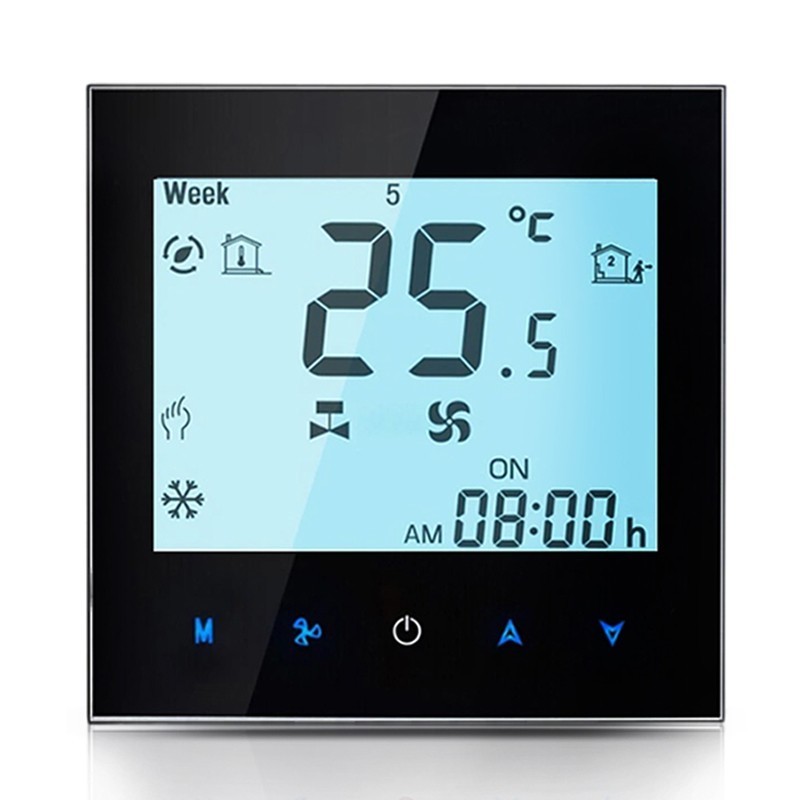

Beca Smart WiFi Thermostat with Sensor BAC-1000MLWE-FAN – 0–10V Fan Control and Motorized Valve

Beca BAC-1000MLWE Smart WiFi Thermostat with Probe - 0-10V Fan and On/Off Valve

The Beca BAC-1000MLWE-FAN is an advanced WiFi smart thermostat designed for the control of 2-pipe systems,

with 0-10V modulating fans and ON/OFF motorized valves . Equipped with integrated Wi-Fi connection, it can be

remotely managed via Tuya Smart or Smart Life apps , compatible with Amazon Alexa, Google Home and

home automation systems. This model offers a modern and intuitive interface with a backlit LCD display , and includes

An external probe for precise temperature detection. Ideal for HVAC systems with two-way valves .

fan coils , and residential and commercial environments or accommodation facilities such as hotels , B&Bs and restaurants.

Smart Control from Smartphone with Tuya or Smart Life App

Native integration with the Tuya Smart and Smart Life apps allows you to manage every function of the thermostat remotely ,

directly from your smartphone . You can program time slots, adjust the temperature, and change operating modes.

and monitor the status of your heating or cooling in real time , wherever you are.

Full compatibility with Alexa and Google Home voice assistants

The thermostat supports voice commands via Amazon Alexa, Google Assistant and Nest, offering instant control

and hands-free. You can turn the system on or off , change the temperature, or activate a preset scene.

with a simple sentence, making the home automation experience even more fluid and integrated.

Fan Control with 0–10 V Output for Modulating Regulation

The presence of the 0–10 V output allows the management of modulating fans (e.g. fan coils), allowing regulation of the

speed proportional to the thermal requirement. This guarantees more stable comfort , reduced noise and a

significant energy savings compared to traditional systems with fixed speeds (high/medium/low).

ON/OFF Motorized Valve Control (2 Ways)

Thanks to two dedicated independent relay outputs, the thermostat can control a motorized valve

two-way (open/close), typical of 2-pipe systems. This allows you to adjust with

precision the flow of hot or cold water to the terminal unit, improving the efficiency of the entire system.

Dual Climate Mode: Heating and Cooling

Perfect for any season, the thermostat can be set to control both winter heating

than summer cooling . This versatility makes it ideal for heat pumps,

mixed systems or fan coils with summer function, adapting to any type of climatic requirement.

Advanced weekly programming (5+1+1 periods)

Supports up to 6 programmable periods for each day, with summer/winter presets or custom settings,

to save energy and automatically manage on-off switching .

Ideal for those who want to always have a comfortable climate without having to intervene manually every day.

External Probe Included for Ambient Temperature Monitoring

The supplied remote probe can be installed in an optimal position to detect

correctly the temperature , avoiding false readings due to air currents or sun exposure.

Also ideal for humid environments, cellars, saunas, or for controlling underfloor temperature.

Easy Wall Installation on Flush-Mounted Box

The thermostat is designed for an elegant and safe installation directly on the wall , compatible with the

Common European square or round flush-mounted boxes. The compact structure and accessible terminal block

They make assembly easier, reducing installation times even for the less experienced user.

Modern Touch Design in Tempered Glass – White or Black

The high-sensitivity touch screen is protected by a tempered glass surface, resistant to scratches and impacts.

The minimal design can be easily integrated into modern, classic or professional environments .

Integrated safety features

The thermostat includes safety features such as child key lock , frost protection that activates the fan coil

if the temperature drops below a critical value, and the reporting of any malfunctions via the app.

These features reduce the risk of failure and protect your system.

Backlit Display with Integrated Digital Clock

The high-visibility LCD display is backlit with white light, ideal even in dimly lit environments.

Clearly displays current temperature, operating mode (heating/cooling),

relay status, fan speed and time , allowing complete control at a glance.

Universal Power Supply 95–240 V AC, 50/60 Hz

The thermostat is compatible with a wide range of electrical systems thanks to its supply voltage

universal. It can be installed in any standard European and international system without the need for

external transformers, making it ideal for new constructions, renovations or interventions in hospitality facilities.

Recommended applications:

• 2-pipe fan coil (heating / cooling)
• HVAC systems with 0–10V fans
• Control of motorized two-way valves
• Climate automation in hotels, offices, apartments, and B&Bs
• Tuya/SmartLife home automation systems that can be integrated into smart scenarios
