Tuya Smart Zigbee Thermostat for Fan Coil 2 or 4 Pipes Fan Control 0–10V + ON/OFF Valves

Tuya-L2-T/F-MF-zigbee-Black

Control 2 and 4 Tubes, one or two ON-OFF Valves and a 0-10V Fan

Color
€79.90
Tax included
Delivery in 24/48 hours
Quantity

X

Crea un avviso per essere avvisato via email quando torneremo ad avere stock..


Introduce tu email para recibir una notificación cuando esté disponible

Crea una alerta para recibir un email cuando tengamos stock de nuevo

Order it before 3 hours and 4 minutes and receive it between Monday 14 and Tuesday 15 with SDA

Close
Description

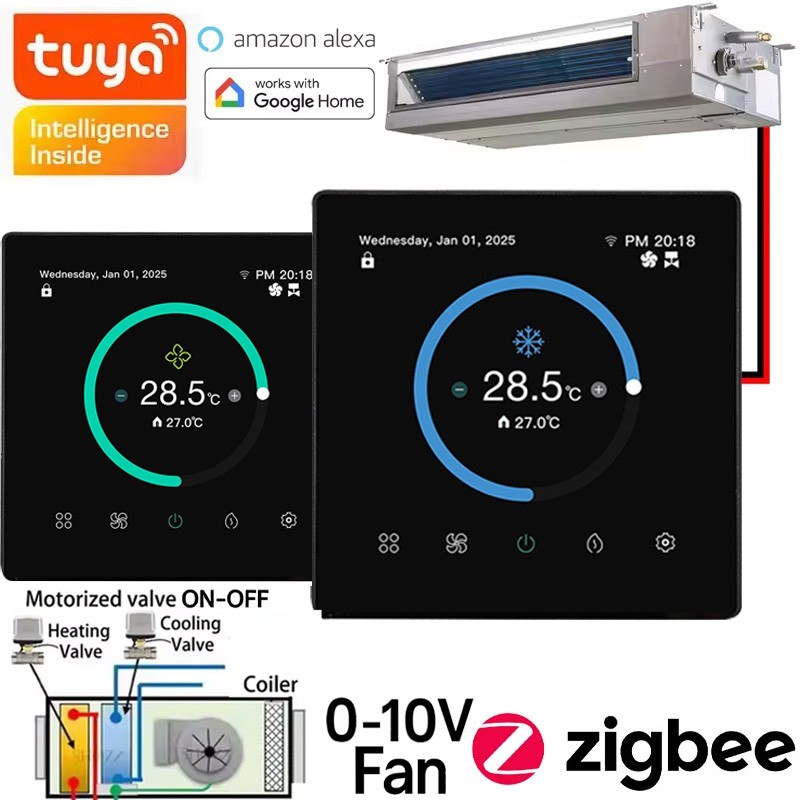

Tuya Smart Zigbee Fan Coil Thermostat 2 or 4 Pipes Control 1/2 Valves ON-OFF Fan 0-10V

The Tuya Zigbee smart thermostat for modulating fan coils is the ideal solution to modernise and make your home smarter.

hydronic climate control in your home or professional environments. Compatible with fan coils

2 or 4 pipe , this device manages the ON/OFF valves for hot or cold water and controls the fan speed

via 0–10 V analog signal, perfect for latest generation electronic fan coils. Thanks to Zigbee technology,

integrable with compatible gateways and with Tuya Smart or Smart Life apps , you can control the thermostat remotely, receive

notifications, create automated scenes and interact via voice commands with Alexa or Google Assistant . The modern design

with backlit full touch TFT display makes use practical, intuitive and in line with any decor.

Control from Tuya Smart or Smart Life App

The stable and efficient Zigbee connection allows you to manage all the thermostat functions via the app: regulation

temperature , operating modes (heating, cooling, ventilation), continuous fan modulation 0–10 V ,

valve management and creation of smart scenarios with other devices. A complete solution to maximize comfort and

energy saving, wherever you are. Note: A compatible Zigbee Tuya Hub is required for remote operation via App.

Compatible with 2-pipe or 4-pipe fan coil systems

This model is designed to fit both 2-pipe fan coil systems (a shared hot/cold water circuit)

both 4-pipe (separate circuits for heating and cooling), making it extremely versatile and

perfect for any type of residential or commercial hydronic installation .

0–10V modulating fan control

The thermostat supports 0–10 V analog control for continuous regulation of the fan speed .

This makes it compatible with latest generation fan coils that require modulating control,

quieter, more precise and with better efficiency performance than traditional 3-speed relays.

ON/OFF valve control

It integrates the management of ON/OFF motorized valves , to open or close the hot or cold water circuit.

towards the fan coil . A fundamental function to avoid waste, optimize consumption and maintain

the desired temperature with maximum stability.

Compatible with Alexa and Google Home

Thanks to the compatibility with the main voice assistants, you can adjust the temperature and basic parameters of the fan coil

simply by talking to Amazon Alexa or Google Assistant , without having to physically touch the device.

Full Color TFT Touch Display

Large TFT color screen with simple and modern interface, backlit, for perfect readability

even in low light conditions. Clearly displays operating modes (cooling, heating,

ventilation, eco), set temperature , valve status and fan speed.

Advanced weekly programming (5+1+1 periods)

Supports up to 6 programmable periods for each day, with summer/winter presets or custom settings,

to save energy and automatically manage on and off times .

Ideal for those who want to always have a comfortable climate without having to intervene manually every day.

Integrated safety features

The thermostat includes safety features such as child key lock , frost protection that activates the fan coil

if the temperature drops below a critical value, and reporting of any malfunctions via app.

These features reduce the risk of failure and protect your system.

High sensor precision

Thanks to the internal NTC sensor , the thermostat detects the room temperature with high precision and regulates the

real-time operation to always ensure maximum efficiency and the best possible comfort.

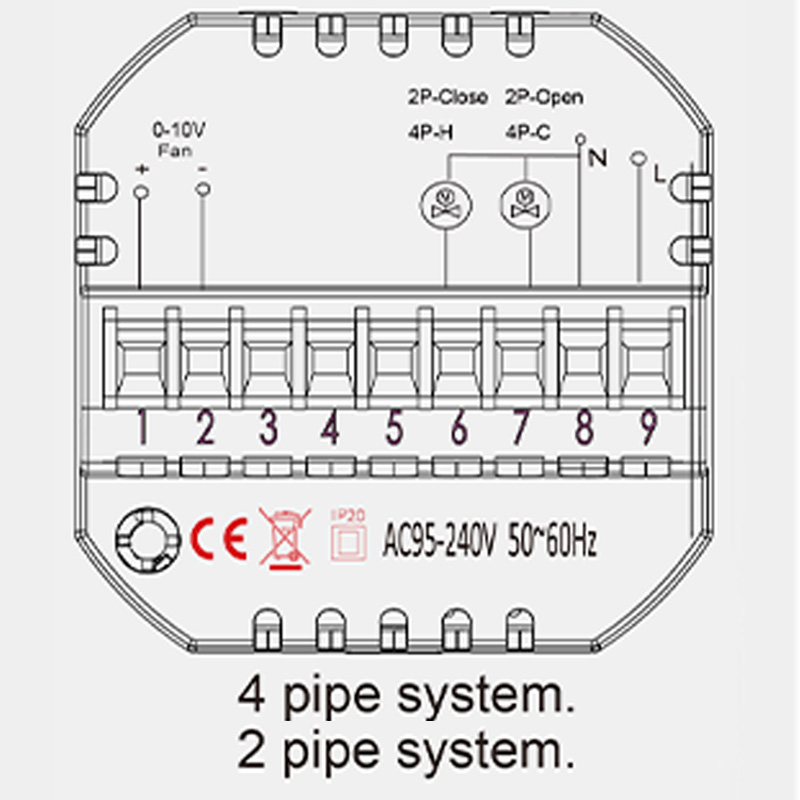

Universal installation

Compatible with 86x86 mm square or 60 mm round box. Included in the kit: mounting screws,

manual in Italian and QR code for quick configuration with the Smart Life or Tuya app.

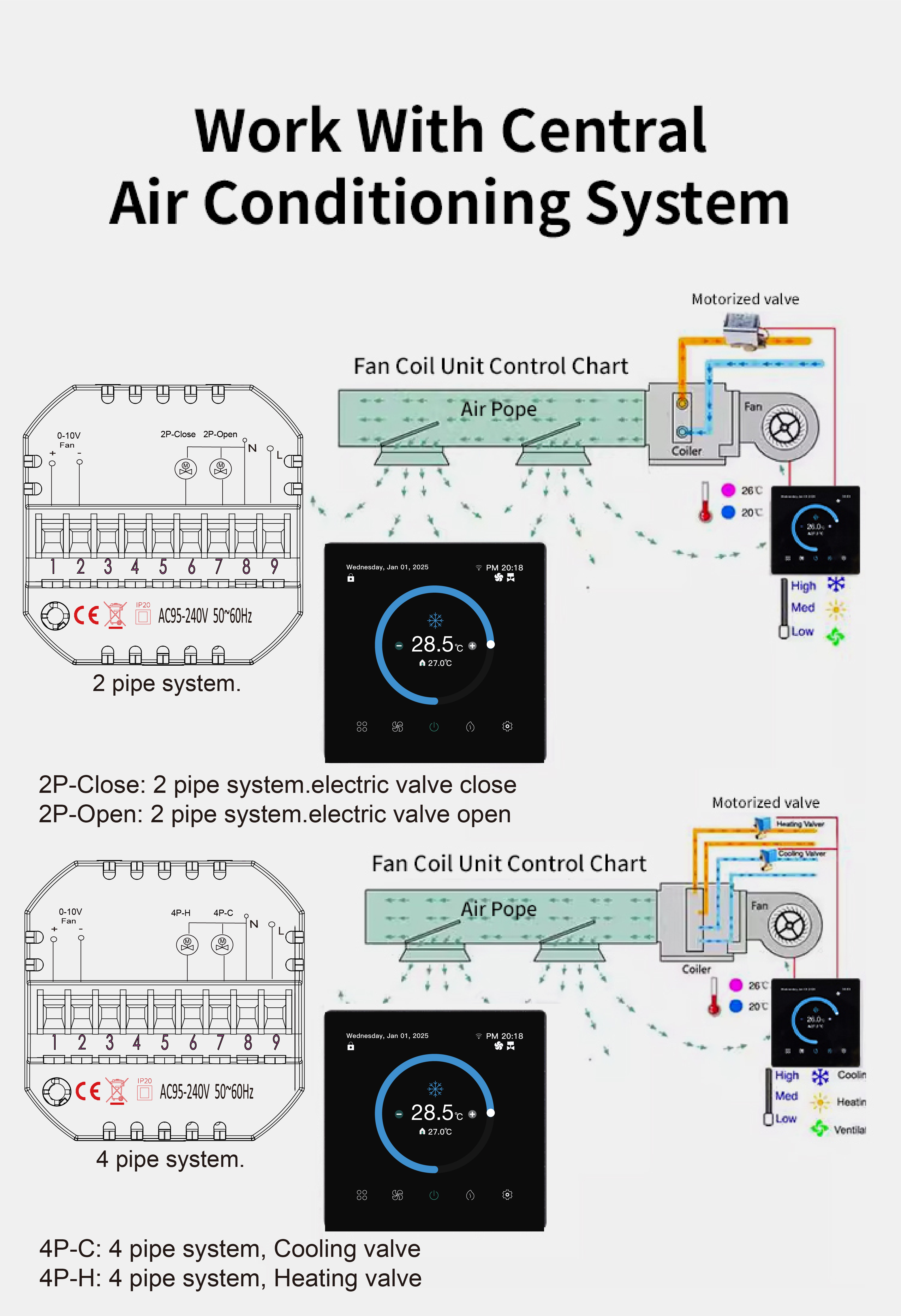

Compatibility with HVAC Systems

  • 2-pipe systems : single ON/OFF valve control with modulating fan
  • 4-pipe systems : separate ON/OFF double valve control for heating/cooling
  • Fan coil with electronic fans 0–10 V (continuously modulated)
  • Traditional ON/OFF motorized valves

Ideal for:

  • Private homes
  • Hotels, B&Bs, accommodation facilities
  • Doctors' offices, clinics
  • Shopping centers, schools
  • Centralized fan coil systems

Product Details
Tuya-L2-T/F-MF-zigbee-Black

Data sheet

Alimentazione
95-240 VAC 50/60Hz
Material
ABS+PC
Working temperature
0~50°C
Working humidity
0-95% Non-Condensing
Voice Control
Amazon Alexa, Google Home and Siri
Mobile application
Tuya Smart or Smart Life
Communication Protocol
Zigbee 3.0
Precision
+0.5°C
Consumption
-1.5W
Temperature Range
5-35℃
Storage temperature
-5 ~ 45℃
Wire terminals
wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Rating
IP20
sensor
NTC3950 10K
Timing error
-1%
Assembly Box
86x86 or European Round
Operation scheme
2 Pipes
Operation scheme
4 Pipes
Plant typology
Conditioners
Fan type
0–10V modulating
Valve Type
on/off

Specific References

ean13
4713902803049
upc
471390280304
mpn
Tuya L2-T/F-MF-zigbee Black
Manuals
Download
User Manual Tuya L2-TF-MF-zigbee

Tuya Termostato Smart Zigbee per Fan Coil 2 o 4 Tubi Controllo Ventola 0–10V + Valvole ON-OFF

Download (611.86k)
