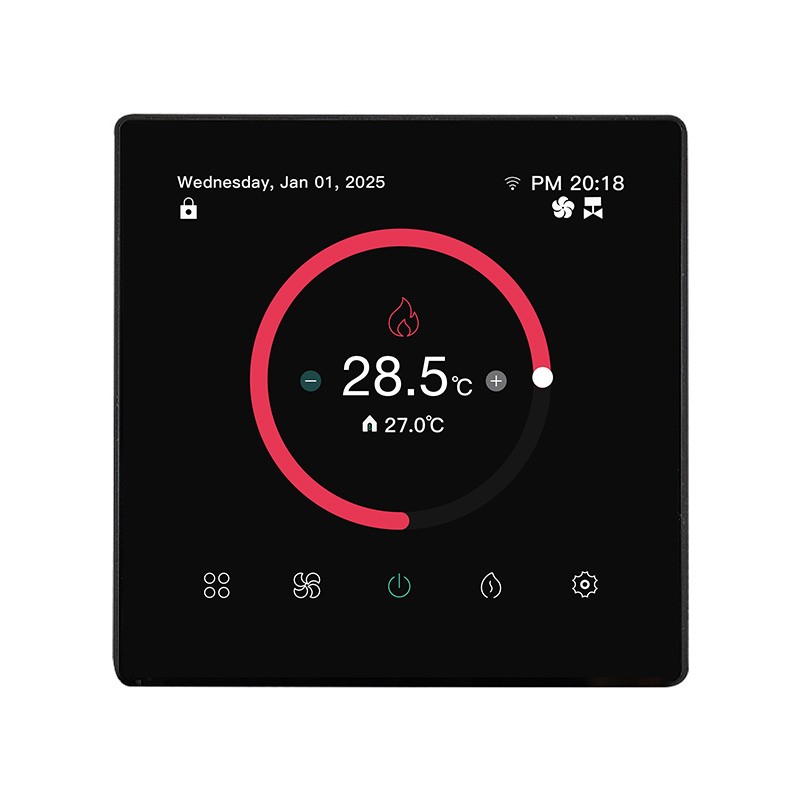

Tuya Zigbee Smart Thermostat for Fan Coil 2 Pipes 0-10V Fan Control and 0-10V Valve

Tuya-L2-T-MFV-zigbee-Black

Control 2 Tubes, a 0-10V Valve and a 0-10V Fan

Color
€79.90
Tax included
Delivery in 24/48 hours
Quantity

X

Crea un avviso per essere avvisato via email quando torneremo ad avere stock..


Introduce tu email para recibir una notificación cuando esté disponible

Crea una alerta para recibir un email cuando tengamos stock de nuevo

Order it before 3 hours and 0 minutes and receive it between Monday 14 and Tuesday 15 with SDA

Close
Description

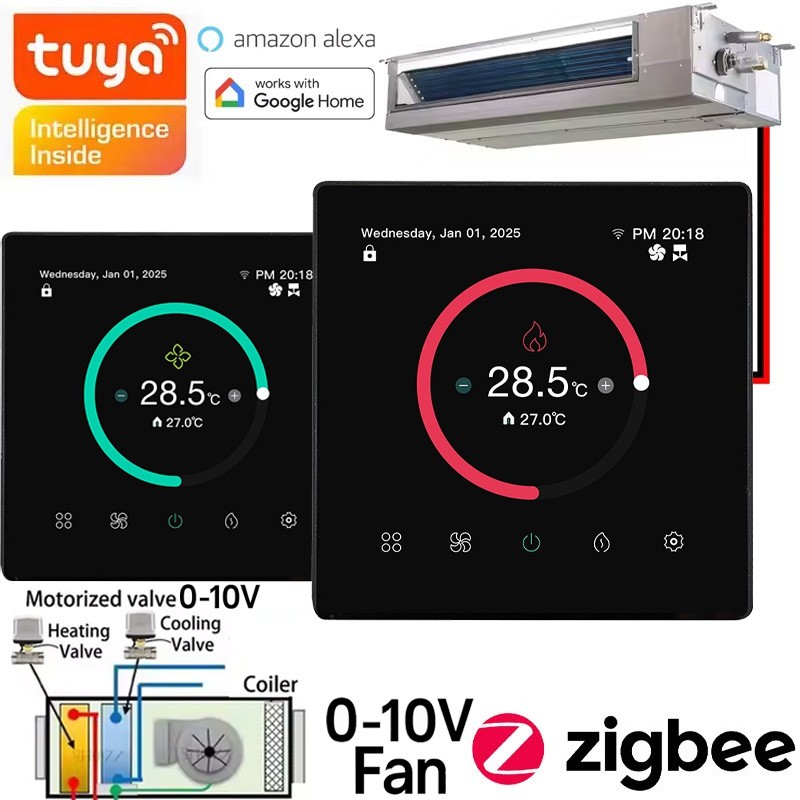

Tuya Smart Zigbee Thermostat for Fan Coil 2 Controls a 0-10V Valve and a 0-10V Fan

The Zigbee Tuya smart thermostat for modulating fan coils is the ideal solution for modernising and optimising the management

of your hydronic system , offering precision, silence and energy savings. Designed for 2-pipe fan coil systems ,

This device controls modulating valves with 0–10 V analog signal and regulates the fan speed with

0–10 V modulating output , ensuring tailor-made comfort in every environment. Zigbee technology, combined with

a compatible gateway, allows you to manage all functions remotely via the Tuya Smart or Smart Life apps ,

receive real-time notifications , create smart scenarios with other smart devices and use voice commands

via Amazon Alexa or Google Assistant . The elegant design with backlit full touch TFT display and

a user-friendly interface make it perfect in any residential or professional space.

Control from Tuya Smart or Smart Life App

Thanks to the Zigbee connection (requires a compatible hub), you can control the temperature , operating modes

(heat, cold, ventilation, eco), the modulated fan speed (0–10 V) and the opening of the modulating valve

directly from your smartphone . You can also create custom scenes , receive push notifications and monitor the

system status, to always have everything under control wherever you are .

Note: For remote operation from App, a compatible Zigbee Tuya Hub is required.

Compatible with 2-pipe fan coil systems

Designed specifically for 2-pipe systems with a single seasonally switched hot/cold water circuit,

This thermostat allows you to manage a 0–10 V modulating valve and control it proportionally

the fan speed , thus adapting to advanced fan coils with modulating electronics .

0–10 V modulating valve control

It integrates the management of 0–10 V modulating valves to continuously regulate the water flow in the fan coil , obtaining

greater precision, fewer temperature changes and optimised consumption compared to traditional ON/OFF valves.

0–10V modulating fan control

Thanks to the 0–10 V output dedicated to the fan , it is possible to modulate the speed continuously, ensuring

maximum comfort, reduced noise and better efficiency than classic 3-speed relays.

Compatible with Alexa and Google Home

Thanks to the compatibility with the main voice assistants, you can adjust the temperature and basic parameters of the fan coil

simply by talking to Amazon Alexa or Google Assistant , without having to physically touch the device.

Full Color TFT Touch Display

Large TFT color screen with simple and modern interface, backlit, for perfect readability

even in low light conditions. Clearly displays operating modes (cooling, heating,

ventilation, eco), set temperature , valve status and fan speed.

Advanced weekly programming (5+1+1 periods)

Supports up to 6 programmable periods for each day, with summer/winter presets or custom settings,

to save energy and automatically manage on and off times .

Ideal for those who want to always have a comfortable climate without having to intervene manually every day.

Integrated safety features

The thermostat includes safety features such as child key lock , frost protection that activates the fan coil

if the temperature drops below a critical value, and the reporting of any malfunctions via app.

These features reduce the risk of failure and protect your system.

High sensor precision

Thanks to the internal NTC sensor , the thermostat detects the room temperature with high precision and regulates the

real-time operation to always ensure maximum efficiency and the best possible comfort.

Universal installation

Compatible with 86x86 mm square or 60 mm round box. Included in the kit: mounting screws,

English manual and QR code for quick setup with Smart Life or Tuya app.

Compatibility with HVAC Systems

  • 2-pipe systems : manages a single 0–10 V modulating valve to regulate the flow of hot or cold water, with seasonal switching.
  • Fan coil with 0–10 V electronic fans : continuous fan speed control via proportional analogue signal for smooth, quiet and efficient operation.
  • 0–10 V modulating valves : perfect for advanced systems that require fine modulation of the hydronic flow rate, improving temperature stability.

Ideal for:

  • Private homes with modulating fan coils
  • Hotels, B&Bs and accommodation facilities with modern hydronic systems
  • Professional studios, offices and commercial spaces
  • Public buildings and schools equipped with advanced fan coils
  • Centralized fan coil systems with 0–10 V signal

Product Details
Tuya-L2-T-MFV-zigbee-Black

Data sheet

Alimentazione
95-240 VAC 50/60Hz
Material
ABS+PC
Working temperature
0~50°C
Working humidity
0-95% Non-Condensing
Voice Control
Amazon Alexa, Google Home and Siri
Mobile application
Tuya Smart or Smart Life
Communication Protocol
Zigbee 3.0
Precision
+0.5°C
Consumption
-1.5W
Temperature Range
5-35℃
Storage temperature
-5 ~ 45℃
Wire terminals
wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Rating
IP20
sensor
NTC3950 10K
Timing error
-1%
Assembly Box
86x86 or European Round
Operation scheme
2 Pipes
Plant typology
Conditioners
Fan type
0–10V modulating
Valve Type
0-10V modulating

Specific References

ean13
4712746135026
upc
471274613502
mpn
Tuya L2-T-MFV-zigbee Black
Manuals
Download
User Manual Tuya L2-T-MFV-zigbee

User Manual Expert4house Tuya Termostato Smart Zigbee per Fan Coil 2 Tubi Controllo Ventola e Valvole 0–10V

Download (576.13k)
