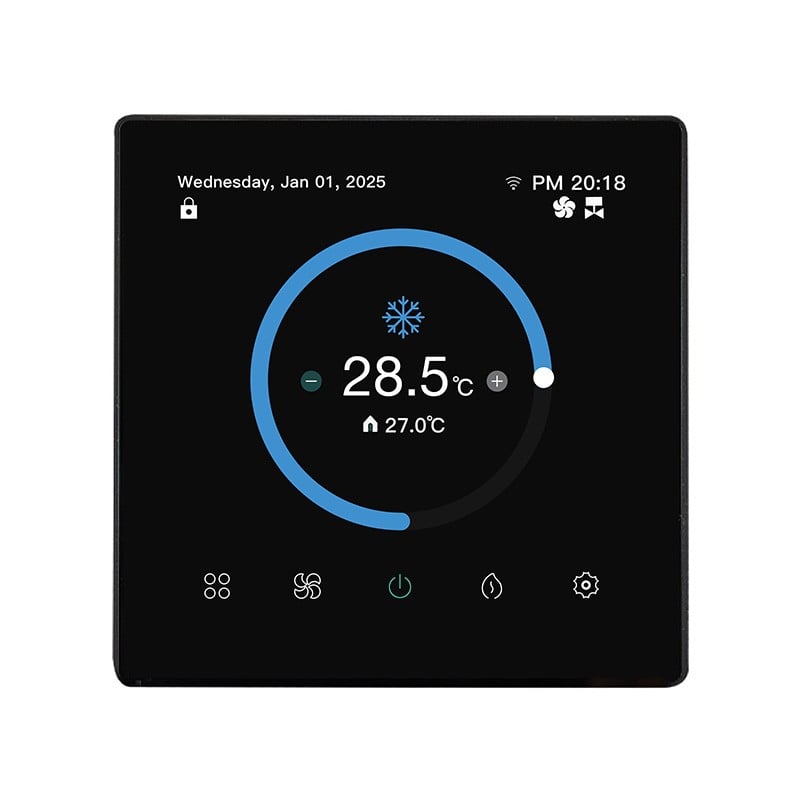

Tuya Smart WiFi Thermostat for 2 Pipe Fan Coil 0-10V Fan Control and 0-10V Valve

Tuya Smart Thermostat for Fan Coil 2 Controls a 0-10V Valve and a 0-10V Fan

The Tuya WiFi smart thermostat for modulating fan coils is the ideal solution for updating and making management more efficient.

of your hydronic system , ensuring precision control and improved energy efficiency . Compatible with

2-pipe fan coil systems , this device is designed to drive modulating valves with 0–10 V analog signal

and adjust the fan speed with 0–10V modulating output, ensuring smooth, quiet operation and

perfectly adaptable to every need. Thanks to the integrated WiFi connection, you can manage all the functions comfortably

remotely via the Tuya Smart or Smart Life apps , receive real-time notifications, program custom schedules and

control the temperature through voice commands with Amazon Alexa or Google Assistant . The modern design with display

Backlit full touch TFT and user-friendly interface makes it perfect in any environment, both residential and professional.

Control from Tuya Smart or Smart Life App

The thermostat can be managed via smartphone using the 2.4 GHz WiFi connection, to control temperature,

operating modes (heat, cold, ventilation, eco), modulating fan power (0–10 V) and valve opening

modulating . Allows you to receive notifications, set custom schedules and create smart scenarios with other

Tuya devices, for maximum comfort and energy savings wherever you are.

Compatible with 2-pipe fan coil systems

Designed specifically for 2-pipe systems with a single seasonally switched hot/cold water circuit,

This thermostat allows you to manage a 0–10 V modulating valve and control it proportionally

the fan speed , thus adapting to advanced fan coils with modulating electronics .

0–10 V modulating valve control

It integrates the management of 0–10 V modulating valves to continuously regulate the water flow in the fan coil , obtaining

greater precision, fewer temperature changes and optimised consumption compared to traditional ON/OFF valves.

0–10V modulating fan control

Thanks to the 0–10 V output dedicated to the fan , it is possible to modulate the speed continuously, ensuring

maximum comfort, reduced noise and better efficiency than classic 3-speed relays.

Compatible with Alexa and Google Home

Thanks to the compatibility with the main voice assistants, you can adjust the temperature and basic parameters of the fan coil

simply by talking to Amazon Alexa or Google Assistant , without having to physically touch the device.

Full Color TFT Touch Display

Large TFT color screen with simple and modern interface, backlit, for perfect readability

even in low light conditions. Clearly displays operating modes (cooling, heating,

ventilation, eco), set temperature , valve status and fan speed.

Advanced weekly programming (5+1+1 periods)

Supports up to 6 programmable periods for each day, with summer/winter presets or custom settings,

to save energy and automatically manage on and off times .

Ideal for those who want to always have a comfortable climate without having to intervene manually every day.

Integrated safety features

The thermostat includes safety features such as child key lock , frost protection that activates the fan coil

if the temperature drops below a critical value, and the reporting of any malfunctions via app.

These features reduce the risk of failure and protect your system.

High sensor precision

Thanks to the internal NTC sensor , the thermostat detects the room temperature with high precision and regulates the

real-time operation to always ensure maximum efficiency and the best possible comfort.

Universal installation

Compatible with 86x86 mm square or 60 mm round box. Included in the kit: mounting screws,

English manual and QR code for quick setup with Smart Life or Tuya app.

Compatibility with HVAC Systems

• 2-pipe systems : manages a single 0–10 V modulating valve to regulate the flow of hot or cold water, with seasonal switching.
• Fan coil with 0–10 V electronic fans : continuous fan speed control via proportional analogue signal for smooth, quiet and efficient operation.
• 0–10 V modulating valves : perfect for advanced systems that require fine modulation of the hydronic flow rate, improving temperature stability.

Ideal for:

• Private homes with modulating fan coils
• Hotels, B&Bs and accommodation facilities with modern hydronic systems
• Professional studios, offices and commercial spaces
• Public buildings and schools equipped with advanced fan coils
• Centralized fan coil systems with 0–10 V signal
