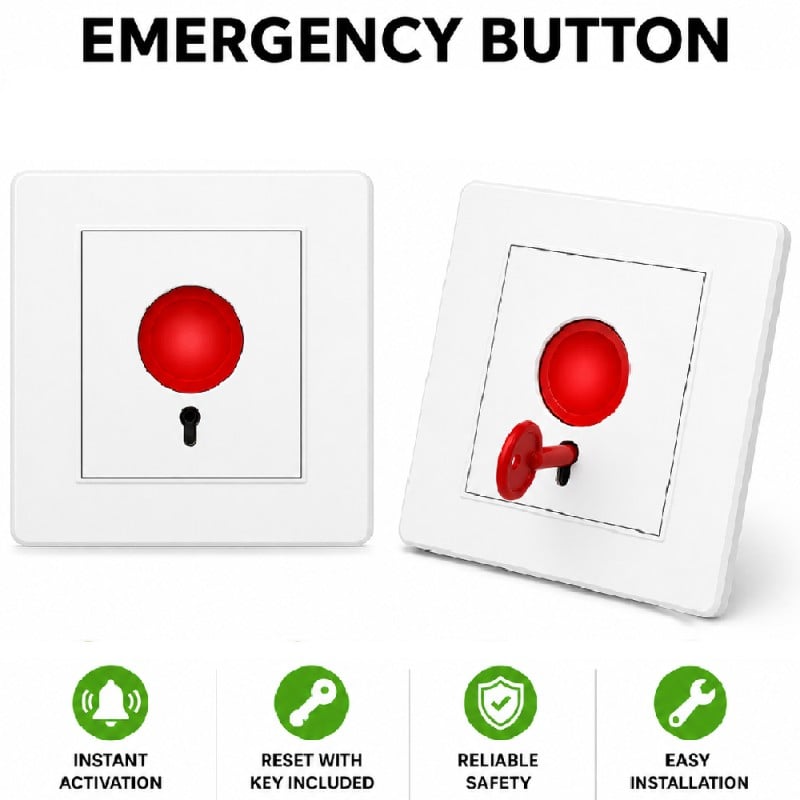

Tuya Wired Panic and Emergency Exit Button with Reset Key for Alarms
€4.99
Tax included
No review at the moment
- Push emergency button with key reset: designed to quickly trigger an emergency or exit command and then be returned to the initial state using the reset key.
- NO/NC/COM contacts: provides Normal Open / Normal Closed / Common outputs, useful for integration with various alarm, access control, and automation systems.
- Compatible with alarm systems: designed to integrate with wired alarm systems and with our smart zoned alarm systems.
- DC12V power supply: intended for 12V DC installations, a common configuration in security and access control systems.
- Standard 86 x 86 mm format: compact wall-mount size, suitable for neat, professional installations. Online datasheets indicate approximately 86 x 86 x 23.5 mm.
- ABS body: made of ABS material, lightweight and suitable for everyday indoor use.
- Ideal for emergency, panic, or door release: can be used for emergency call, panic button, or door release applications, depending on the connected system.
- Secure manual reset: the reset key helps prevent accidental reactivation and makes the device more suitable for controlled environments.
- Long mechanical lifespan: the product’s technical drawing indicates a tested mechanical life of up to 500,000 actuations.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
The 12V wired emergency button designed for quick, safe and professional management
Designed to offer simple, immediate and reliable emergency control, this wired wall-mounted panic button with reset key is the ideal solution for environments where rapid activation is required in case of emergency. With a simple press of the red button, the device sends the command to the connected system, making it perfect for applications on alarm systems , security systems and emergency exits . The key reset allows for controlled management after activation, while the compact design and wall mounting make it suitable for residential, commercial and professional contexts. A practical and versatile solution for those looking for an emergency device with a clean appearance, easy to install and also compatible with our wired smart alarm systems .
A single gesture to immediately activate the emergency
The button's operation is very intuitive: in an emergency, simply press the red button to immediately send a command to the connected system. Once activated, the button can trigger the control panel or associated device, for example by activating an alarm , an emergency release , or a dedicated signal depending on the system in which it is installed. After use, the device is reset to its initial state via a reset key , thus preventing accidental reactivation and allowing for a controlled reset. It is a practical solution for contexts where a quick, clear, and always accessible emergency command is required.
Simple installation and direct connection
The button is designed for simple, quick, and tidy wall installation , making it suitable for both domestic and professional environments. Thanks to the NO/NC/COM contacts, it can be connected to various security systems, such as wired alarm systems , our smart zone alarm control panels , and even access controls . Once connected, pressing the button immediately sends the command to the associated system, activating an emergency signal or a dedicated function based on the system configuration. It is therefore a practical solution for those looking for a device that is easy to install, versatile in its connections, and suitable for professional integration.
Compact design and wall mounting
Dimensions
Frequently Asked Questions
Yes, it is compatible with wired alarm systems equipped with dedicated inputs. Thanks to the NO/NC/COM contacts, it can be connected to various control panels, including our multi-zone smart alarm systems with wired inputs.
These are the three output contacts of the button:
NO = normally open
NC = normally closed
COM = municipality
This allows the connection to be adapted to the type of system or control unit used.
Yes, this is one of the product's advantages. After activation, the button remains in the alarm/command state until reset with the key, thus avoiding accidental resets and allowing for more controlled event management.
The product is suitable for 12V DC applications. Depending on the type of system, it can be used as a control connected to an entrance or an access control system. It is always advisable to follow the wiring diagram of the device to which it is connected.
Yes, it can be used as an emergency button, assistance request or panic alarm, depending on the connected system and the programmed function.
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Frequently Asked Questions
Yes, it is 100% wire-free: it works with 2 rechargeable 18650 5200mAh batteries and is charged via USB 5V.
It depends on usage. Specs: Standby time up to 12 months and use up to 6 months with about 10 activations per day.
Yes. It has 4 IR LEDs and night vision up to 10 meters, with automatic day/night mode and IR-CUT.
It uses a PIR sensor with a range of up to 8 meters, useful for more precise detections and to reduce false alarms compared to motion via image alone.
Yes, it supports microSD up to 128GB and also Cloud Storage (option available in app).
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Tuya-PB102
Data sheet
- Power supply
- DC12V
- Colors
- White
- Material
- ABS
- Working temperature
- from -20 to +55°C
- Working humidity
- 0-95% Non-Condensing
- Voice Control
- None
- Dimensions
- 86x86x23.5 mm
- Communication Protocol
- Wired
- Output contact
- NO/NC/COM
- Mounting
- 86×86 Box or Round Box
- Ideal for Automation
- Alarm System
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Alarm & video surveillance
- Home Assistant integration
- Not integrable
Specific References
- UPC
- 904870684019
- EAN13
- 9048706840194
- MPN
- Tuya PB102
