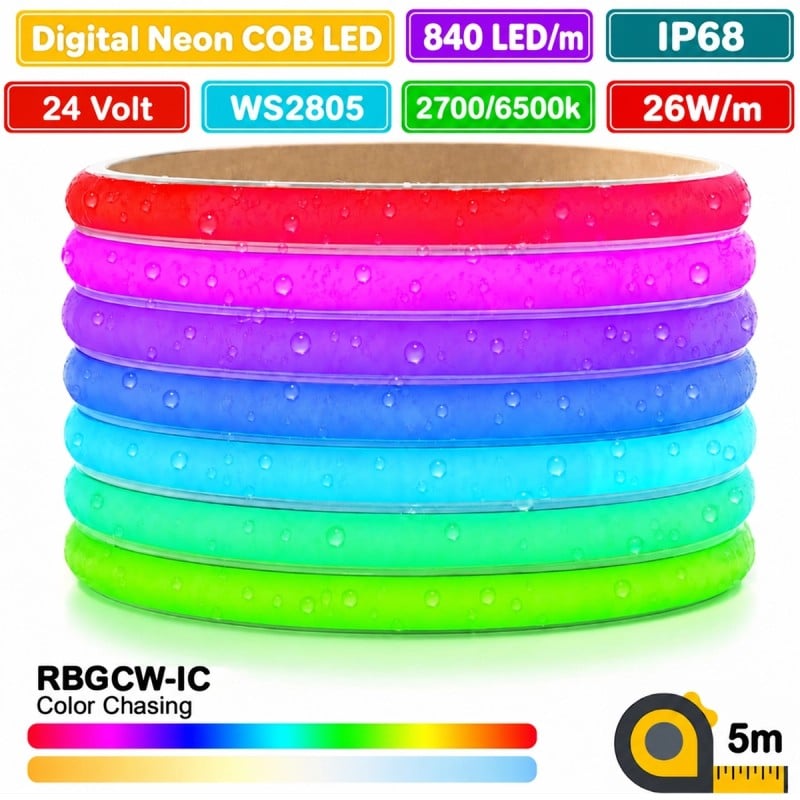

Addressable RGB+CCT COB Neon LED Strip WS2805 24V IP68 Waterproof 5 Meters
€99.90
Tax included
No review at the moment

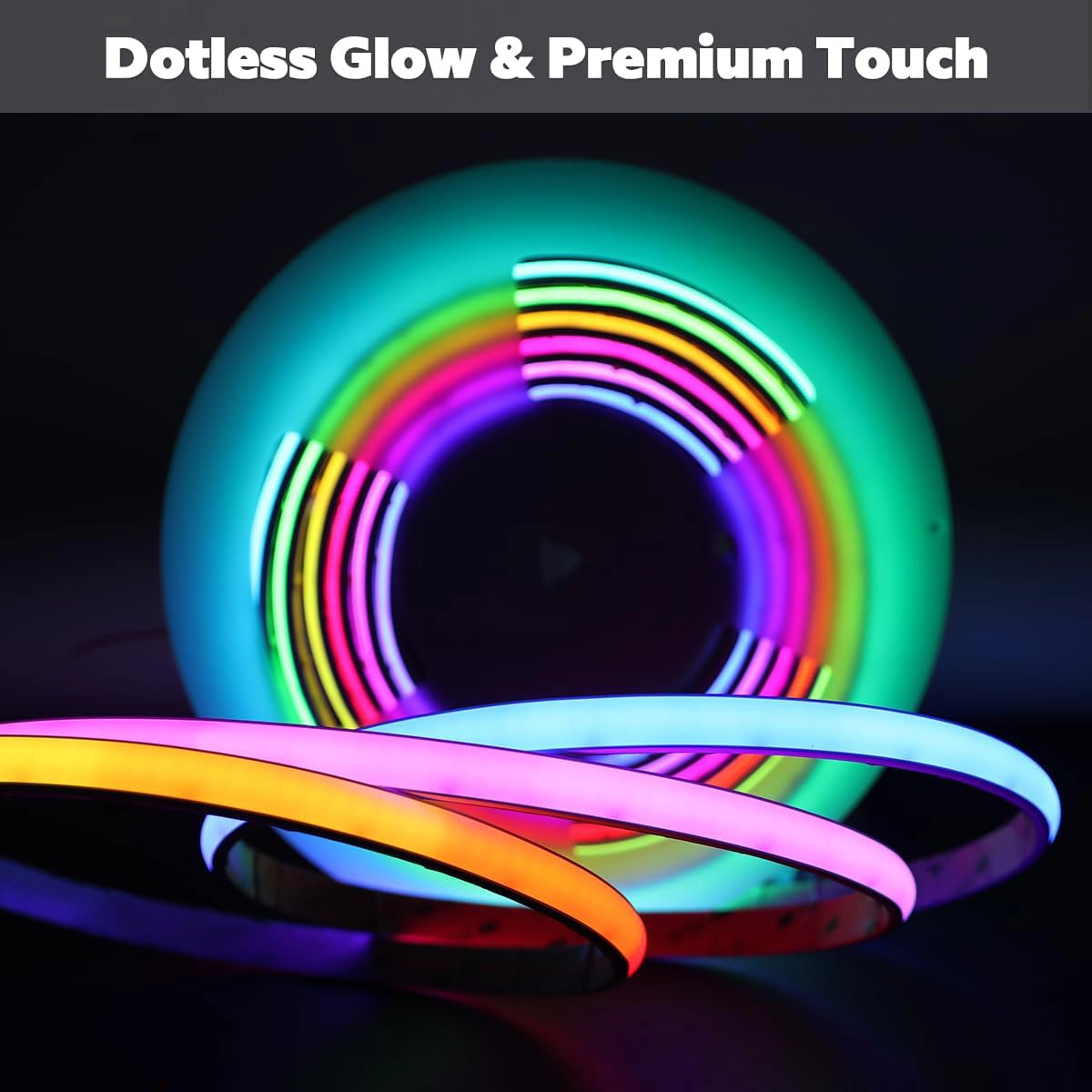

- Addressable RGB+CCT neon: colors, warm white, and cool white on the same strip, with segment effects that flow along the profile, such as color chasing.
- Five channels per segment: red, green, blue, warm white, and cool white. White ranges from 2700 to 6500 K without mixing colors.
- WS2805 chip on SPI signal: requires an SPI controller that supports WS2805 RGBCCT, such as the Tuya SPI LED Controller WiFi + RF from our catalog. Controller not included.
- COB 840 LEDs per meter: the dense LEDs behind the silicone diffuser create a continuous line of light, with no dots, for a traditional neon effect.
- Cut every 71.42 mm: this is the length of each addressable segment, i.e., 14 segments per meter. Shorten the strip at the marked cut points.
- IP68 waterproof: the silicone profile seals the strip and the connectors are watertight: suitable outdoors, in the garden, in the rain, and in wet environments.
- 24 V power: consumes 26 W per meter, up to 130 W for the 5-meter reel at maximum. 24 V power supply sold separately.
- Slim profile 18.6 × 7 mm: the neon is flexible and can be hand-bent to follow curves, furniture edges, steps, ceiling outlines, and lighted lettering.
- 3M adhesive backing: clean the surface, remove the liner, and press. On rough surfaces or outdoors, it’s advisable to also secure with clips or channels.
- Four-pin watertight connector: red +24 V, green data DI, blue backup data BI, and black ground, on a 250 mm cable. Connects to the controller without soldering.
- Where to use it: signs and illuminated lettering, facade and garden outlines, gaming rooms, shops and venues, wherever you need both colors and high-quality white.
- Controller and power supply sold separately: the package includes a 5-meter reel. For colors, whites, and effects you need an SPI WS2805 controller and a 24 V power supply.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund

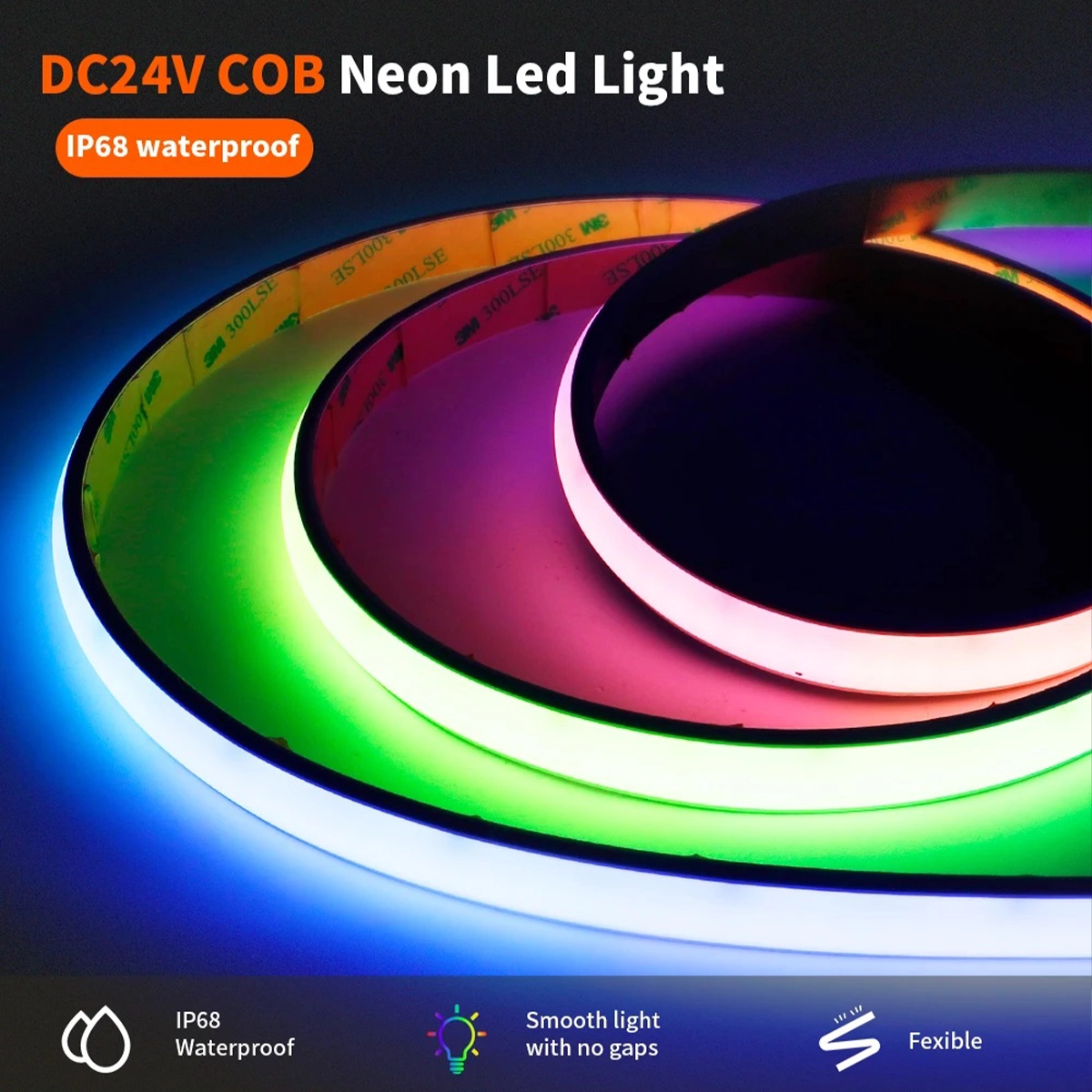

Addressable RGB+CCT COB LED neon light: segmented colors and whites, IP68 rated even outdoors
The addressable RGB+CCT COB LED neon strip combines quality color and white in a soft silicone profile. Each meter has 840 COB LEDs behind the diffuser, so the light comes out as a continuous line, without dots. The WS2805 chips divide the strip into 14 segments per meter, each with five channels: red, green, blue, warm white (2700K), and cool white (6500K). You can scroll through the colors, fade the whites, or only light up certain sections. The profile is IP68 , so it's also suitable for outdoor use. It operates at 24V and consumes up to 26W per meter. The SPI controller and power supply are sold separately.
You need an SPI controller that can handle the WS2805 RGBCCT chip.
The neon light doesn't connect directly to the power supply or to the phone: it needs an SPI controller that sends the digital signal to the WS2805 chips. It must support RGBCCT mode, that is, the five channels with two white channels. The Tuya SPI WiFi + RF LED Controller in our catalog includes the WS2805 among its compatible chips and can be controlled via an app, by voice, and with RF remote controls. An RGB or RGBW-only SPI controller turns on the colors, but doesn't manage the whites correctly. In the app, you set the chip type, the number of segments, and the color order, so each pixel responds as it should.

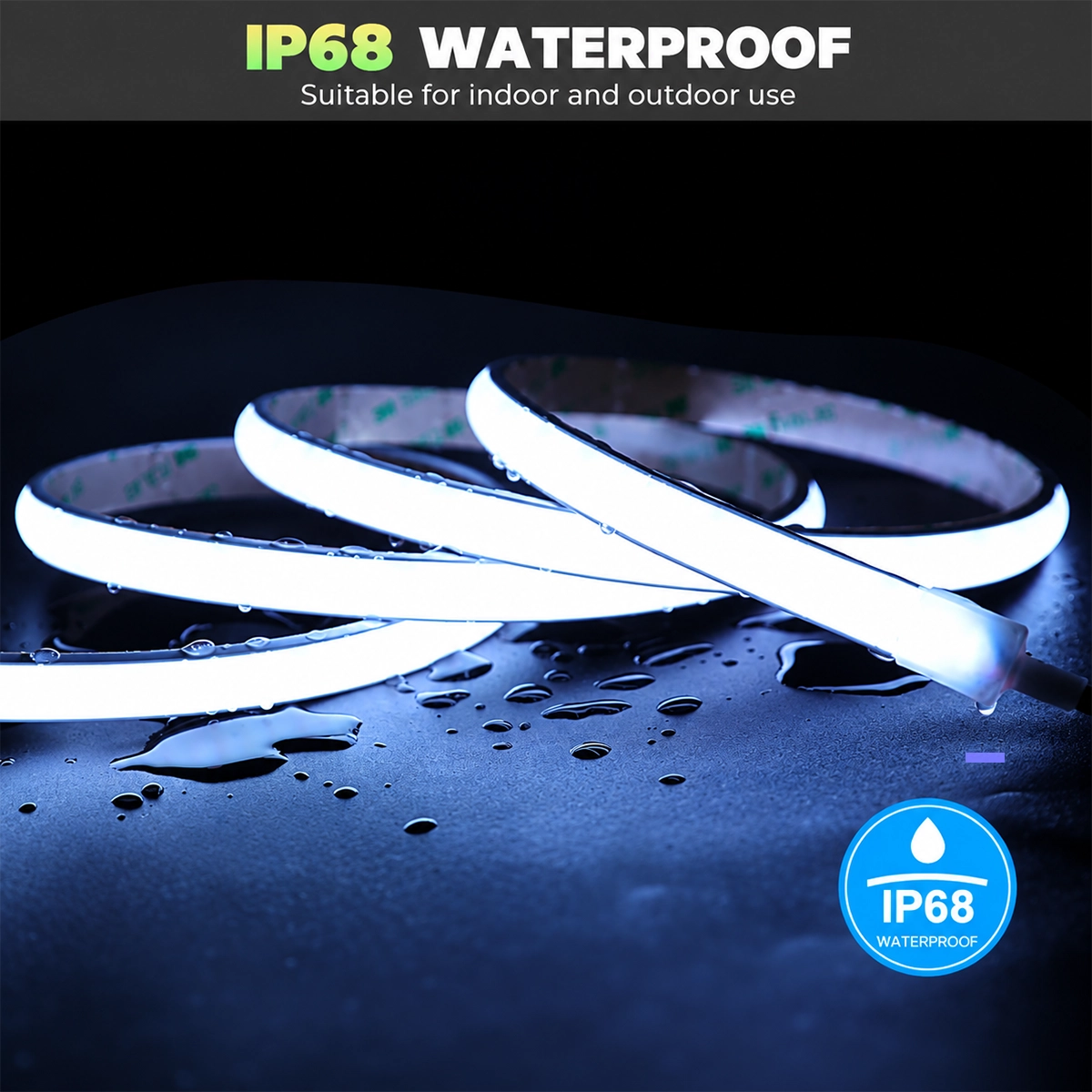

IP68 Waterproof Silicone: For indoor, outdoor and humid environments
The silicone profile encloses the LEDs and the circuit: the strip is labeled IP68 . It resists water, dust, UV rays, and the most common chemicals, making it ideal for terraces, gardens, facades, decorative tub surrounds, and bathrooms. According to the manufacturer's data sheet, the end caps are IP67. The power cable comes out of a waterproof screw connector. If you cut the neon, close the end with a suitable cap to maintain protection. Indoors, you can use it without the aluminum profile: the silicone already acts as a diffuser.

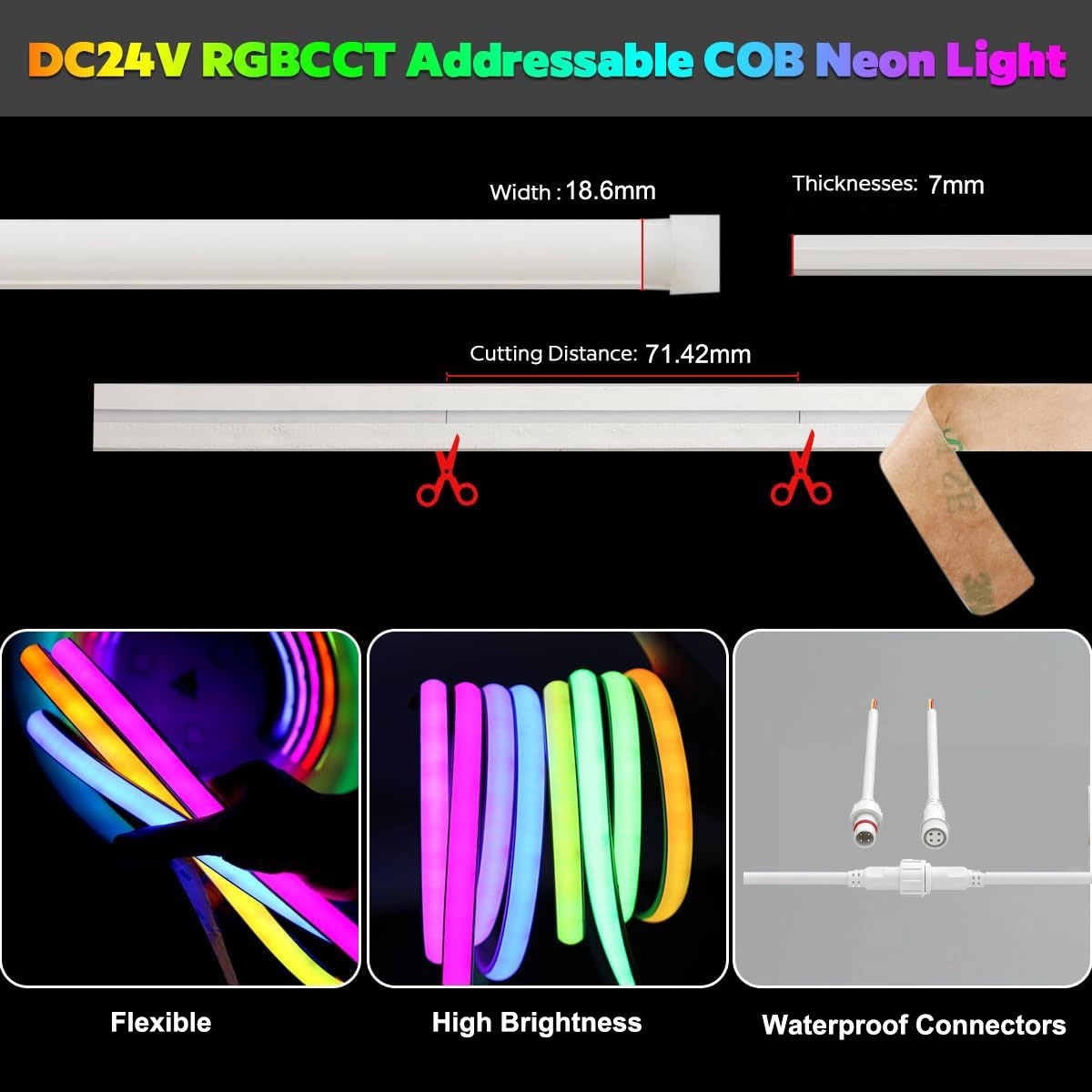

Profile 18.6 × 7 mm, 14 segments per meter and watertight connectors
The profile is 18.6 mm wide and 7 mm high: it fits under a piece of furniture, inside a groove, or on a wall without being noticed. Every 71.42 mm there is an addressable segment, that is, 14 per meter, where you can cut. The chips manage 256 levels per channel, so color and brightness transitions are smooth. The circuit is double-layered copper, designed to reduce voltage drop and disperse heat. The neon tube can be bent by hand and follows curves and angles. The cable ends in a waterproof connector that screws on, without soldering.
Colors, whites, and effects for living rooms, gaming, TV, and study rooms
With a compatible controller, the neon light becomes a light board. You can slide the colors along the profile, create rainbow gradients, or turn on only certain segments. When you want a normal light, switch to whites from 2700 to 6500K , with a color rendering index above 90. In the living room , it outlines the ceiling, creates a colorful atmosphere behind the TV or gaming desk, and provides a soft light in the kitchen and dining room. To power the entire coil, you need a 24V power supply of at least 130W.

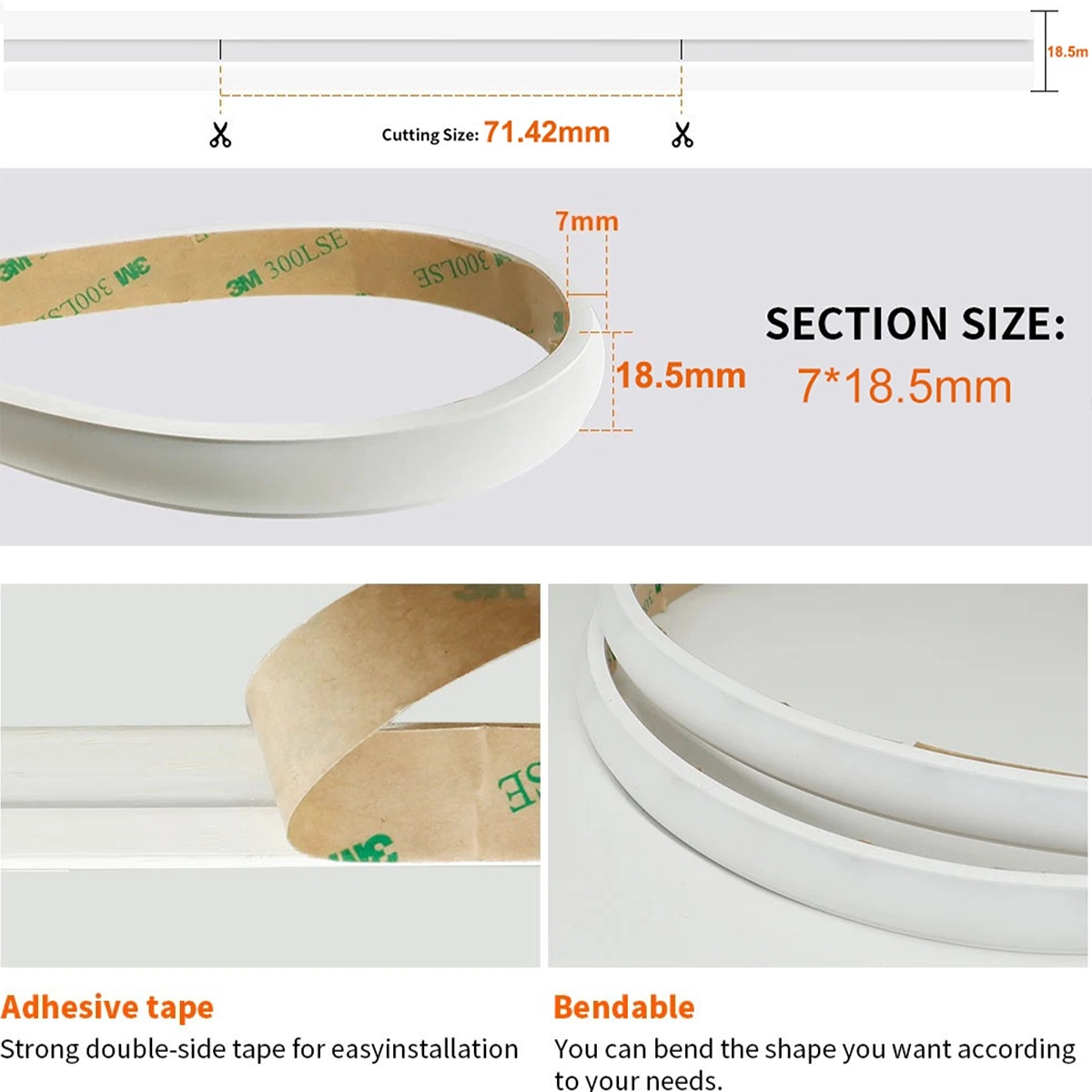

Easy installation: cut every 71.42 mm, 3M double-sided tape and folding profile
Installation is simple. The neon is cut along the signs every 71.42 mm , the length of a segment, and the remaining segment continues to function. There's 3M double-sided tape on the back: clean the surface, remove the film, and press. On rough surfaces or outdoors, it's best to add clips or a support profile. The silicone is soft and bends by hand, so it can follow curves, lettering, and contours without tools. Before installing it, test the connection with the controller and power supply to verify the signal direction and colors.

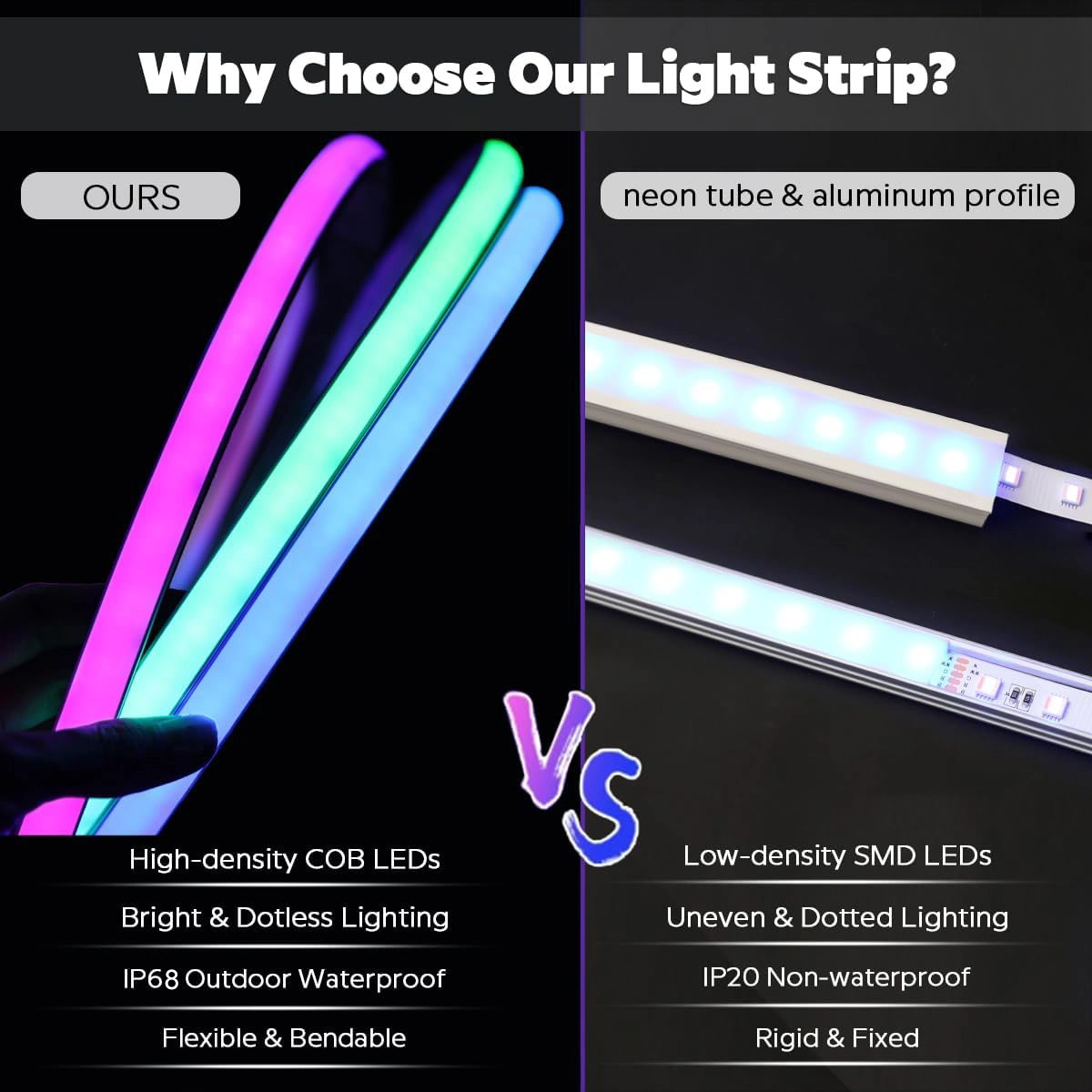

COB neon versus SMD strips in profile: continuous and flexible light
SMD strips inside an aluminum profile display individual LEDs as dots, are rigid, and often only IP20 rated. COB neon has LEDs packed tightly behind the silicone and provides a continuous, uniform light, without visible dots. It's IP68 rated , so it can also be used outdoors, and can be bent to follow any shape. Compared to a traditional RGB neon, it adds two true whites, warm and cold, and segment control. If you need a strip to fit inside a profile, there's the COB IC RGBCCT strip with 840 LEDs per meter .

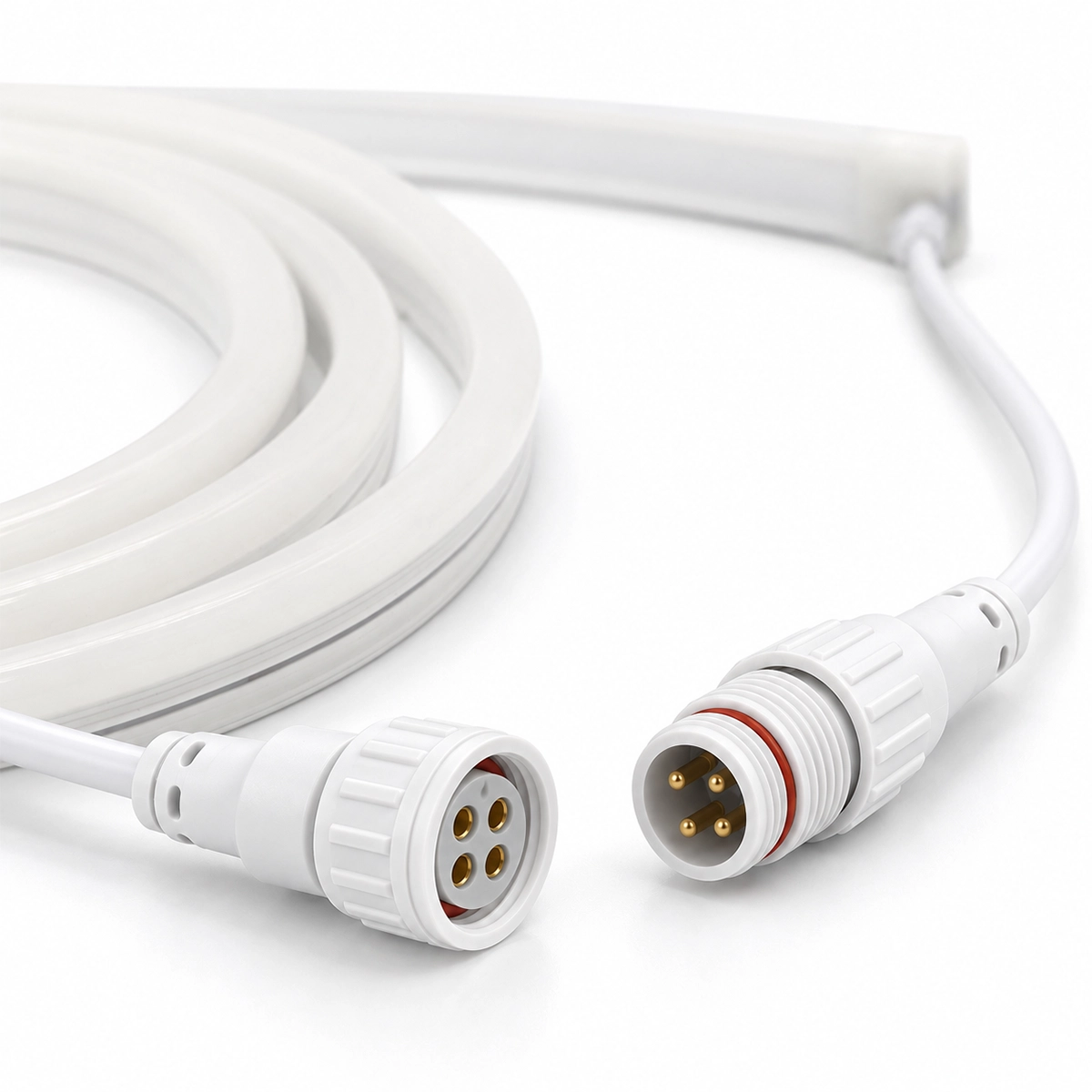

Four-pin connector and 24V power supply up to 130W
The 250 mm cable ends in a four-pin, round, waterproof connector with a screw-type lock. There are four wires: red +24 V , green DI data, blue BI reserve data, and black ground. The signal enters from the DI side and travels along the strip. The 5-meter reel consumes up to 26 W per meter , or 130 W with all channels at maximum. Choose a 24 V power supply with some margin. The manufacturer recommends uniform lighting with power supplied from both ends: for longer lengths, it's best to also supply 24 V to the end.

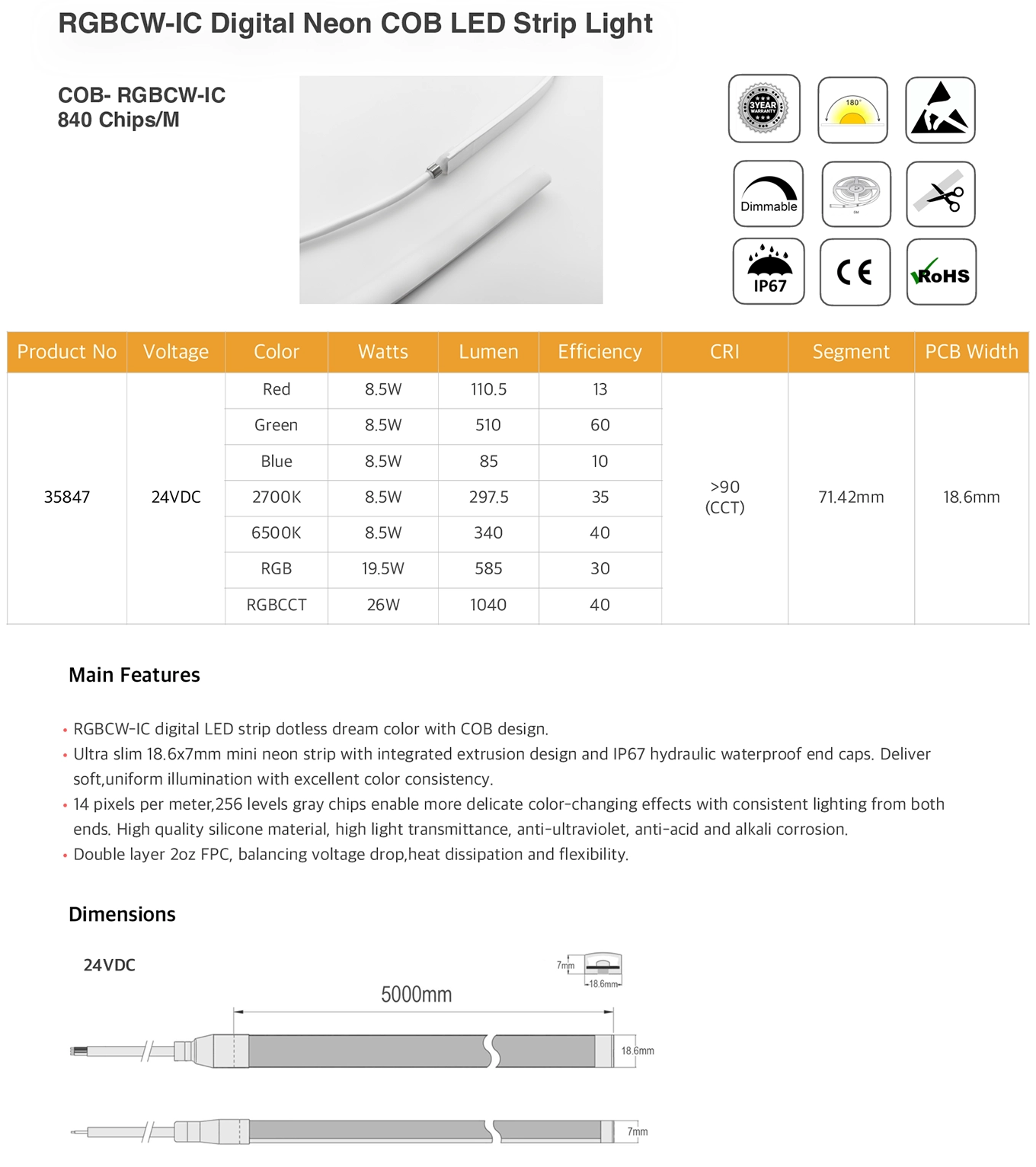

Technical data sheet: consumption and lumens of each RGB and white channel
Frequently Asked Questions
What controller do you need?
An SPI controller that supports the WS2805 chip in RGBCCT mode. The Tuya SPI WiFi + RF LED Controller in our catalog supports it. The controller is not included.
Is a regular RGBCCT controller okay?
No. The five-channel RGBCCT controllers are for non-addressable strips. This neon receives a digital signal on the data wire.
Can it be used outside?
Yes. The profile is IP68 according to the label, made of UV-resistant silicone. The end caps are IP67 according to the manufacturer's data sheet.
Where can it be cut?
At the marks every 71.42 mm, at the end of each segment. If you cut, close the end with a suitable cap to maintain protection.
How many addressable segments does it have?
Fourteen per meter, seventy on the 5-meter reel. Each segment has red, green, blue, warm white, and cool white.
What power supply do you need?
One at 24 V. Neon consumes up to 26 W per meter, so 130 W for the entire coil: choose a power supply with some headroom.
What is the blue BI wire for?
This is a spare data line. The main signal comes in from the green DI wire; follow the controller's wiring diagram for connection.
What white does it do?
From 2700 K, warm white, to 6500 K, cool white, with a colour rendering index greater than 90 on whites.
Tuya-35487
Data sheet
- Colors
- RGB+CCT
RGBCCT IC - Voice Control
- None
- Power
- 26W
- input voltage
- 24V DC
- Protection Rating
- IP68
- Length
- 5 meters
18.6mm - Color Temperature
- 2700-6500K
- LED type
- COB
IC WS2805 - LED per Meter
- 840 Led/m
- Cutting length
- 71.42 mm
- LED Chip Type
- Neon
- Pixel
- 14 Pixels per Meter
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Lights & LED
- Home Assistant integration
- Not integrable
Specific References
- UPC
- 944759323231
- EAN13
- 9447593232318
- MPN
- Tuya 35487
