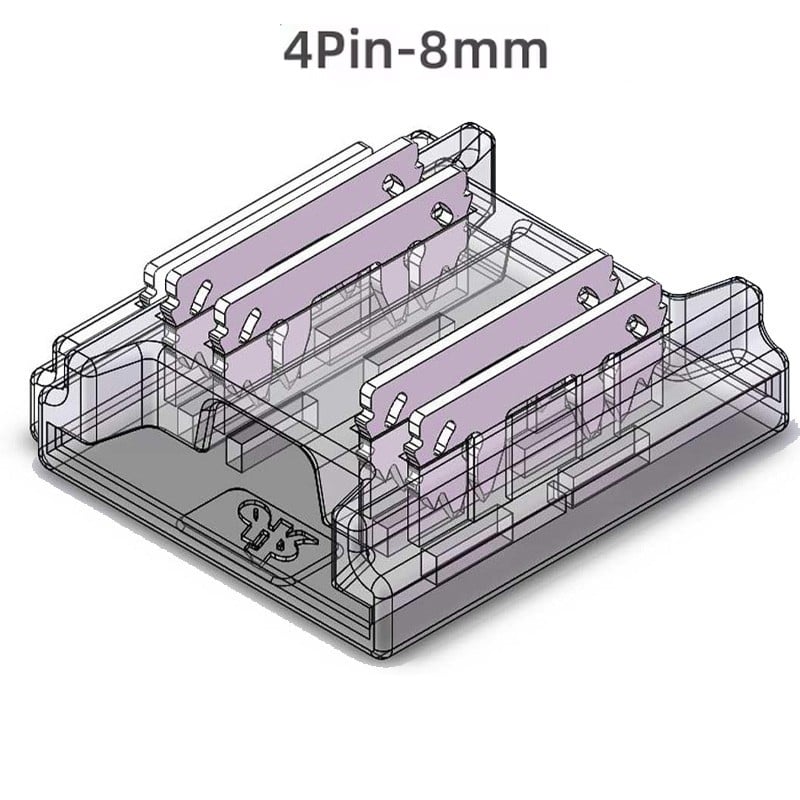

Quick Connector for 4 Pin RGB COB and SMD LED Strips

Solderless Quick Connector for COB and SMD RGB LED Strips 4 Pin

Discover the convenience and efficiency of the Solderless Quick Connector for COB and SMD RGB LED Strips 4 Pin

8 and 10mm , a must-have for any lighting project. Designed to simplify the installation of your

LED strips, this connector offers a 4 in 1 solution that allows for a smooth and reliable connection , perfect

for a wide range of applications. Thanks to the advanced " Pierce to contact " technology (IDC connection),

This connector ensures a continuous and reliable connection of the LED strips , without interruptions.

4 in 1 Quick Connector

This quick connector offers a variety of functions, thanks to its ability to connect different configurations

of LED strips and power cables: from COB LED Strip to COB LED Strip; from SMD LED Strip to LED Strip

SMD; from LED Strips to Power Cable to bend the connection; from Power Cable to Power Cable

power supply. With versatile application, it is the best 4 Pin connector for flexible COB light strips

8 and 10 mm monochrome and common SMD flexible tapes with different quantities of LEDs , offering flexibility and

ease of use for a wide range of lighting projects.

Ultra Thin

The ultra-slim, low-profile design allows this connector to fit perfectly even in spaces

narrower , such as aluminum channels and grooves on furniture. Made of high quality materials, such as

Copper pin, and compatible with high quality COB LED strips, this connector ensures reliable and long-lasting performance.

Its installation is a breeze

No complicated tools are required, just insert the LED strip into the connector and secure it with a light pressure.

Thanks to Pierce to contact technology (IDC connection), the conductor penetrates the PCB to conduct current between the

light strip segments, ensuring a stable and secure connection that does not interrupt the continuity of the LED light .

Wide Applications

Support high current up to 3~24V/ 5A, it is important to check whether the PCB light strip can

support 5A using thick conductor , otherwise it may cause damage to the light strip.

Compatible with:

810 LEDs per Meter RGB COB LED Strip DC12V 5 Meters

840 LEDs per Meter RGB COB LED Strip DC24V 5 Meters - Sonoff L3 RGB

Sonoff 5050RGB - Tuya Smart RGB Led Strip Kit - Tuya 4 Pin RGB LED Strip

How to use the connector to connect COB strips?

1. Flip the connector over so that the movable cover side is facing outward.
2. Hold the corner of the connector with your left hand so that the connector has an upside-down shape.
3. Hold the LED light strip sections in your right hand so that the LED part of the light strip is facing you.
4. First insert the light section through the top connector input downwards. Close the movable transparent cover.
5. Then insert the other light section through the other input until it is as close as possible to the first light strip. Close the other transparent cover to complete the connection.

How to use connectors for a normal SMD 5050 light strip?

1. Please refer to steps 1-3 of COB strip installation above.
2. Insert two sections of the 5050 light strip into the ends of the connector so that the connector PIN lines up with the solder points on the light strip.
3. Close the transparent cover to complete the connection.
