Tuya 12V Outdoor Wired Alarm Siren
€7.90
Expert4House – Smart Home Automation
Tuya 12V Indoor Wired PIR Detector for Alarm Systems
€7.91
Tax included
No review at the moment
- Wired 12V indoor PIR detector: passive infrared motion sensor designed for wired indoor alarm systems.
- High-sensitivity dual-element PIR: sensor with dual rectangular element, engineered for precise detection and low noise.
- Wide 110° coverage up to 10.6 x 10.6 m: ideal for monitoring rooms, entrances, corridors, and indoor areas.
- Recommended installation height 2.1 to 2.7 m: optimized to operate at 2.1 m, with PCB height adjustment to suit mounting.
- Power supply 9–16V DC: compatible with 12V DC alarm systems, with a maximum consumption of 31 mA.
- N.C. alarm output: normally closed output up to 28 V DC / 0.15 A, suitable for connection to compatible control panels.
- Integrated anti-tamper switch: dedicated N.C. contact to signal opening or tampering of the sensor.
- Configurable green detection LED: the LED lights for 3 seconds when motion is detected and can be enabled or disabled via jumper.
- Selectable Fast / Slow mode: set the sensor to fast or slow mode to better adapt detection to the environment and reduce false alarms.
- Second-generation Fresnel lens: equipped with a segmented LODIFF lens, designed for reliable and uniform detection.
- Power-on self-test: when powered, the detector runs an automatic test of the processor, memory, and relay, with the LED flashing for about 35 seconds.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
Indoor wired PIR sensor for reliable and accurate detection
Protect your spaces with a sensor designed to offer precise motion detection, simple installation, and immediate integration into wired alarm systems. This 12V indoor wired PIR sensor is ideal for homes, offices, shops, hallways, and other spaces requiring reliable, continuous surveillance. Thanks to its wide 110° detection angle , high-sensitivity dual PIR element , and compatibility with wired zone alarm control panels and our smart alarm control panels , it represents a practical and professional solution for expanding the coverage of your system. A compact, stable, and versatile device, designed to improve security simply and effectively.
Compatibility with wired alarm control panels
The sensor is designed to work with wired zone alarm control panels and is also suitable for integration with our compatible smart alarm control panels . Once properly connected, it detects motion in the protected area and sends a signal to the control panel, which manages the alarm event based on the system configuration. A practical solution for expanding system coverage and providing more comprehensive, reliable, and professional protection.

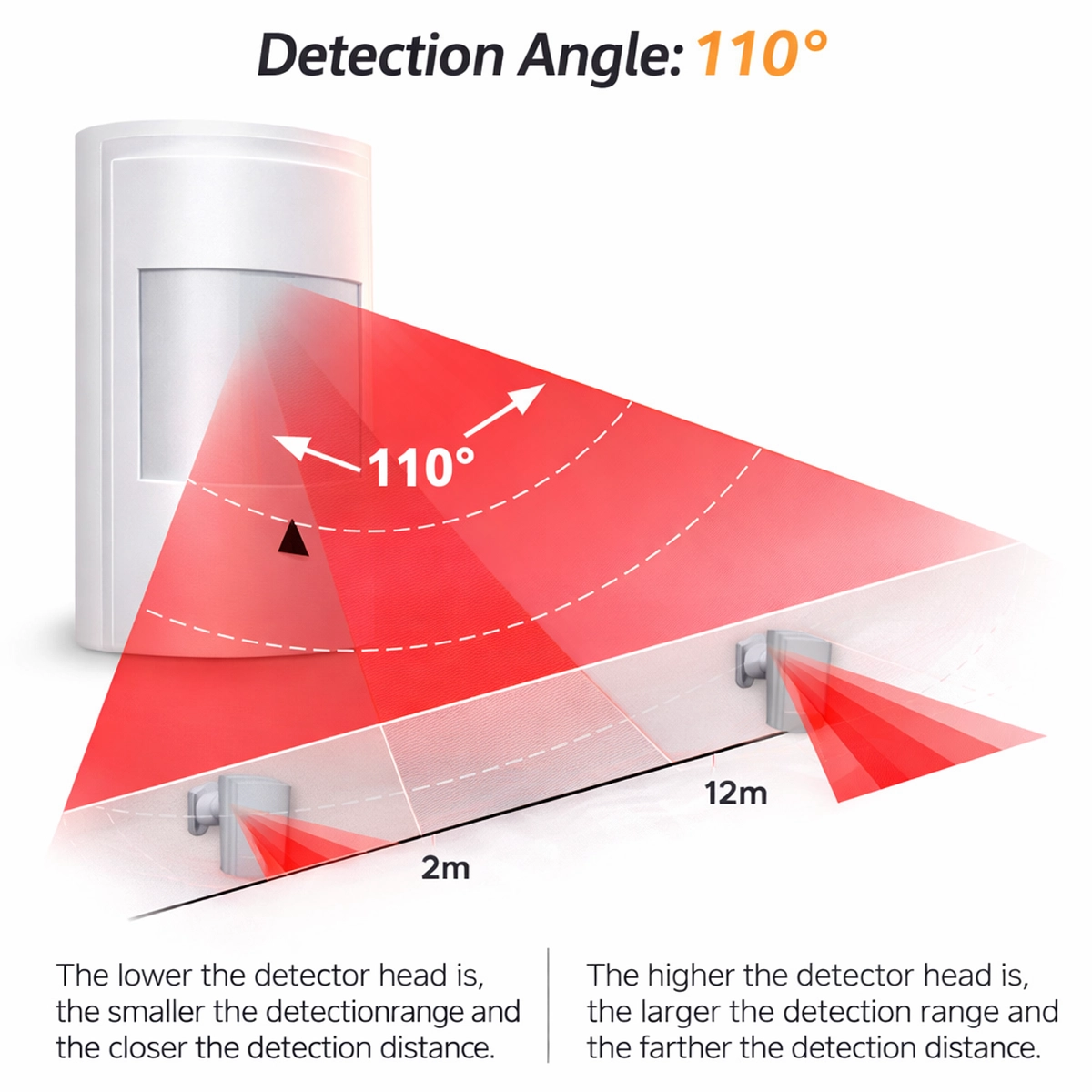

Wide 110° detection angle
The sensor offers a 110° detection angle , ideal for wide and precise monitoring of rooms, entrances, corridors, and other internal areas requiring protection. Depending on the installation height, it can better adapt the coverage of the monitored area, helping you achieve more effective detection based on the context. This is an important feature for creating more reliable and well-distributed alarm systems.
Low power consumption and interference resistance
Suitable for different environments
Thanks to its compact design and wide coverage, the sensor is suitable for various indoor installation contexts such as homes, offices, corridors, shops, professional studios, warehouses and other environments requiring protection . It is a versatile solution for creating more comprehensive alarm systems, with motion detection designed to adapt to different spaces and many daily security needs.

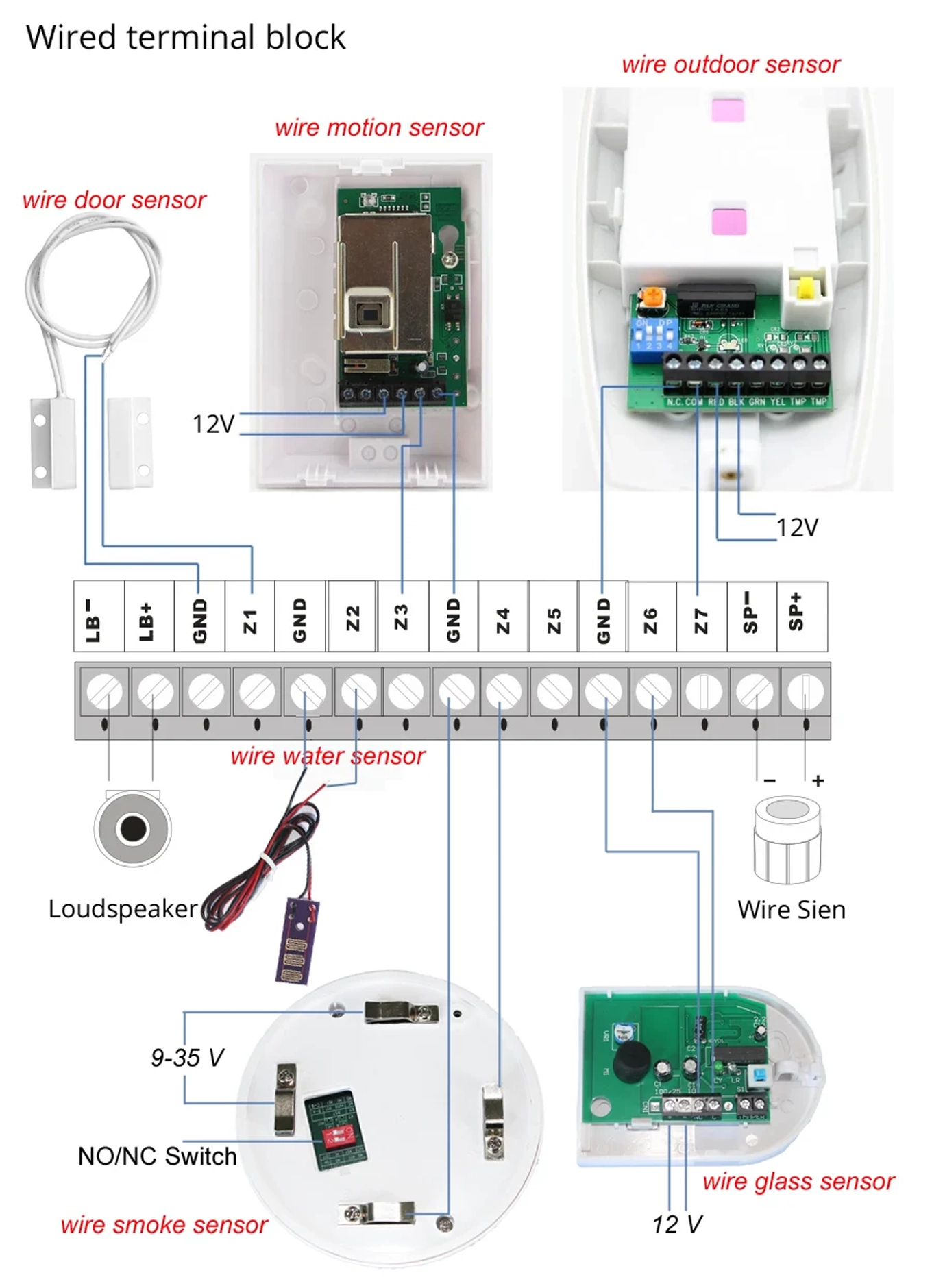

Simple connection to wired zone control panels
The sensor is designed to be integrated into wired zone alarm systems , connecting to the control panel's dedicated terminals based on the system configuration. This makes it suitable for professional installations alongside other wired devices such as door/window contacts, external sensors, smoke sensors, sirens, water sensors, and other compatible detectors . An ideal solution for creating more comprehensive, organized, and easily expandable security systems over time.
Frequently Asked Questions
First, check three things: proper power supply, wiring to the control panel, and installation height. The sensor typically operates at 11–16 VDC and is designed to offer the best coverage when mounted between 2.1 m and 2.7 m, with optimal calibration at 2.1 m. After installation, it's always a good idea to perform a walk test to verify the actual detection area.
The most common causes are an incorrect mounting position or a disturbed environment. Avoid reflective surfaces, direct airflow from fans, windows, or vents, sources of steam or oily fumes, and objects that cause temperature variations such as radiators, refrigerators, ovens, or infrared sources. Additionally, you can set Slow mode with jumper J2 in areas most prone to false alarms.
Fast mode is the default and is recommended for most installations. Slow mode is useful in environments where the risk of false alarms may be higher, as it requires a greater amount of movement to generate an alarm. The change is made on jumper J2 inside the metal shield.
The sensor offers standard 110° coverage up to approximately 10.6 × 10.6 meters. However, actual coverage depends greatly on the height, position, and tilt of the PCB.
The tamper switch detects the sensor's opening or tampering. If the tamper switch is connected to the control panel and the cover isn't closed properly, or the wiring is incorrect, the control panel may signal tampering even if there's no movement.
Standard deliveries to Italy generally take 24-48 hours from the time the package leaves the warehouse.
Orders confirmed by 3:30 PM on weekdays (Monday-Friday) are processed and shipped the same day.
Orders placed after 3:30 PM or on weekends or public holidays will be processed on the next working day.
Yes, we ship internationally to the European Union and several non-EU countries via couriers such as UPS Standard and DHL Express.
For the EU, with UPS Standard the average times are 2-3 working days .
With DHL Express, usually 1-2 business days .
Tuya-PT101
Data sheet
- Power supply
- DC 9-16V
- Working temperature
- -20°C to +50°C
- Voice Control
- None
- Dimensions
- 90x66x52 mm
- Communication Protocol
- Wired
- Installation
- wall or ceiling mounting (suggested)
- Angle of View
- 110°
- Protection Rating
- IP20
- Detection range
- Up to 10 meters
- Installation height
- From 2.1 to 2.7 meters
- Tamper output
- NC
- Ideal for Automation
- Alarm System
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Alarm & video surveillance
Sensors & detection - Home Assistant integration
- Not integrable
Specific References
- UPC
- 736342961470
- EAN13
- 0736342961470
- MPN
- Tuya-PT101
