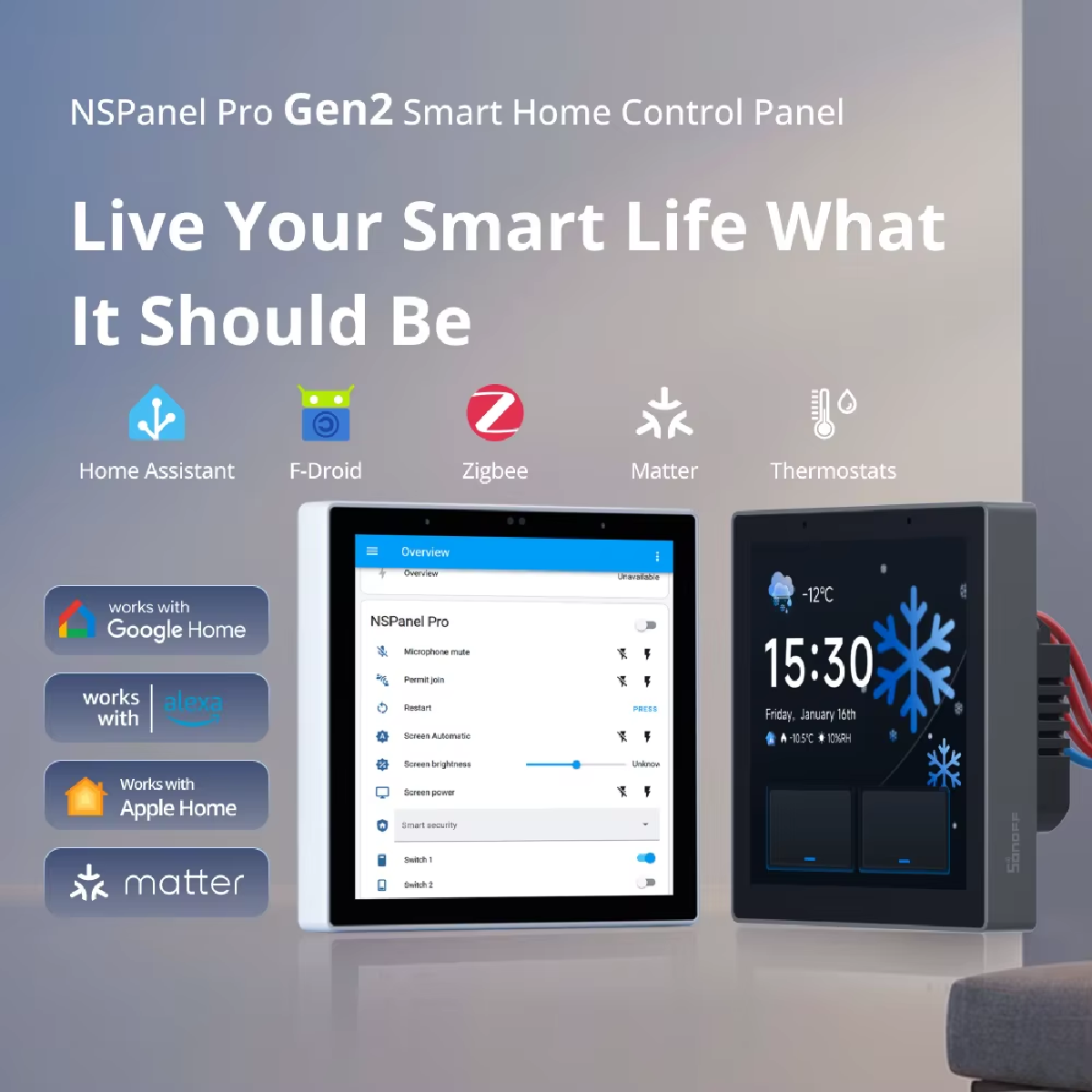

Sonoff NSPanel Pro Gen2 Smart Control Panel with Dual Relay Type 86

In rare cases, devices with factory firmware v4.4.3 may experience delays in updating time or weather information. This does not affect the device's core control functions, but for a better user experience, we recommend updating your device to the latest firmware via OTA with the issue resolved: On the device display: Swipe down the quick menu → Settings → About → Software update. Then check for updates and complete the update. Workaround: If you are temporarily unable to perform the OTA update, restarting your device (by turning it off and on again or using the restart option in Settings) usually restores proper time and weather display functionality.

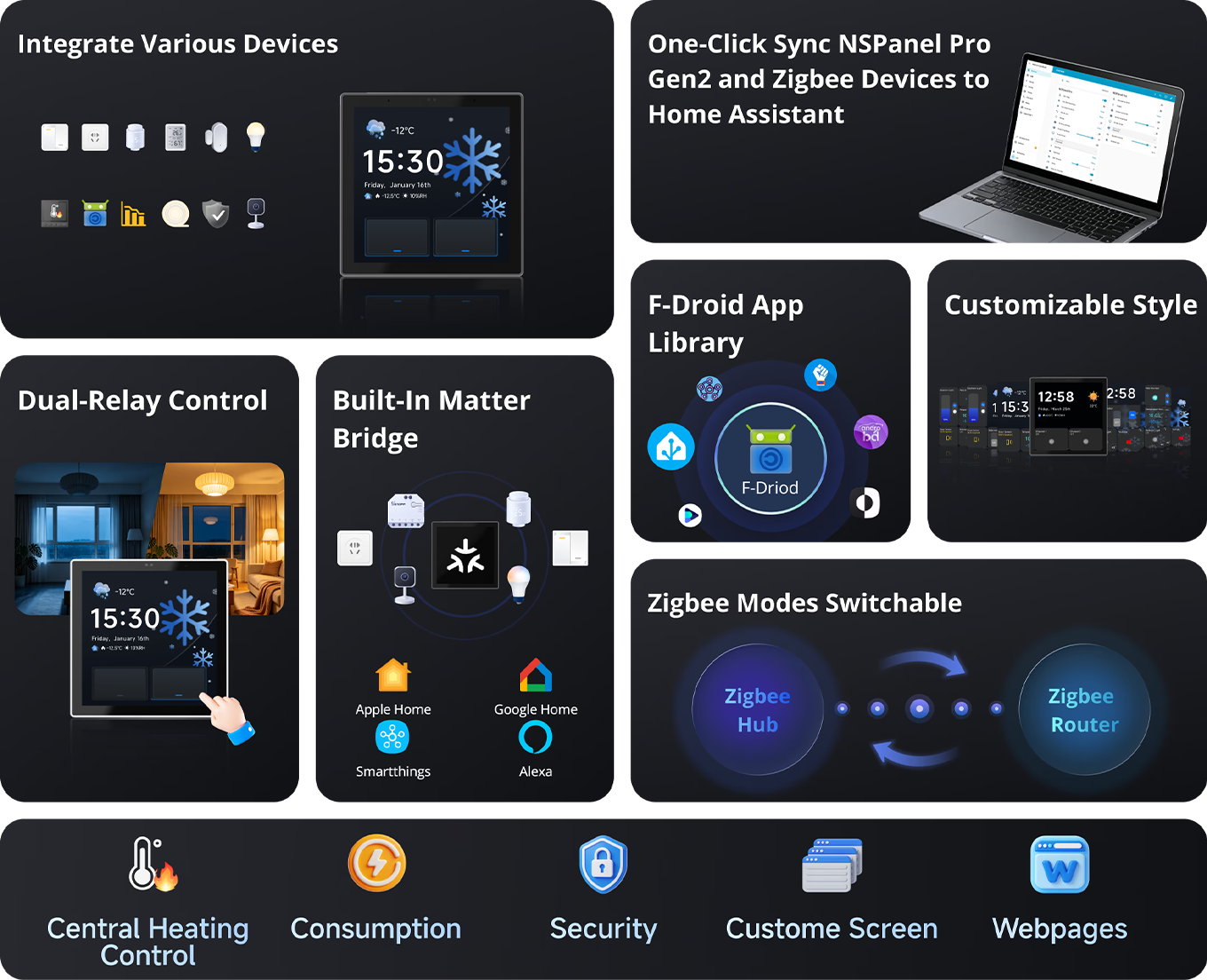

NSPanel Pro Gen2 integrates a Zigbee Hub and a Matter Hub, supporting the addition of Zigbee and Matter devices. It supports adding Wi-Fi devices under an eWeLink account via "Split-screen setup". It supports the addition of Smart Light sub-devices. It supports the addition of cameras: SONOFF cameras, RTSP/ESP32 cameras, and eWeLink cameras.

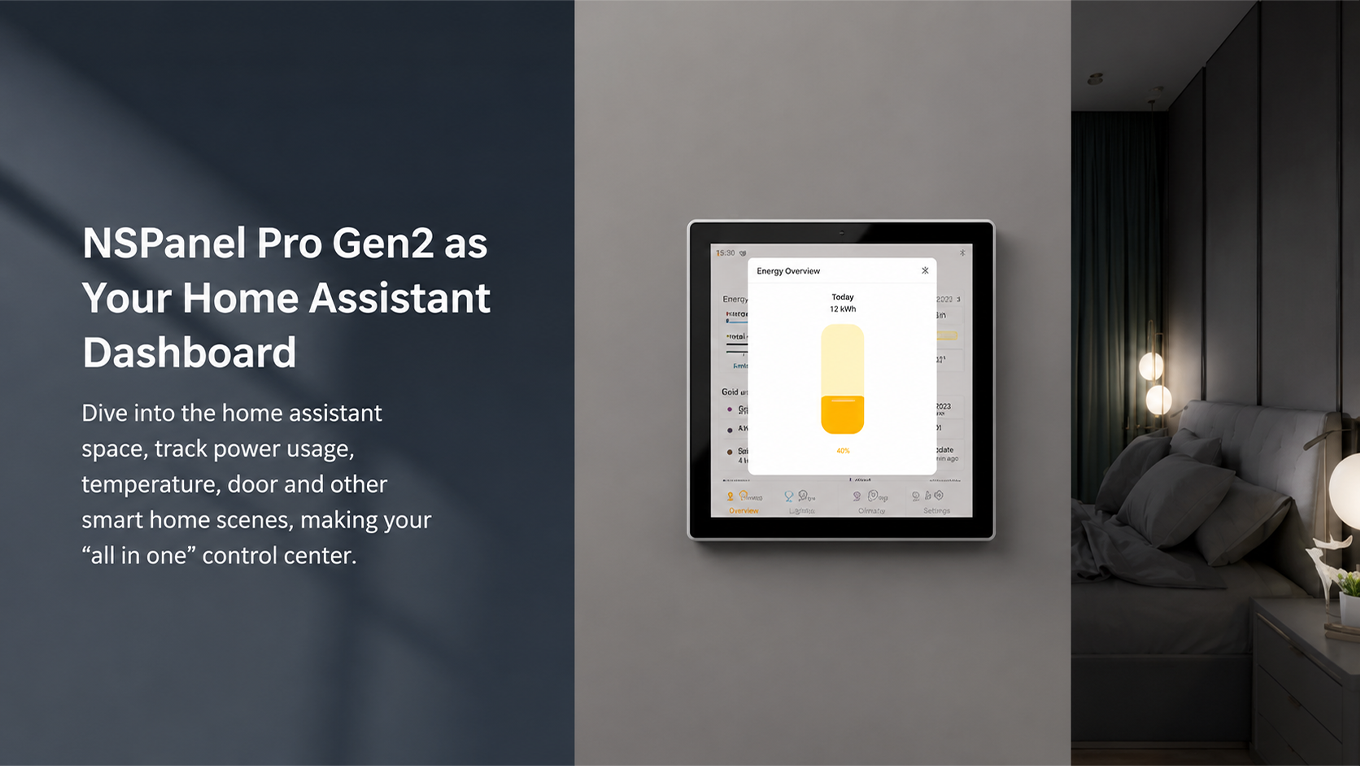

Home Assistant can be accessed and used in the following ways: Download the Home Assistant app from F-Droid to access and control HA devices from the panel. Use the "Webpages" function to access Home Assistant's IP address, allowing you to control HA devices from the panel.

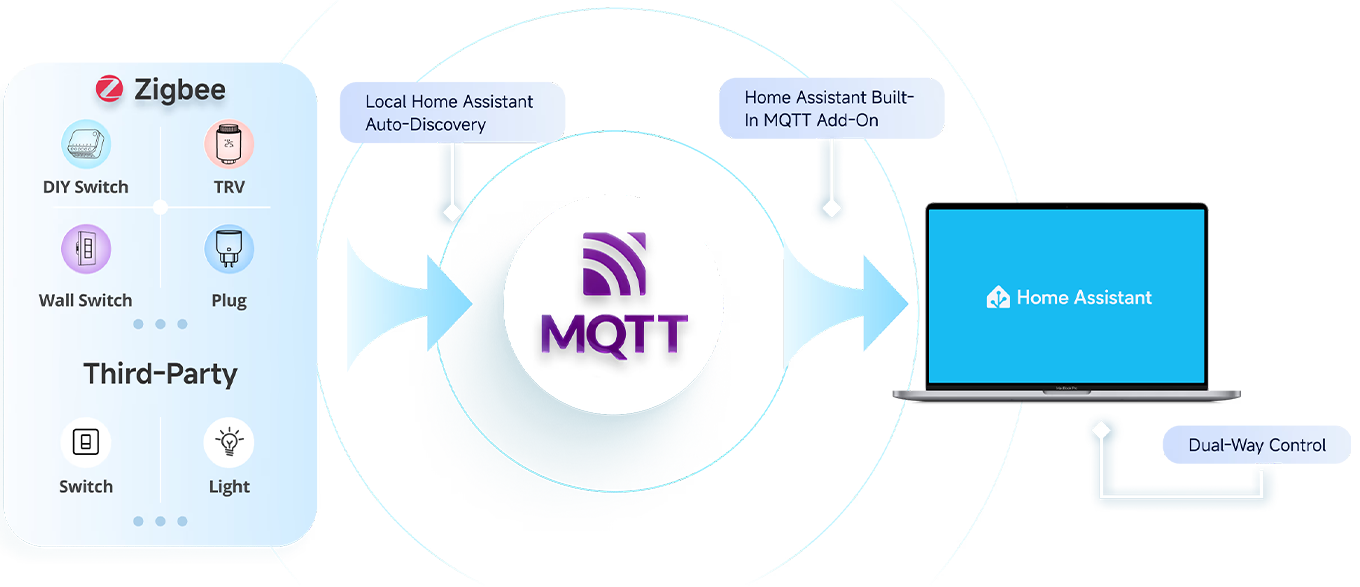

Yes. By configuring the HA information in the eWeLink app, the NSPanel Pro Gen2 itself and its paired Zigbee secondary devices can be synced with Home Assistant, allowing control of both the NSPanel Pro Gen2 and its secondary devices within Home Assistant.

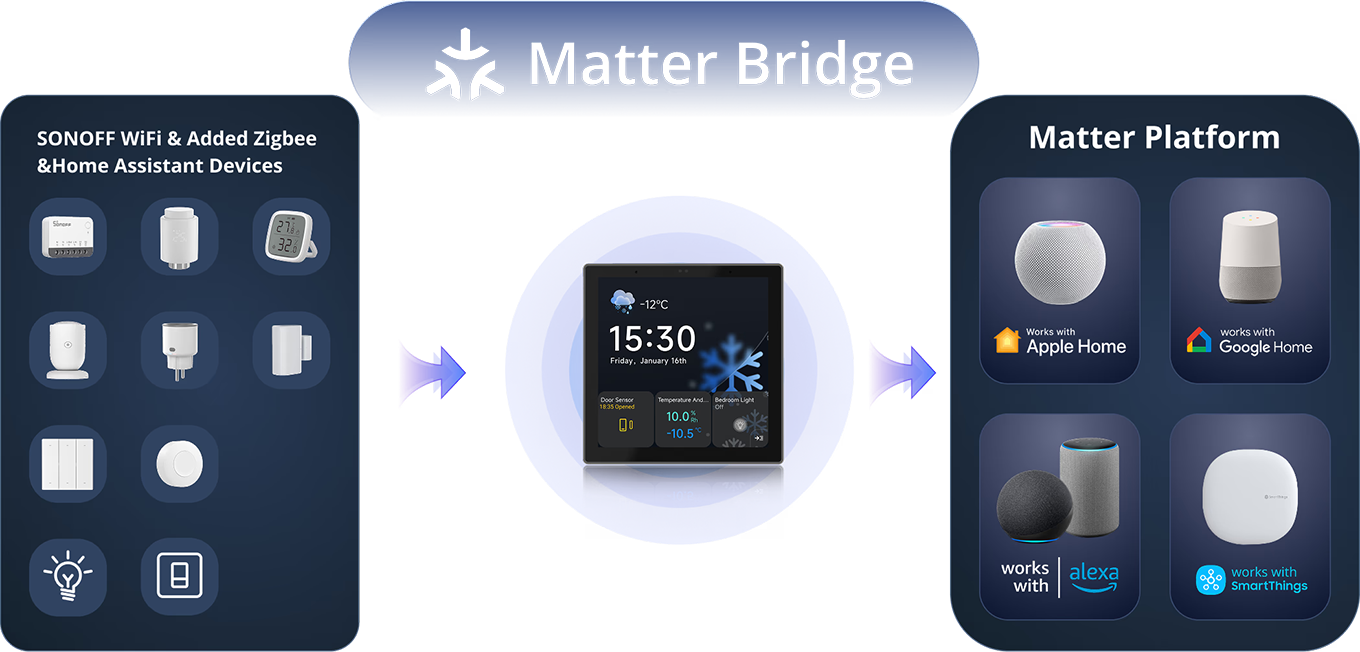

Yes. The Matter Bridge feature allows Wi-Fi and Zigbee devices under an eWeLink account, or devices in Home Assistant, to sync with other third-party Matter platforms for control.

Yes. It supports heating control for individual rooms/zones as well as for whole-house central heating systems.

Using the Web Pages feature, you can enter specific URLs into the eWeLink app to display quick-access tabs on the dashboard.

Yes. NSPanel Pro Gen2 includes F-Droid. You can download official third-party apps from the F-Droid store to use on the panel, including Home Assistant and various other interesting apps.

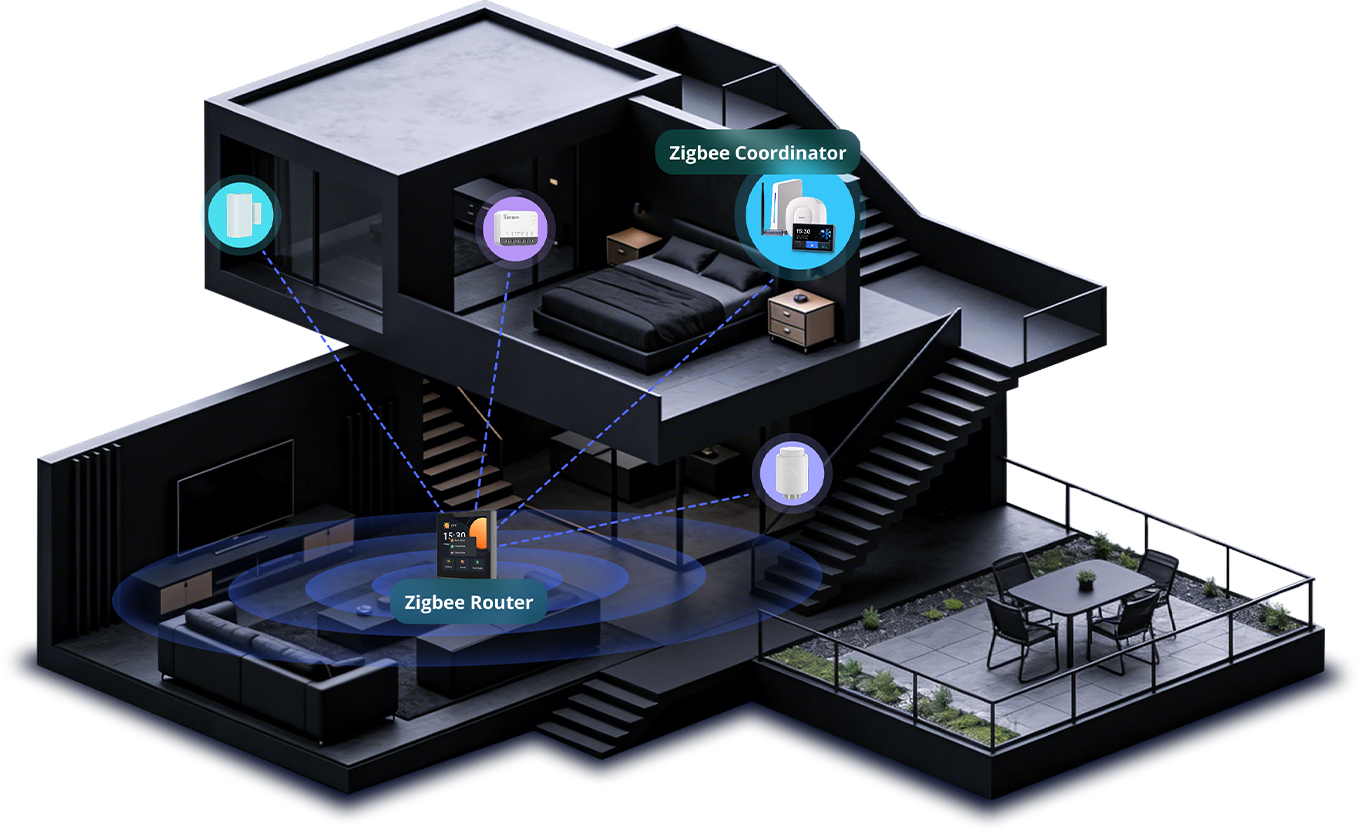

It supports two modes that can be switched freely: Zigbee Hub mode and Zigbee Router mode.

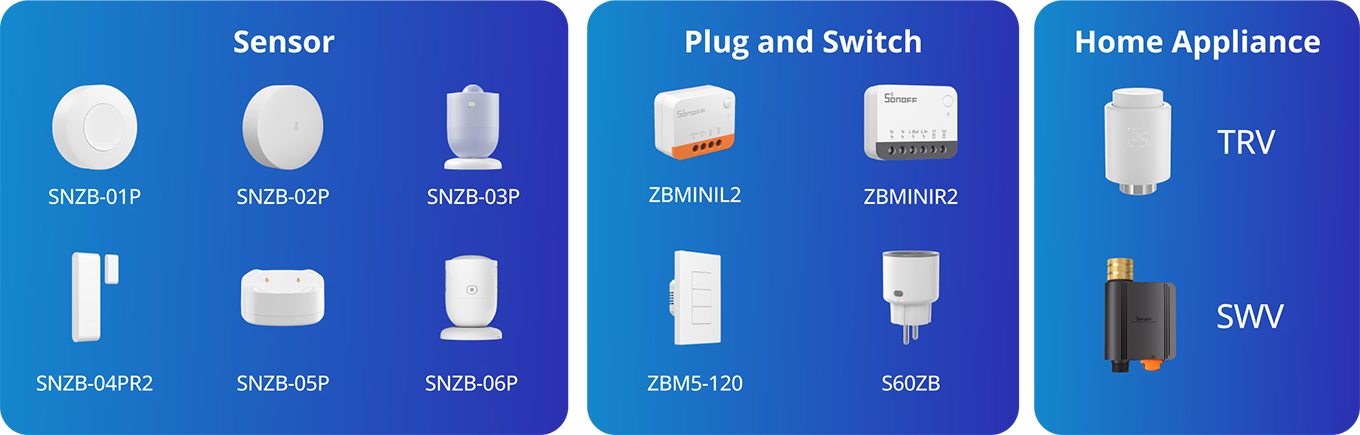

As a Zigbee Hub, it can add secondary Zigbee devices of any brand, which are then displayed directly on the panel.

As a Zigbee router, it can act as a repeater to extend the signal coverage of a Zigbee hub.

Yes. Home Assistant or other third-party apps can be set as the home app. NSPanel Pro Gen2 will launch them when powered on without affecting its own functions (such as scenes, security, alarms, Zigbee mode, etc.).

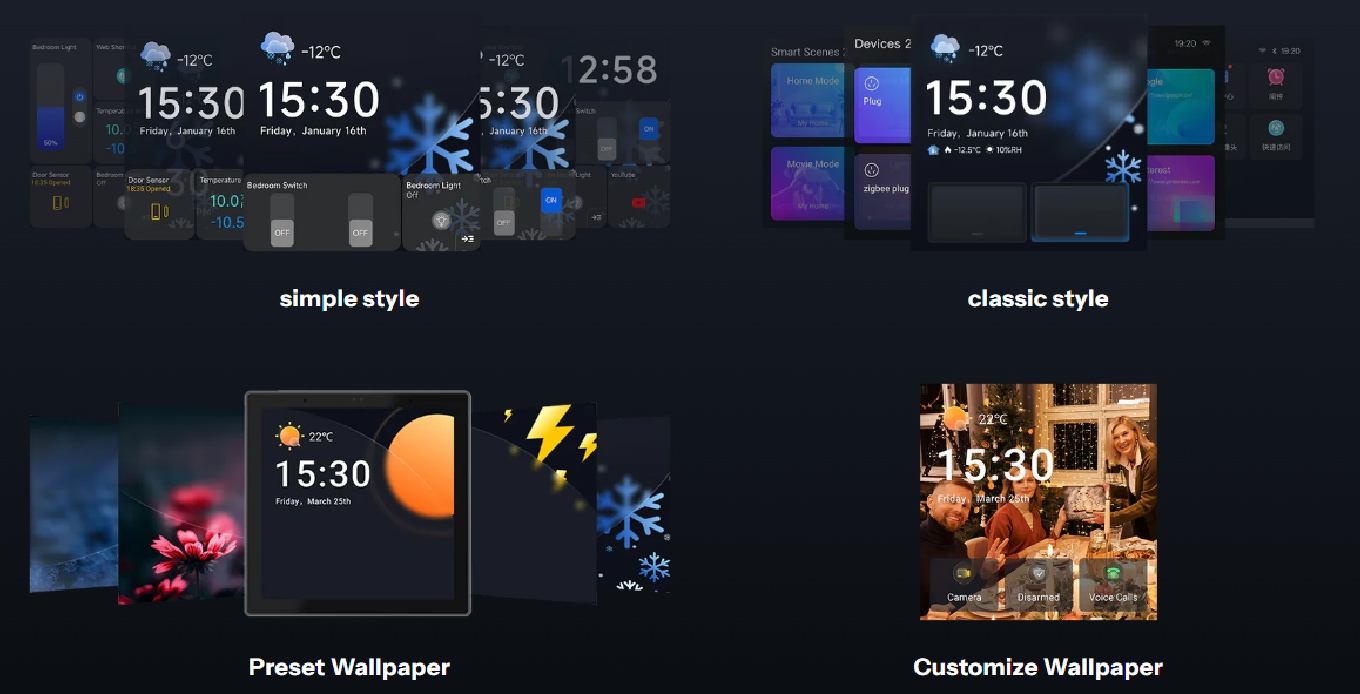

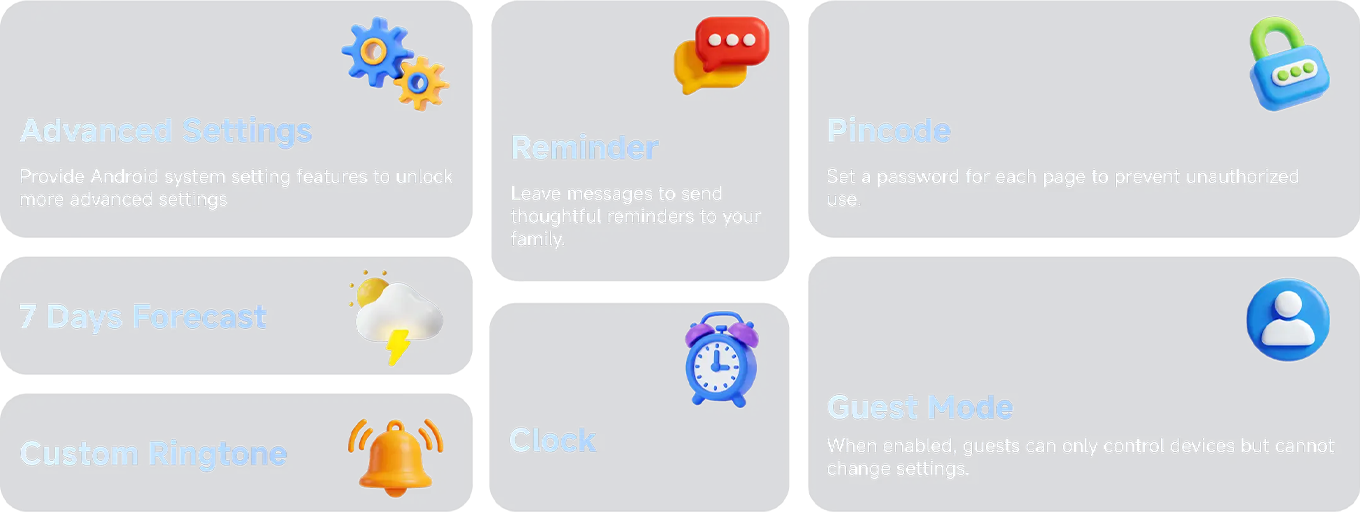

Yes. It supports custom ringtones, wallpapers, and screensavers. Users can upload and configure their favorite ringtones and wallpapers. The home screen allows you to configure device widgets of different sizes and customize split-screen layouts.
