Reference: Beca BAC-002ALW Nero
Brand: Beca

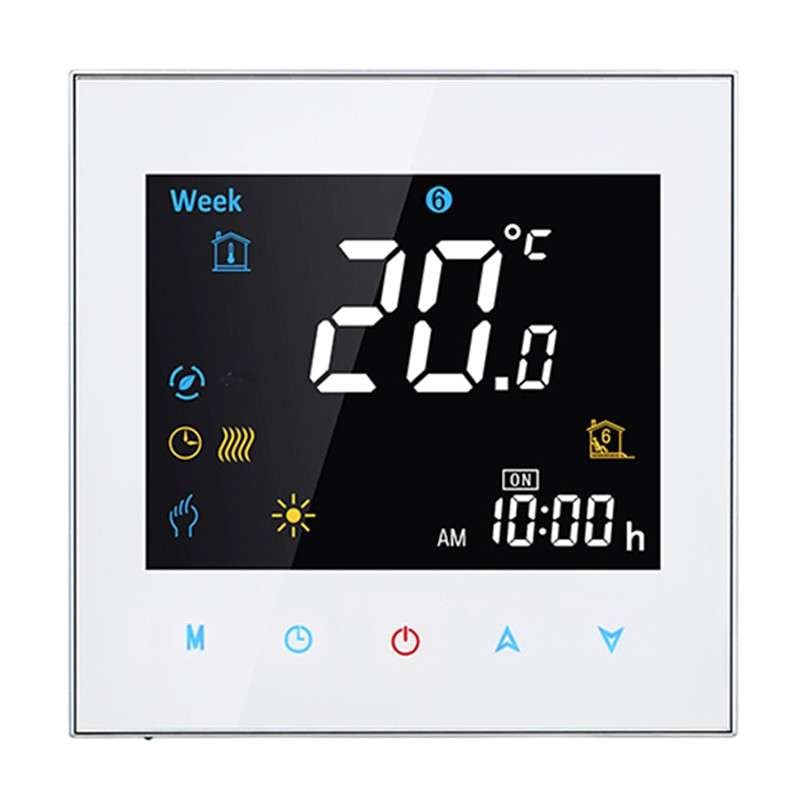

WiFi Thermostat Beca BAC-002ALW Fan Coil
WiFi thermostat for 2-pipe air conditioners control
The intelligent heating and cooling solutions of Beca thermostats offer countless advantages over traditional systems to save on heating your home while maintaining great comfort.
The fundamental difference of these WiFi thermostats compared to a traditional system is that of being able to manage the heating wherever you are directly from your smartphone.
The smart WiFi heating thermostat supports full automatic programs or manual setting.
You can use the manual control or connect to Wi-Fi and manage the times and temperature of your home thanks to your Android and iOS smartphone via the My Beca Smart application, but also via voice commands given directly from the smartphone.
Voice control and shared device function allows centralized control or multi-channel control, providing maximum convenience to you and your family, no limit to add rooms and support smart scene
Compatible with most smart applications on the market: Google Home, Alexa, IFFT, Tmall Genie.
Programmable thermostat in 6 periods: connected to Wi-Fi and the My Beca Smart app, controllable from anywhere and at any time.
Designed exclusively for fixed wall installation.
Discreet and elegant design: the new BAC-3000 device integrates perfectly into any environment, even those with the most modern design. Inspired by the classic industrial design, the discreet and elegant line of the square touch screen gives the device a clean and minimalist look.
Reduction of energy costs: the features of the Smart app allow you to program the operation of the system in order to adapt to your rhythms of life and reduce energy costs.
System operation diagram and wiring diagram (2 pipes):
Two pipes use the same piping system for cooling and heating.
It can save on investment costs and reduce maintenance.
It is a control method commonly used in air conditioning systems, but it cannot meet the needs of annual air conditioning systems.
The principle of operation of the two pipes: chilled water from the freezing station and hot water from the heat exchange station are combined on the main air conditioning water supply pipe, and cold and hot water are used in the same pipeline through the changeover valve.
Technical features |
|
---|---|
Sensor | NTC |
Precision | ± 1 ℃ |
Diet | 95 ~ 240 VAC, 50 ~ 60HZ |
Temperature range | 5-35 ℃ |
Fan relay amplifiers resistance: 5A | Inductive: 3A |
Resistance of valve relay amplifiers: 5A | Inductive: 3A |
Current Consumption | <1.5W |
Installation | 86X86mmx13.3 or 60mm European round box |
Timing error | <1% |
Material | PC + ABS |
Operation diagram | 2 Pipes |
Product Class | IP20 |
Wire terminals | 2 x 1.5 mm² or 1 x 2.5 mm² |
