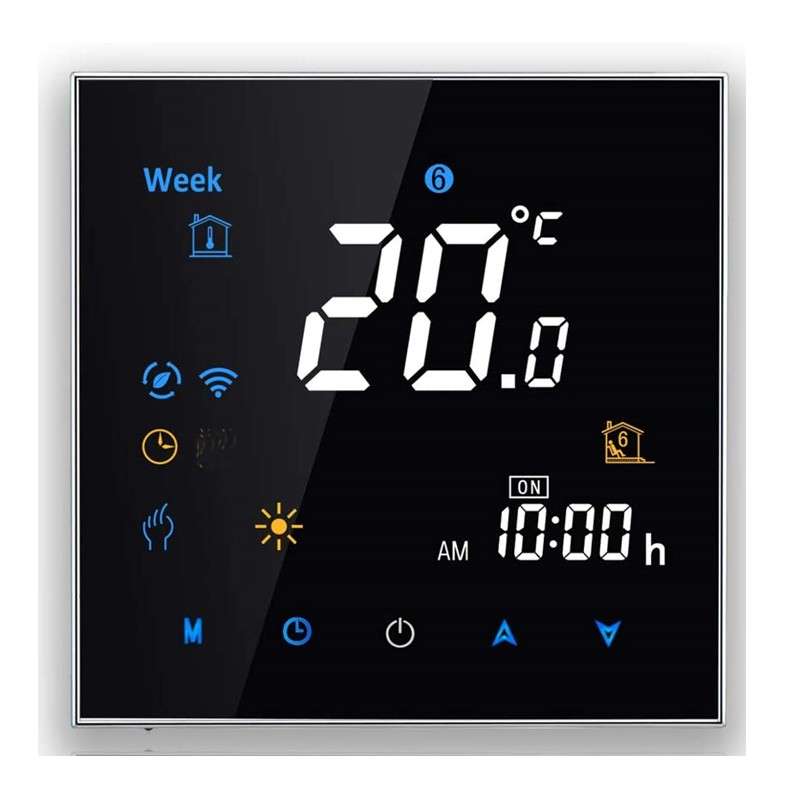

WiFi Thermostat Beca BAC-3000ELW Fan Coil
WiFi Thermostat Control Air Conditioners with 4 Pipes
Beca BAC-3000 WiFi thermostats designed for the control of air conditioners.
Beca BAC-3000 WiFi thermostat with a minimalist and modern design, with LED interface with which it interacts for the normal functions of increasing / decreasing the room temperature and choosing between automatic / manual mode.
It is a simple device, but at the same time evolved, with a wifi module equipped with a virtual graphic interface that can be used with Android and iOS smartphomes through the My Beca Smart application, but also through voice commands given directly from the smartphone.
The fundamental difference of these WiFi thermostats compared to a traditional system is that of being able to manage the heating wherever you are directly from your smartphone.
Compatible with most smart applications on the market: Google Home, Alexa, IFFT, Tmall Genie.
Programmable thermostat in 6 periods: connected to Wi-Fi and the My Beca Smart app, controllable from anywhere and at any time.
Designed exclusively for fixed wall installation.
Discreet and elegant design: the new BAC-3000 device integrates perfectly into any environment, even those with the most modern design. Inspired by the classic industrial design, the discreet and elegant line of the square touch screen gives the device a clean and minimalist look.
Reduction of energy costs: the features of the Smart app allow you to program the operation of the system in order to adapt to your rhythms of life and reduce energy costs.
System operation diagram and wiring diagram (4 pipes):
Four pipes: can flexibly realize simultaneous cooling and heating, without loss of mixing cold and heat; the flow and return pipes for cooling and heating are set separately and there are two independent systems with cold and hot return water.
The principle of operation of four pipes: cold and hot coils in all terminal equipment work independently, and chilled water and hot water are sent to each terminal equipment independently at the same time.
Technical features |
|
---|---|
Sensor | NTC |
Precision | ± 1 ℃ |
Diet | 95 ~ 240 VAC, 50 ~ 60HZ |
Temperature range | 5-35 ℃ |
Fan relay amplifiers resistance: 5A | Inductive: 3A |
Resistance of valve relay amplifiers: 5A | Inductive: 3A |
Current Consumption | <1.5W |
Installation | 86X86mmx13.3 or 60mm European round box |
Timing error | <1% |
Material | PC + ABS |
Operation diagram | 4 Pipes |
Product Class | IP20 |
Wire terminals | 2 x 1.5 mm² or 1 x 2.5 mm² |
Data sheet
- Voice Control
- Amazon Alexa, Google Home and Siri
- Mobile application
- Tuya Smart or Smart Life
- Communication Protocol
- Wifi
Specific References
- ean13
- 9504728567339
- upc
- 950472856733
- mpn
- Beca BAC-3000ELW Bianco
