Expert4House – Smart Home, Smarter Living
Tuya SPI RGB and RGBW Smart Zigbee LED Controller for 5-24V Addressable Strips
€34.90
Tax included
No review at the moment
- Zigbee LED controller for pixel strips: designed to control digital RGB and RGBW LED strips with SPI signal, adjusting colors, brightness, scenes, and effects via the Tuya Smart app.
- Compatible with 49 types of SPI chips: supports numerous addressable LED chips, including WS2811, WS2812, WS2815, SK6812, TM1809, and other documented TM, UCS, LPD, and SM models.
- Manage up to 1000 pixels: allows you to set strip length in the app from 10 to 1000 LED points, also selecting the chip and the correct RGB or RGBW color order.
- Creative segment control: divides the strip into 20 segments and enables full fill, color pen, single-segment erase, transitions, and multicolor combinations.
- Customizable dynamic scenes: offers 44 preset scenarios, over 10 customizable scenarios, and 16 lighting variations including fade, breath, flash, rainbow, flow, and chasing effects.
- Music sync via smartphone: provides 3 App music modes that use the phone’s microphone to change lighting effects to the beat, with adjustable sensitivity.
- Timer, remote control, and voice commands: lets you set multiple timers and countdowns up to 24 hours; remote control and compatibility with Amazon Alexa and Google Assistant require a Tuya Zigbee gateway.
- 5–24V power and dual SPI output: operates on a constant-voltage 5 to 24V DC supply, supports up to 8A current, and has two TTL SPI outputs.
- Optional RF remote: can be paired with a compatible 2.4 GHz RGB RF remote, such as the R9 model, sold separately and not included.
- Installation in protected environments: the IP20 rating makes the controller suitable for indoor installation or inside a properly protected enclosure.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
Smart Addressable Lighting to Create Dynamic and Personalized Environments

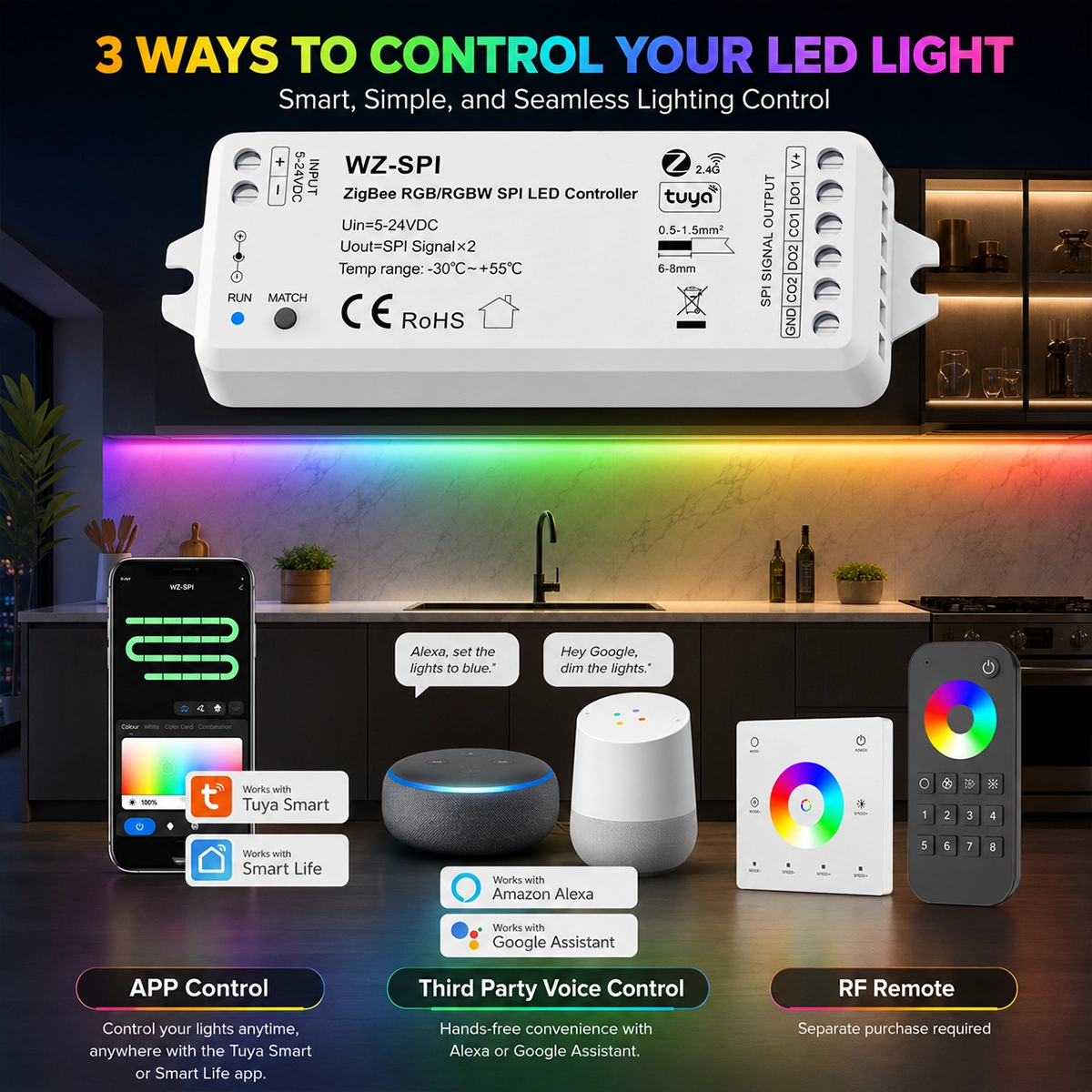

Transform a simple LED strip into a dynamic and fully customizable lighting system with the Tuya WZ-SPI Zigbee LED controller . Designed for addressable RGB and RGBW strips with SPI signal, it allows you to manage colors, brightness, scenes, segments and effects via an app, voice commands or compatible 2.4 GHz RF remote controls. The 5 to 24 V DC power supply and two SPI outputs allow for versatile configurations for homes, clubs, gaming stations, signage and decorative effects. Remote and voice control require a Tuya Zigbee gateway, while remote controls, gateway, power supply and LED strips are available separately.

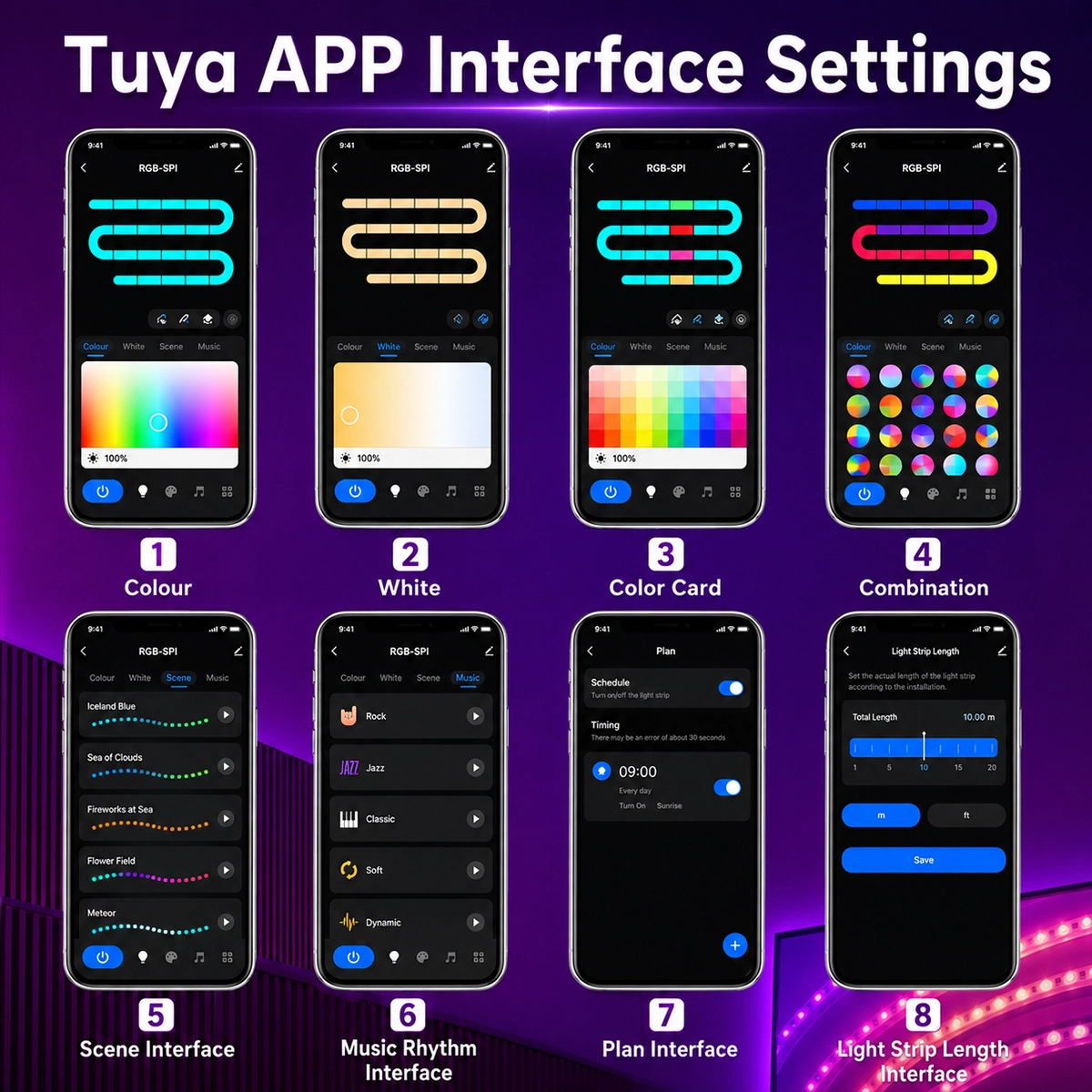

All Lighting Functions in the Tuya App
Manage every aspect of your lighting directly from your smartphone using the Tuya Smart and Smart Life apps. The interface allows you to select RGB colors, adjust saturation and brightness, control the white light of compatible RGBW strips, and create multicolored combinations distributed along the strip. You can also choose dynamic scenes, activate musical effects, set timers, and configure the actual length of the addressable pixel LED strip . Correctly setting the number of pixels allows you to distribute colors and effects precisely, adapting the controller's operation to the actual characteristics of the system. For app management, remote control, and integration into the smart ecosystem, a Tuya Zigbee gateway hub is required, which can be purchased separately.
Voice Control with Amazon Alexa and Google Assistant
Control your lighting without using your smartphone thanks to compatibility with Amazon Alexa and Google Assistant . Using simple voice commands, you can turn LED strips on or off, change colors, and adjust brightness and saturation, making daily room management easier. Voice control is particularly useful in living rooms, bedrooms, rooms, and installations where you want to quickly recall a specific atmosphere. To integrate the WZ-SPI controller with voice assistants and use its functions remotely, it must be paired with a Tuya Zigbee gateway connected to the internet.

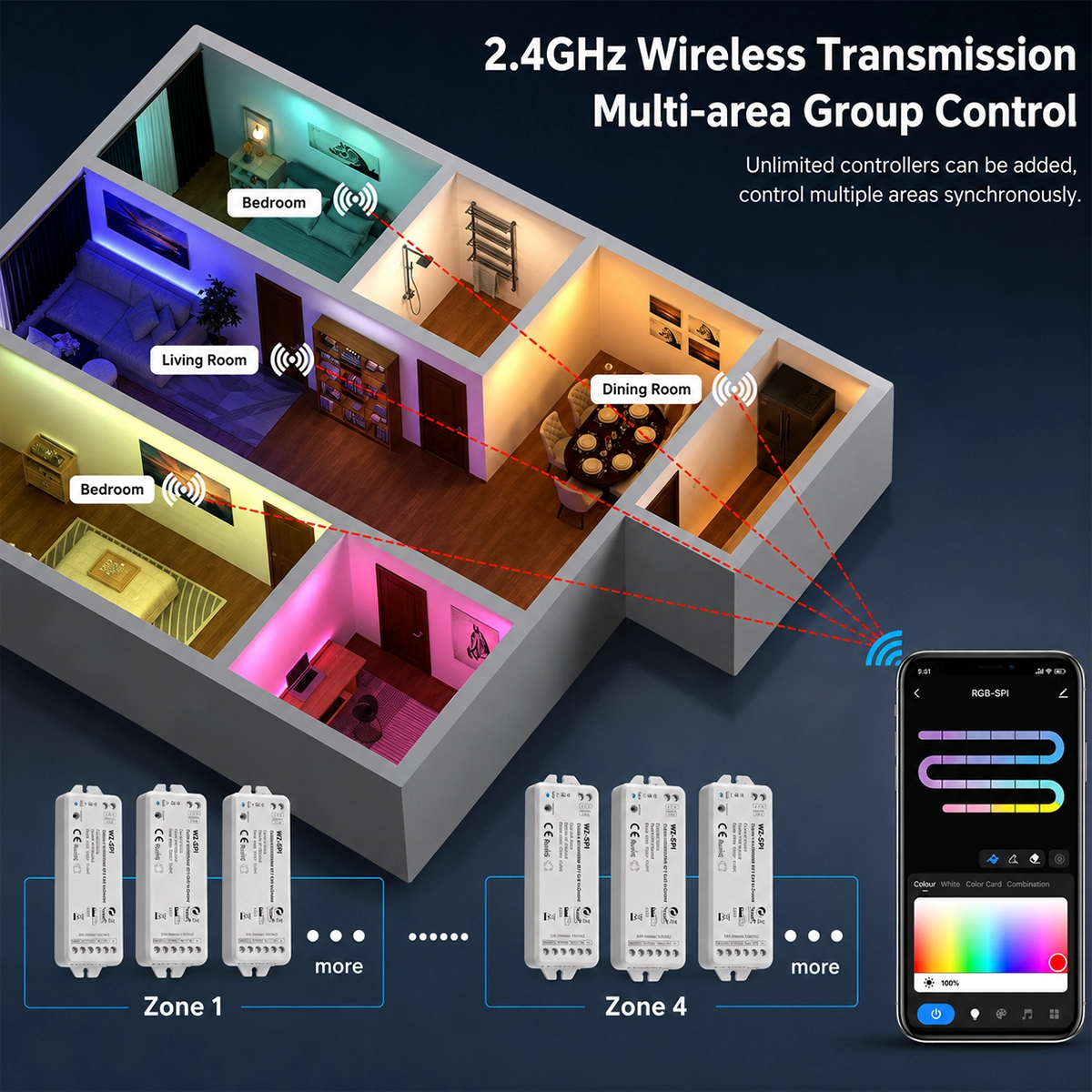

Multi-zone Control to Light Multiple Rooms in Synchronization
Organize the lighting of different rooms and areas through 2.4 GHz multi-zone control . Multiple controllers can be associated with different zones and managed simultaneously, allowing you to synchronize power, colors, brightness, and effects in the living room, kitchen, bedroom, or other spaces. You can create dedicated groups and control multiple systems simultaneously, while maintaining separate management when necessary. This solution makes the WZ-SPI LED controller suitable for both homes and commercial spaces, exhibition halls, and professional installations requiring coordinated lighting across multiple environments.

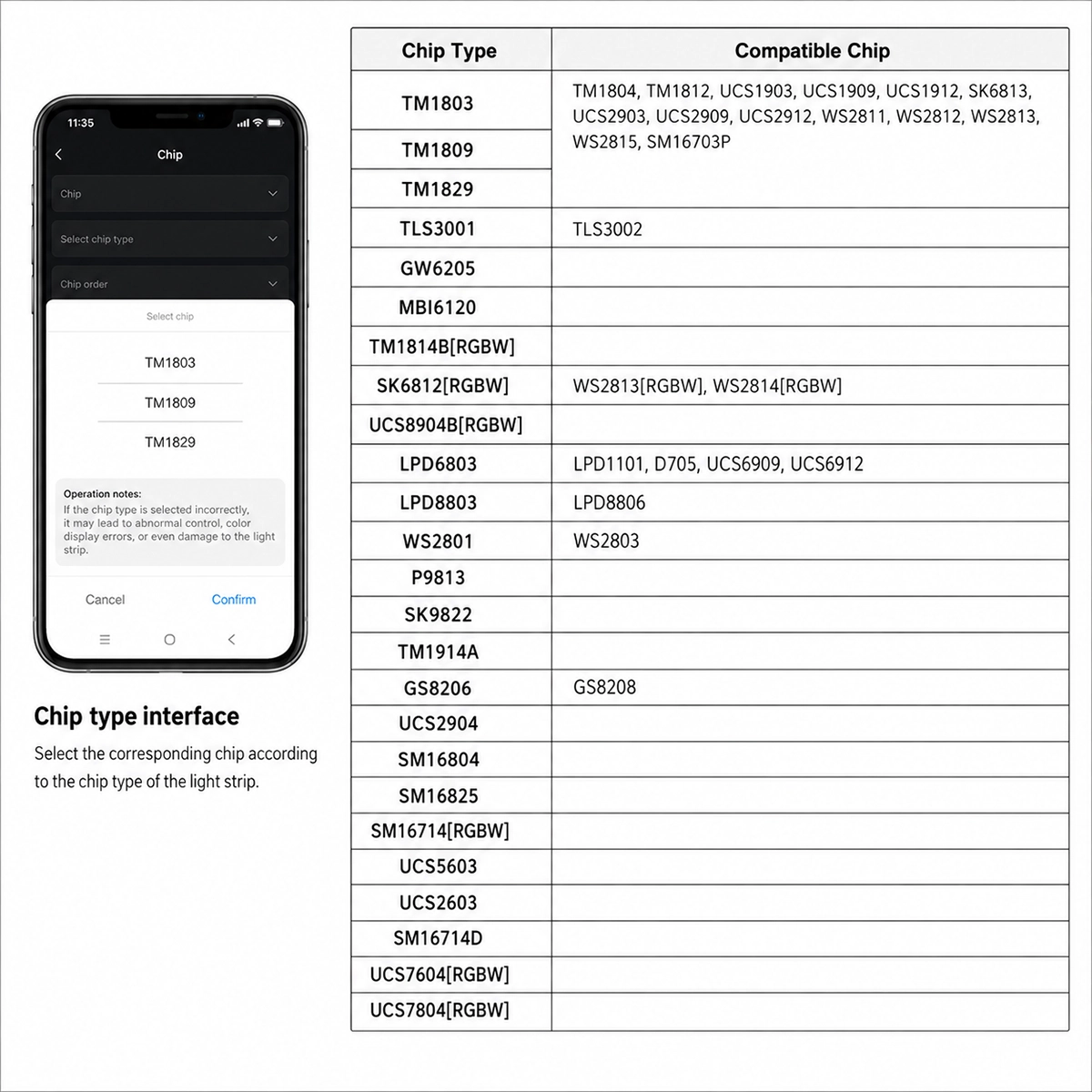

Extended Compatibility with 49 Types of SPI Chips
Configure the controller based on your installed strip by selecting the correct addressable SPI chip and color sequence in the app. The WZ-SPI supports 49 types of digital chips, including WS2811, WS2812B, WS2815, TM1809, and TM1934, as well as numerous TM, UCS, SK, LPD, and SM models. Correct selection allows the controller to interpret the strip's signal and display colors, segments, and effects in the expected sequence. This broad compatibility allows you to use the RGB/RGBW SPI controller in numerous pixel lighting projects, always verifying the actual chip present on the connected strip.
Timers and Automatic Programming for Any Moment
Schedule your smart LED lighting to turn on and off based on your habits. From the app, you can select times, days of the week, and actions to run automatically, creating more convenient and organized room management. The strips can turn on before you return, create a specific atmosphere in the evening, or turn off automatically at night. The timer function is also useful for shop windows, spaces, signs, and decorative installations that need to operate during specific time slots, reducing manual intervention and simplifying daily system management.
44 Dynamic Scenes to Transform Any Atmosphere
Choose from 44 predefined lighting scenes and change the atmosphere of your space with a simple touch. The available effects are designed to accompany moments of relaxation, parties, anniversaries, evenings, gaming, and special occasions, combining colors and movements along the LED strip. The system also offers more than 10 customizable scenes and 16 dynamic variations, including fade, breathe, flash, flow, rainbow, and chase. Speed, brightness, direction, and colors can be adapted to the needs of the project, making the Tuya pixel LED controller suitable for creative and scenic installations.
Custom Colors and Effects Synchronized with Music
Create original effects by freely choosing colors, brightness, sequences, and dynamic modes for the different segments of the addressable LED strip . DIY tools allow you to create customized scenes and distribute multiple colors along the strip, adapting each composition to the desired decor or atmosphere. The Music Rhythm function uses your smartphone's microphone to synchronize the effects with the rhythm of the music. Three app-based music modes with adjustable sensitivity are available, ideal for parties, clubs, gaming stations, and entertainment spaces, where light becomes an integral part of the audio experience.

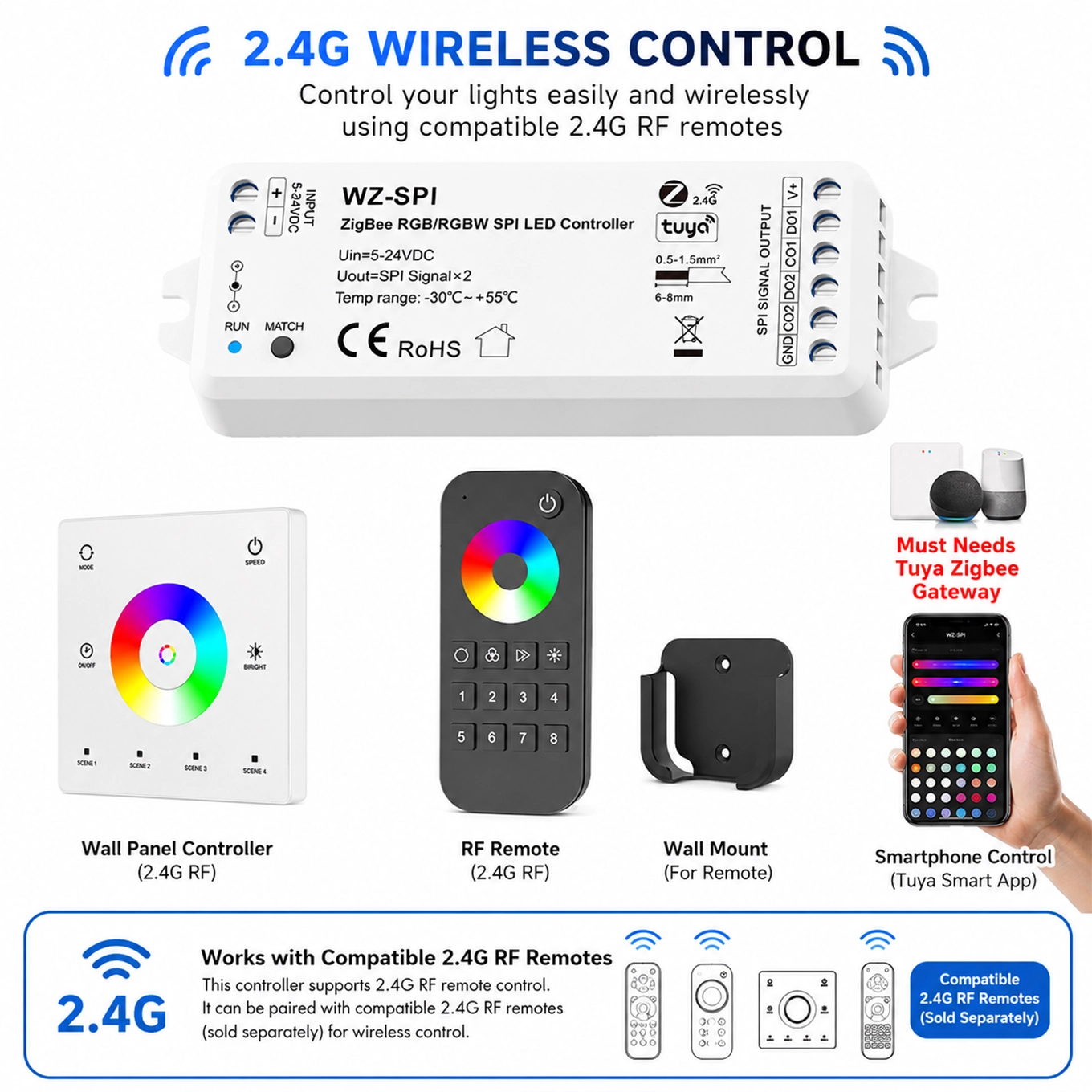

2.4GHz RF Control with Compatible Remotes and Panels
Manage the WZ-SPI controller even without your smartphone by pairing it with compatible 2.4 GHz RF remote controls or wall panels. Depending on the command you choose, you can adjust colors, brightness, speed, scenes, and zones, giving you instant control over your lighting. The remote control can be placed in the wall bracket for easy access, while the RF panels offer a fixed control station. Adding a Tuya Zigbee gateway also provides app management, remote control, and voice assistants. Gateways, remote controls, and RF panels are accessories that can be purchased separately.
Frequently Asked Questions
What is the Tuya WZ-SPI controller used for?
The WZ-SPI allows you to control digitally addressable RGB and RGBW LED strips with an SPI signal. It allows you to manage colors, brightness, individual segments, dynamic scenes, timers, and music-synced effects.
Which LED strips are compatible?
It's compatible with RGB and RGBW pixel LED strips equipped with a supported SPI chip. Before connecting, you'll need to check the chip model on your strip and select it correctly in the app.
Which SPI chips does it support?
The controller supports 49 chip types, including WS2811, WS2812, WS2812B, WS2815, TM1809, TM1934, SK6812 and numerous models from the TM, UCS, SK, LPD and SM families.
How many LED pixels can it handle?
The configurable length ranges from 10 to 1000 pixels, with a maximum capacity of 1000 LED points. The actual pixel count must be set in the app to correctly distribute colors and effects.
What applications can be used?
The controller can be managed through the Tuya Smart and Smart Life apps, from which you can configure the strip, select colors, adjust the brightness, create scenes and set timers.
Can it be used with a remote control?
Yes. The controller supports compatible 2.4GHz RF remote controls and wall panels, allowing you to manage colors, brightness, speed, scenes, and zones without using your smartphone.
Is it possible to control different parts of the strip separately?
Yes. In the app, the strip is divided into 20 segments. You can apply colors, combinations, transitions, and effects to the different sections using the fill, color pen, and erase tools.
What power supply does it require?
The controller requires a stabilized constant voltage power supply between 5 and 24V DC. The power supply voltage must match that of the connected LED strip.

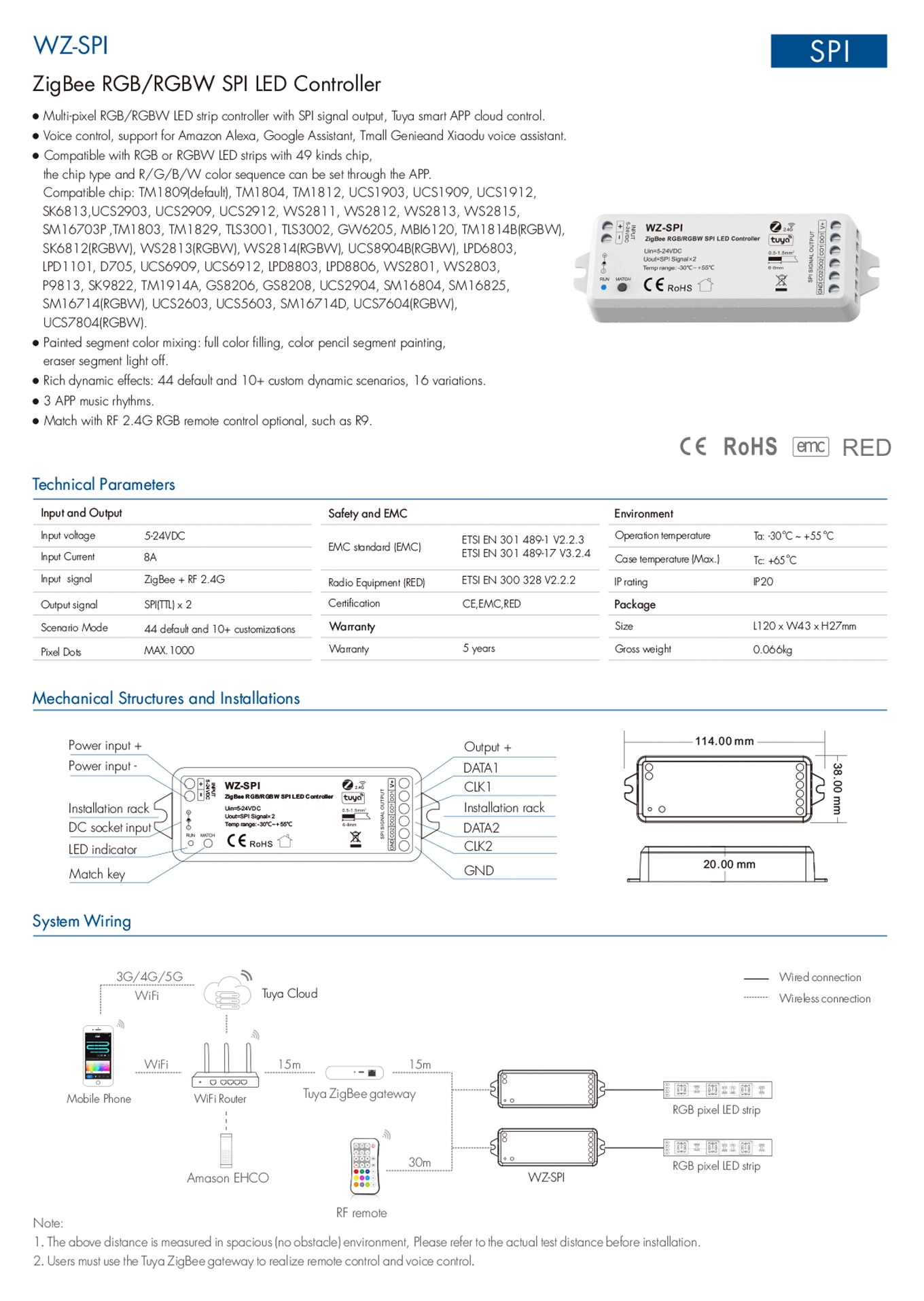

Tuya-39834(WZ)
Data sheet
- Material
- ABS+PC
- Working temperature
- -30°C ~ +55°C
- Voice Control
- Amazon Alexa and Google Home
- Mobile application
- Tuya Smart or Smart Life
- Dimensions
- 120x43x27 mm
- Communication Protocol
- RF 2.4G
Zigbee 3.0 - input voltage
- 5-24V DC
- Output voltage
- 5-24V DC
- Protection Rating
- IP20
- Input current
- 8A
- Exit signal
- SPI(TTL) x 2
- Pixel points
- MAX.1000
- LED Types Supported
- Digital LED with Chip
RGB
RGBW - Ideal for Automation
- LED
- Works with
- Amazon Alexa
Google Home
Home Assistant
Tuya / Smart Life - Hub required
- Tuya Zigbee gateway
- Ideal for
- Lights & LED
- Home Assistant integration
- Cloud integration
Zigbee via dongle (ZHA / Zigbee2MQTT)
Specific References
- UPC
- 641164291109
- EAN13
- 6411642911090
- MPN
- Tuya WZ-SPI
