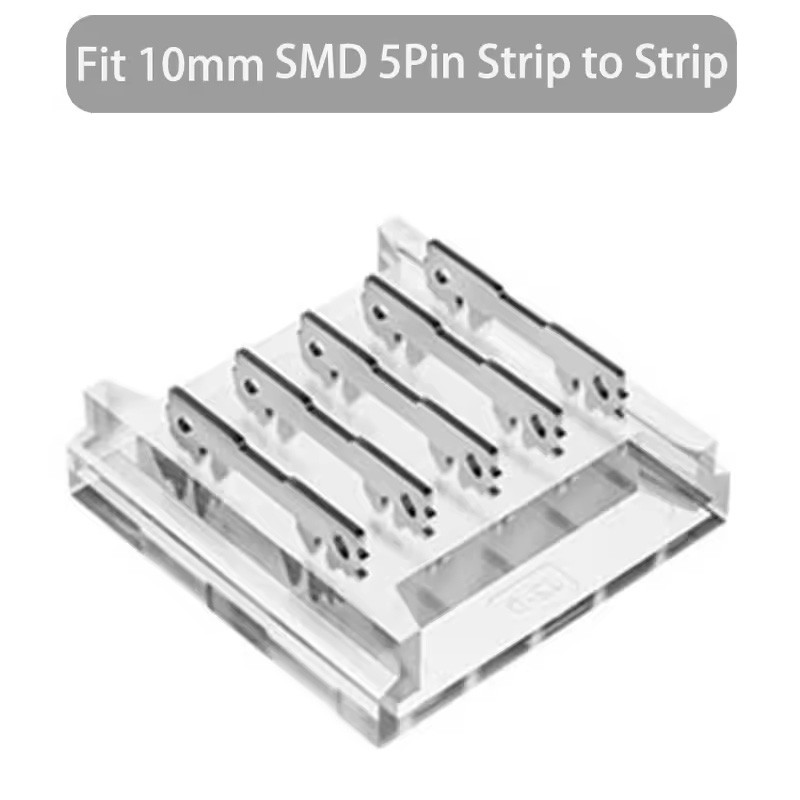

Quick Connector for 5 Pin RGBW COB and SMD LED Strips

Reference Tuya-CB6105

Brand Tuya

4in1 Solderless Connector for 10mm and 12mm RGBW LED Strip

Size

€0.79

Tax included

Delivery in 24/48 hours

Quantity

Crea un avviso per essere avvisato via email quando torneremo ad avere stock..

10mm

Introduce tu email para recibir una notificación cuando esté disponible

Recordar mi email

Description

The Solderless Quick Connector for 10 and 12mm 5 Pin COB and SMD RGBW LED Strips is an innovative solution for

lighting This connector offers a secure and reliable connection between two sections of LED strips, without the need

of welding, making it ideal for domestic and commercial lighting projects where ease of installation and

the quality of light is essential. Thanks to the advanced technology of " Pierce to contact " (IDC connection),

This connector ensures a continuous and reliable connection of the LED strips , without interruptions.

This quick connector offers a variety of functions, thanks to its ability to connect different configurations

of LED strips and power cables: from COB LED Strip to COB LED Strip; from SMD LED Strip to LED Strip

SMD; from LED Strips to Power Cable to bend the connection; from Power Cable to Power Cable

power supply. With versatile application, it is the best 5 Pin connector for flexible COB light strips

10 or 12 mm monochrome and common SMD flexible tapes with different quantities of LEDs , offering flexibility and

ease of use for a wide range of lighting projects.

The ultra-slim, low-profile design allows this connector to fit perfectly even in spaces

narrower , such as aluminum channels and grooves on furniture. Made of high quality materials, such as

Copper pin, and compatible with high quality COB LED strips, this connector ensures reliable and long-lasting performance.

No complicated tools are required, just insert the LED strip into the connector and secure it with light pressure.

Thanks to Pierce to contact technology (IDC connection), the conductor penetrates the PCB to conduct current between the

light strip segments, ensuring a stable and secure connection that does not interrupt the continuity of the LED light .

Support high current up to 3~24V/ 5A, it is important to check whether the PCB light strip can

support 5A using thick conductor , otherwise it may cause damage to the light strip.

Flip the connector over so that the movable cover side is facing outward.
Hold the corner of the connector with your left hand so that the connector has an upside-down shape.
Hold the LED light strip sections in your right hand so that the LED part of the light strip is facing you.
First insert the light section through the top connector input downwards. Close the movable transparent cover.
Then insert the other light section through the other input until it is as close as possible to the first light strip. Close the other transparent cover to complete the connection.

Please refer to steps 1-3 of COB strip installation above.
Insert two sections of the 5050 light strip into the ends of the connector so that the connector PIN lines up with the solder points on the light strip.
Close the transparent cover to complete the connection.
