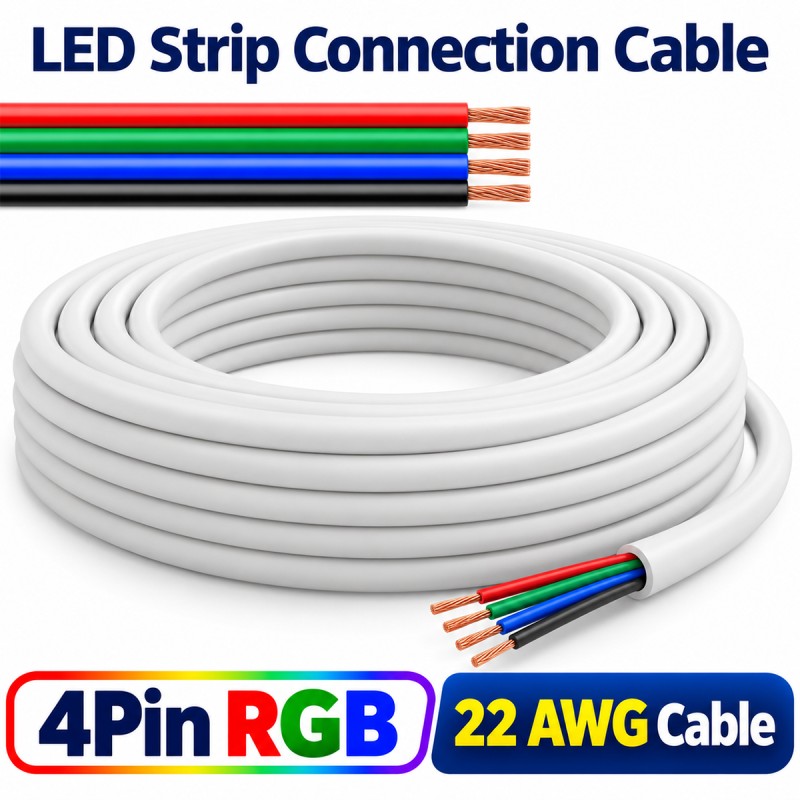

Multicore Cable with Sheath for RGB LED Strips 4 Pin 22 AWG
€1.99
Tax included
No review at the moment
- Four wires in one sheath: the four conductors for an RGB strip, the common positive and the red, green and blue channels, run inside a single white outer sheath.

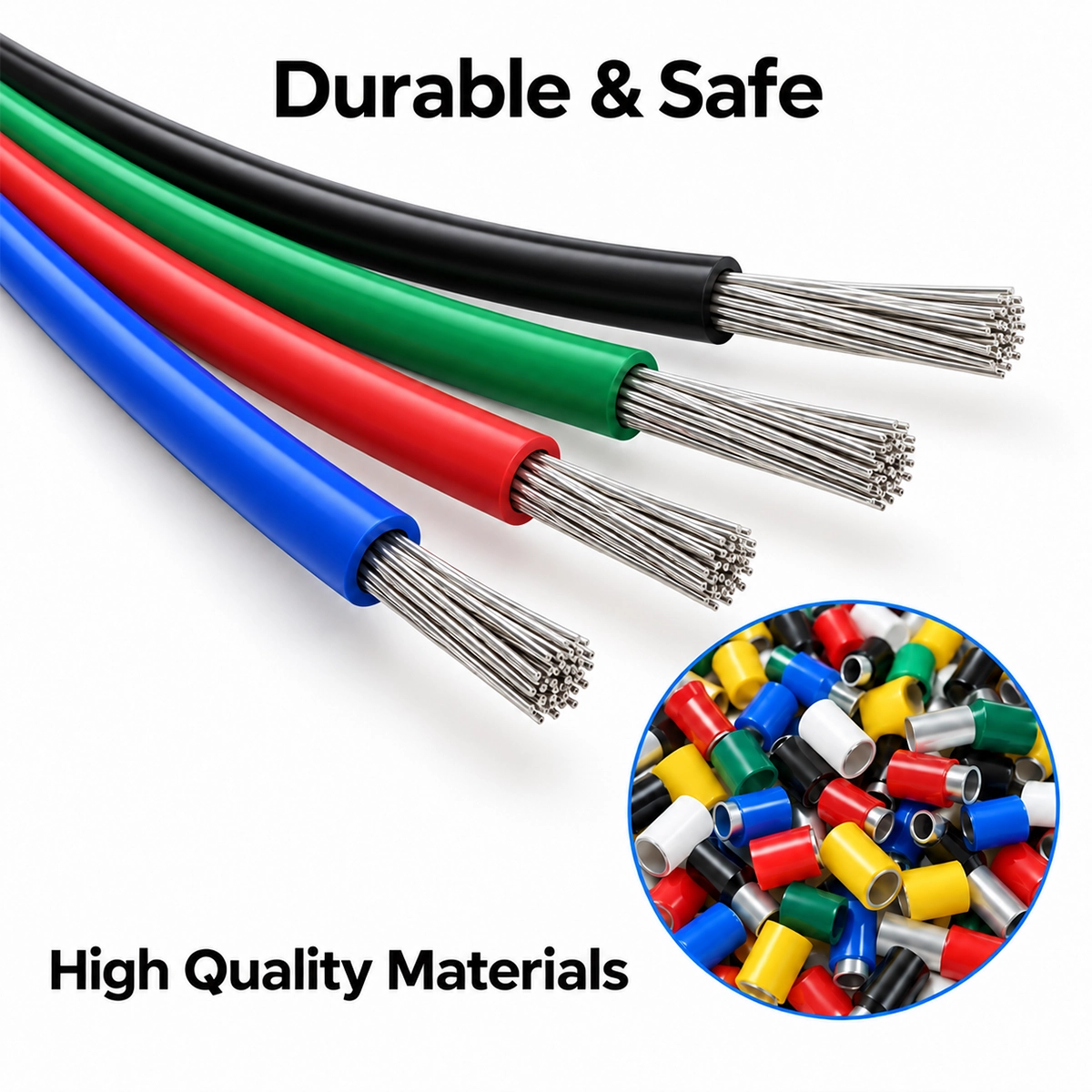

- Four different colours: the conductors are black, green, red and blue: identify each wire at a glance and use the same colour for the same pin from end to end.
- 22 AWG cross-section: each conductor has a cross-sectional area of 0.34 mm² (22 AWG) and is made up of fine strands, keeping the cable flexible so it bends without breaking.
- Electrolytic copper: conductors made of CU-ETP1 annealed electrolytic copper in accordance with DIN EN 13602, providing good electrical conductivity with low resistance.
- Double insulation: each wire has its own flame-retardant PVC insulation, and the PVC outer sheath adds extra protection along the entire cable.
- Cable specifications: AWM 2464, VW-1, FT1 and 22 AWG, with insulation ratings of 80 °C and 300 V: the codes indicate the UL style and flame tests.
- Round and tidy cable: a single round cable instead of four loose wires: routes neatly through cable trunking, along skirting boards and behind furniture, even where it remains visible.
- 1, 3 or 5 metres: choose the length you need from 1, 3 and 5 metres: a short length for a nearby connection or a longer one to position the controller further away.
- Unterminated ends: the cable comes without connectors: remove the sheath, strip about 5 mm of insulation from the wires and solder them to the strip, or insert them into a 4-pin quick connector.
- Strip extension: use it as an extension between the strip and RGB controller, to continue the strip around a corner or to run it from one piece of furniture to another.
- For LEDs and more: designed for 12 and 24 V RGB LED strips, it is also suitable for other low-voltage four-wire applications, such as lamps and small devices.
- Uniform lighting: with high-power strips and long runs, keep the cable as short as possible and supply power at multiple points to maintain uniform lighting all the way to the end.
- Passive accessory: no app, no protocol: the cable does not connect to WiFi. Strip, controller and power supply are sold separately.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
22 AWG 4-Pin RGB LED Strip Cable: Four colored wires in one round cable

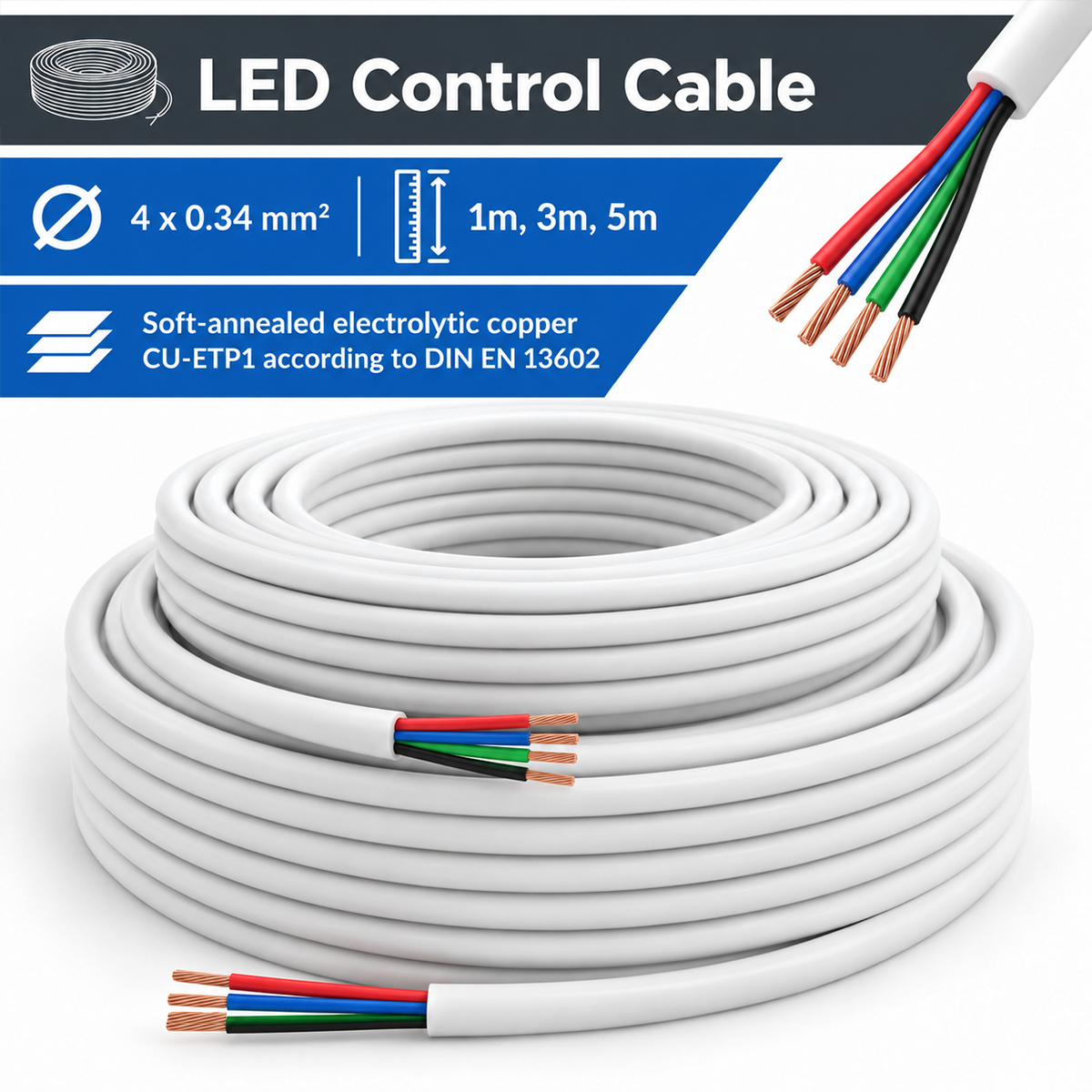

The 4-pin RGB LED strip cable with sleeve connects an RGB strip to its controller, or two strip sections together, and brings the four wires of the common positive and the red , green and blue channels into a single round cable. The conductors are black, green, red and blue, each 0.34 mm² (22 AWG) of stranded electrolytic copper, with flame-retardant PVC insulation. Above is a white PVC outer jacket that holds them together and protects them along the entire path. The ends are free, without connectors, and you can use it as an extension cable. It is available in three lengths: 1, 3 or 5 meters .
How to connect to the strip in five steps, without connectors

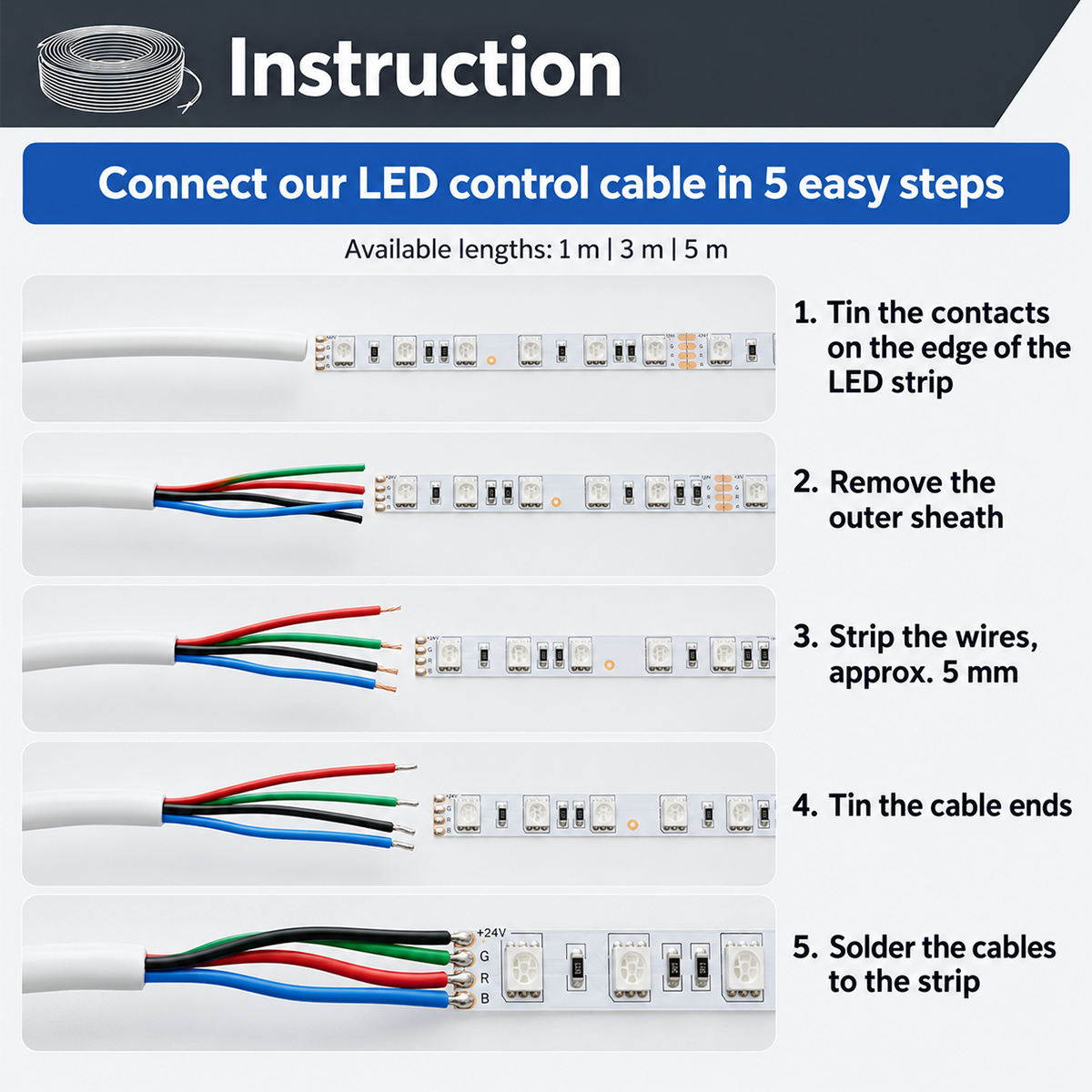

The cable is soldered to the strip in five steps, as shown in the image. First, solder the pads on the edge of the strip. Then, strip a few centimeters of the outer sheath , without cutting into the insulation of the wires underneath, and strip each wire by about 5 mm . Solder the ends of the conductors and solder them to the pads, using the same color for the same pin from one end of the cable to the other: follow the abbreviations printed on the strip and on the controller. If you prefer not to solder, use a 4-pin RGB quick connector from the strip to the cable : insert the stripped wires on one end and the strip on the other.
Where to use it: Gaming stations, home theaters, kitchens, and shops
The cable is useful where the strip is far from the controller or power supply. In a gaming setup, it carries the channels from the desk to the strip behind the monitor; in a home theater , it connects the strip under the TV stand to the controller hidden inside. In the kitchen, it connects the strips under cabinets and shelves; in a shop , it brings light to display cases and displays. The outer sheath also makes it suitable for exposed areas, where four loose wires would be messy. To control the colors from the app, you need a controller, such as the Tuya WiFi RGB Controller with Remote . The cable works at low voltage, not on the home's electrical system.
Same 0.34mm² construction with 2, 4, 5 and 6 wires for each strip type
The same construction, with 0.34 mm² conductors and an external sheath, is available with 2 wires for single-color strips, 4 wires for RGB strips, like this one, 5 wires for RGBW strips, and 6 wires for RGB+CCT strips, as shown in the image. This version has a white sheath and four conductors: black, green, red, and blue. If you prefer a flat cable without an external sheath, there's also a 4-pin flat cable for RGB LED strips , with the same colors and the same cross-section. To carry the power from the strip to the power supply, there's also a 4-pin RGB strip-to-power connector , in the right width for your strip.
Flame retardant PVC insulation, AWM 2464, VW-1 and FT1
Each conductor has its own flame-retardant PVC insulation, and the PVC outer jacket adds a second layer around the four wires. The cable ratings are AWM 2464, VW-1, FT1, and 22 AWG , with insulation temperature and voltage ratings of 80°C and 300V . AWM 2464 is the UL-approved style for multi-core jacketed cables, while VW-1 and FT1 are flame-tested, ensuring the cable won't spread fire. The PVC remains soft and can be stripped with standard wire strippers: first remove the outer jacket, then strip the individual wires to the length needed for the terminal or pad.
CU-ETP1 electrolytic copper and PVC jacket for a robust and flexible cable
The conductors are made of annealed electrolytic copper CU-ETP1 , compliant with DIN EN 13602 : this high-purity copper conducts current well with low resistance, and annealing makes it soft. Each wire is made of fine strands, so the cable can bend into corners and tight spaces without breaking. The outer sheath keeps the four wires neatly organized and protects them from impacts and chafing, such as when the cable runs behind furniture or through a hole. With powerful strips and long runs, keep the cable as short as possible and provide power from multiple points. Among the accessories and connectors for LED strips, you'll find terminals, connectors, and power supplies.
Frequently Asked Questions
What are the four wires for?
They carry the four pins of an RGB LED strip: the common positive and the red, green and blue channels.
How do I match wire colors to pins?
Follow the markings printed on the strip and on the controller and always use the same color for the same pin, from one end of the cable to the other.
What cross-section do the conductors have?
0.34 mm², i.e. 22 AWG. The conductors are made of stranded annealed electrolytic copper CU-ETP1.
What is the outer sheath for?
It holds the four wires together in a single round cable and protects them from bumps and chafing: it is tidier in the exposed sections and in the channels.
How do I connect it without soldering?
With a 4-pin RGB strip-to-cable quick connector : remove the sheath, strip the wires for about 5mm and insert them into the connector, then insert the strip from the other end.
What lengths are there?
1, 3, or 5 meters. The length can be chosen from the product versions.
Is this suitable for 12V and 24V strips?
Yes. The cable carries the power supply voltage as is, whether 12V or 24V.
How do I avoid light drops on long distances?
Keep the cable as short as possible, and with powerful or long strips, bring power from multiple points on the strip.
Are there cables for other types of strips?
Yes. There are also flat cables for single-color , CCT , RGBW and RGB+CCT strips, with the same cross-section of 0.34 mm².
Can it be used outside?
Yes, if it is protected: outside, run it through a sheath or conduit and protect the joints well from water.
Can I use it for 230V mains?
No. It is a thin 0.34 mm² cable, made for the low voltage circuits of LED strips: 230 V home systems require much larger cross-section cables.
Do you need an app or a hub?
No. It's a passive cable: the smart functions depend on the controller you connect the strip to.
Tuya-CB4104-1m
Data sheet
- Voice Control
- None
- Conductor section
- 0.34 mm²
- Suitable for LEDs
- RGB
- Quantity of PINs
- 4 PIN
- Nominal tension
- 300V
- Insulating material
- PVC
- LED Types Supported
- RGB
- AWG
- 22
- Conductor
- Copper
- Works with
- No app (accessory)
- Hub required
- None (standalone)
- Ideal for
- Lights & LED
- Home Assistant integration
- Not integrable
Specific References
- UPC
- 425135527168
- EAN13
- 4251355271683
- MPN
- Tuya CB4104 1m
