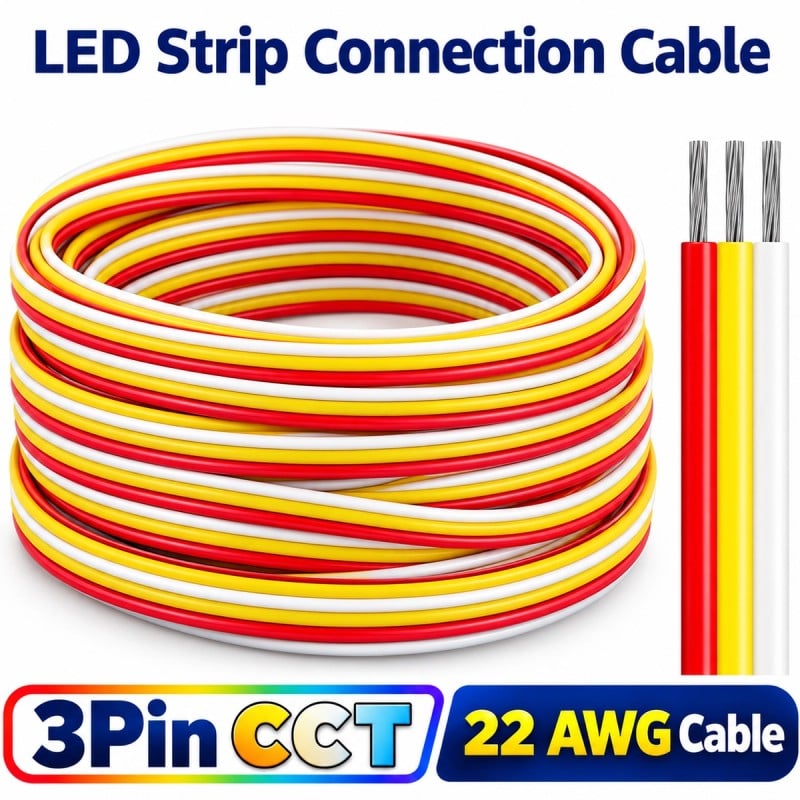

CCT 3 Pin LED Strip Cable 22 AWG 0.34 mm²
€1.39
Tax included
No review at the moment
- Three wires for CCT: connects the three pins of a CCT LED strip, the common positive and the warm white and cool white channels, from the strip to the controller.
- Red, white and yellow: the conductors come in three different colours: identify each wire at a glance and keep the same colour for the same pin from end to end.
- 22 AWG cross-section: each conductor has a cross-section of 0.34 mm² (22 AWG) and consists of 17 strands measuring 0.16 mm: it stays flexible and bends without breaking.
- Tinned copper: the strands are made of tinned copper, which resists oxidation over time and readily accepts solder when you solder the cable to the strip's pads.
- PVC insulation: each wire has its own flame-retardant PVC sheath (AWM 1007, VW-1 and FT1), with a rated voltage of 300 V and a temperature rating of up to 80 °C.
- 4.86 mm flat cable: the three wires run side by side in a 4.86 mm-wide ribbon measuring 1.6 mm in height: it fits inside aluminium profiles, cable trunking and behind furniture.
- Separable wires: the conductors can be pulled apart at the ends, so you can route each wire to its terminal or pad without cutting the insulation on the others.
- 1, 3 or 5 metres: choose the length you need from 1, 3 and 5 metres: a short length for a nearby connection or a longer one to position the controller further away.
- Unterminated ends: the cable comes without connectors: solder it to the strip, secure it in the controller's terminals or insert it into a 3-pin quick connector.
- Strip extension: use it as an extension cable between the strip and controller, to join two sections around a corner or to run lighting from one piece of furniture to another.
- Also suitable for single-colour strips: with a single-colour strip, use two wires for positive and negative and leave the third unused, insulating its end.
- Uniform lighting: with high-power strips and long runs, keep the cable as short as possible and supply power at multiple points to keep the light uniform all the way to the end.
- Passive accessory: no app, no protocol: the cable does not connect to WiFi. Strip, controller and power supply are sold separately.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
22 AWG 3-Pin CCT LED Strip Cable, Red, White, Yellow, Tinned Copper
The 3-pin CCT LED strip cable connects a dimmable white LED strip to its controller, or two sections of strip together. It carries the common positive and the two channels of warm white and cool white on three separate wires. The conductors are red, white and yellow, so you keep the same order from one end to the other without getting confused. Each wire has a cross-section of 0.34 mm² (22 AWG) , is made up of 17 strands of tinned copper and is insulated with flame-retardant PVC. The strip is 4.86 mm wide and 1.6 mm high: it fits into the aluminum profiles and conduits. The ends are free, without connectors, and you can use it as an extension. It is available in three lengths: 1, 3 or 5 meters .
Tinned copper strands: less oxidation and easier soldering
Each conductor contains 17 0.16 mm strands of tinned copper . The tin coats the copper and protects it from oxidation, which over time darkens the exposed wires and makes the contacts less reliable. It also makes soldering easier: the tin adheres immediately to the strands and pads of the strip, even with a low-power soldering iron. The copper conducts current with low resistance , while the thin strands keep the cable flexible in corners and tight spaces. Before tightening a wire in a terminal, twist the strands well so that none are left loose and touch the adjacent conductor.
Where to use: CCT LED strips, lamps and small electronic wiring
The cable is designed for 3-pin CCT LED strips , those with warm white and cool white on the same strip. Use it as an extension between the strip and the controller, for example when the controller is in a cabinet and the light runs under cabinets, in a ceiling groove, or behind the bathroom mirror. It can also be used to reconnect the strip after a corner or door. Use it with strips like the 24V CCT COB LED strip . To adjust the color and brightness from the app, you need a two-channel controller, such as the Tuya 2-Channel WiFi and RF Controller . It's also suitable for other low-voltage wiring, not for 230V home electrical systems.
0.34 mm², 22 AWG cross-section, in a 4.86 mm wide and 1.6 mm high ribbon
The three conductors—red, white, and yellow—are arranged side by side in a ribbon 4.86 mm wide and 1.6 mm high . Each has a cross-section of 0.34 mm² , equivalent to 22 AWG , and is made up of 17 strands of 0.16 mm. The narrow, low profile fits through aluminum LED strip profiles, under baseboards, and in smaller conduits, and is easily hidden behind furniture. To connect it to the strip without soldering, you can use a 3-pin CCT strip-to-power connector of the appropriate width. With powerful strips and long runs, keep the cable as short as possible.
Flame retardant PVC insulation, 300V and up to 80°C
Each conductor has its own flame-retardant PVC sheath, with the acronyms VW-1 and FT1 printed on it: these are two flame tests for insulated wires, which verify that the sheath does not spread fire. The insulation can withstand a nominal voltage of 300 V and a temperature of up to 80 °C , as indicated on the sheath. The PVC remains soft and can be stripped with a standard wire stripper, and the three wires are separated by hand at the ends to the required length. Among the accessories and connectors for LED strips, you will find quick connectors, terminals, and power supplies to complete the connection.
Frequently Asked Questions
What are the three wires for?
They carry the three pins of a CCT LED strip: the common positive and the warm white and cool white channels.
How do I match wire colors to pins?
Follow the markings printed on the strip and on the controller and always use the same color for the same pin, from one end of the cable to the other.
What cross-section do the conductors have?
0.34 mm², or 22 AWG. Each conductor is made up of 17 strands of 0.16 mm tinned copper.
Does the cable have connectors?
No. The ends are free: you solder them to the strip, clamp them into the controller's terminals, or plug them into a 3-pin quick connector.
What lengths are there?
1, 3, or 5 meters. The length can be chosen from the product versions.
How do I avoid light drops on long distances?
Keep the cable as short as possible, and with powerful or long strips, bring power from multiple points on the strip.
Is this okay for a single color stripe?
Yes. You use two conductors for the positive and negative and leave the third free, insulating its end.
Are there cables for other types of strips?
Yes. In the same series there are cables for single-color , RGB , RGBW , RGB+CCT and addressable strips.
Can it be used outside?
Yes, if it is protected: outside, run it through a sheath or conduit and protect the joints well from water.
Can I use it for 230V mains?
No. It is a thin 0.34 mm² cable, made for the low voltage circuits of LED strips: 230 V home systems require much larger cross-section cables.
Do you need an app or a hub?
No. It's a passive cable: the smart functions depend on the controller you connect the strip to.
Tuya-CB3150-1m
Data sheet
- Voice Control
- None
- Conductor section
- 0.34 mm²
- Suitable for LEDs
- CCT
- Length
- 4.86mm
- Quantity of PINs
- 3 PINS
- Nominal tension
- 300V
- Insulating material
- PVC
- LED Types Supported
- CCT White Variable
- AWG
- 22
- Conductor
- Tinned copper
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Lights & LED
- Home Assistant integration
- Not integrable
Specific References
- UPC
- 937891940539
- EAN13
- 9378919405393
- MPN
- Tuya CB3150 1m
