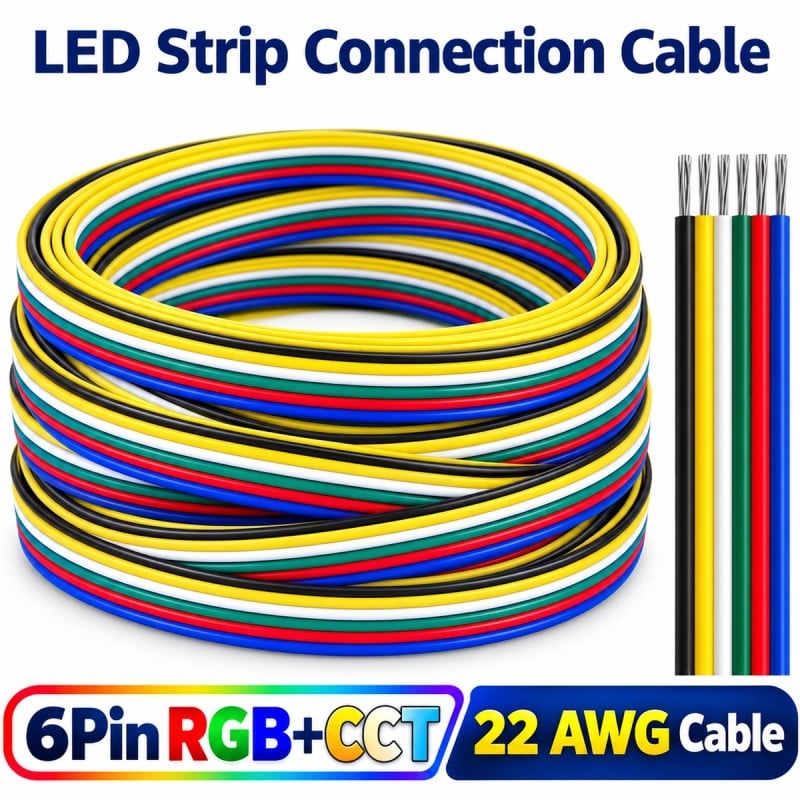

6 Pin 22 AWG 0.34 mm² RGB+CCT LED Strip Cable
€2.29
Tax included
No review at the moment
- Six wires for RGB+CCT: connects the six pins of an RGB+CCT LED strip: the common positive, the red, green and blue channels, and the two warm and cool white channels.
- Six different colours: the conductors are black, green, red, blue, white and yellow: identify each wire at a glance and use the same colour for the same pin.
- 22 AWG cross-section: each conductor has a cross-sectional area of 0.34 mm² (22 AWG) and consists of 17 strands measuring 0.16 mm each: it stays flexible and bends without breaking.
- Tinned copper: the strands are made of tinned copper, which resists oxidation over time and readily accepts solder when you solder the cable to the strip's pads.
- PVC insulation: each wire has its own flame-retardant PVC sheath (AWM 1007, VW-1), with a rated voltage of 300 V and a temperature rating of up to 80 °C.
- 9.68 mm flat cable: the six wires sit side by side in a 9.68 mm wide ribbon, 1.6 mm thick: it fits inside aluminium profiles and cable trunking, and behind furniture.
- Separable wires: the conductors can be pulled apart at the ends, so you can route each wire to its terminal or solder pad without cutting the insulation of the others.
- 1, 3 or 5 metres: choose the length you need from 1, 3 and 5 metres: a short length for a nearby connection, or a long one to position the controller further away.
- Free ends: the cable comes without connectors: solder it to the strip, secure it in the controller's terminals or insert it into a 6-pin connector.
- Strip extension: use it as an extension between the strip and controller, to join two sections around a corner or to supply power to both ends of the strip.
- For LEDs and more: designed for 12 and 24 V RGB+CCT LED strips, it is also suitable for other low-voltage, six-wire applications, such as lamps and small devices.
- Uniform lighting: with high-power strips and long cable runs, keep the cable as short as possible and supply power at multiple points to maintain uniform lighting all the way to the end.
- Passive accessory: no app, no protocol: the cable does not connect to WiFi. Strip, controller and power supply sold separately.
Secure payments: cards, PayPal, bank transfer, and installments
Delivery within 48 hours: Free shipping on orders over €150 across Europe
Easy 14-day returns: follow the steps to get your refund
22 AWG 6-Pin RGB+CCT LED Strip Cable, Six-Color Wire, Tinned Copper
The 6-pin RGB+CCT LED strip cable connects an RGB+CCT LED strip to its controller, or two sections of strip together. It carries the common positive, the red , green and blue channels and the two channels of warm white and cool white onto six separate wires. The conductors are black, green, red, blue, white and yellow, so keep the same order from one end to the other. Each wire has a cross-section of 0.34 mm² (22 AWG) , is made up of 17 strands of tinned copper and is insulated with flame-retardant PVC. The strip is 9.68 mm wide and 1.6 mm high. The ends are free, without connectors, and you can use it as an extension. It is available in three lengths: 1, 3 or 5 metres .
Tinned copper strands: less oxidation and easier soldering
Each conductor contains 17 0.16 mm strands of tinned copper . The tin coats the copper and protects it from oxidation, which over time darkens the exposed wires and makes the contacts less reliable. It also makes soldering easier: the tin adheres immediately to the strands and pads of the strip, even with a low-power soldering iron. The copper conducts current with low resistance , while the thin strands keep the cable flexible in corners and tight spaces. Before tightening a wire in a terminal, twist the strands well so that none are left loose and touch the adjacent conductor.
How to connect to a 6-pin RGB+CCT LED strip
The cable connects to a 6-pin RGB+CCT LED strip , such as the 24V RGB+CCT COB LED strip , in four ways. At one end, to bring the strip to the controller. At a 90° angle, to rejoin the strip after a corner. At both ends , to power the strip from both ends or to join two distant sections. Or you can solder it directly to the strip's pads , respecting the order of the colors. To control colors and whites from the app, you need a 5-channel controller, such as the Tuya 5-in-1 Zigbee and RF controller . The cable works at low voltage, not on your home's electrical system.
0.34 mm², 22 AWG cross-section, in a 9.68 mm wide and 1.6 mm high ribbon
The six conductors—black, green, red, blue, white, and yellow—are arranged side by side in a ribbon 9.68 mm wide and 1.6 mm high . Each has a cross-section of 0.34 mm² , equivalent to 22 AWG , and is made up of 17 strands of 0.16 mm. The low profile fits through aluminum LED strip profiles, under baseboards, and in conduits. For soldering-free connections, you can use a 6-pin RGB+CCT strip-to-power connector of the right width for your strip. With powerful strips and long runs, keep the cable as short as possible and bring power from multiple points.
Flame retardant PVC insulation, 300V and up to 80°C
Each conductor has its own flame-retardant PVC sheath, rated VW-1 : this is the vertical flame test for insulated wires, which verifies that the sheath does not spread fire. The insulation has a nominal voltage of 300 V and a temperature of up to 80 °C , as indicated on the sheath. The PVC remains soft and can be stripped with standard wire strippers, and the six wires are separated by hand at the ends to the required length. Among the accessories and connectors for LED strips, you will find quick connectors, terminals, and power supplies to complete the connection.
Frequently Asked Questions
What are the six wires for?
They carry the six pins of an RGB+CCT LED strip: the common positive, the red, green and blue channels and the warm white and cool white channels.
How do I match wire colors to pins?
Follow the markings printed on the strip and on the controller and always use the same color for the same pin, from one end of the cable to the other.
What cross-section do the conductors have?
0.34 mm², or 22 AWG. Each conductor is made up of 17 strands of 0.16 mm tinned copper.
Does the cable have connectors?
No. The ends are free: you solder them to the strip, clamp them into the controller terminals, or plug them into a 6-pin connector.
What lengths are there?
1, 3, or 5 meters. The length can be chosen from the product versions.
Is this suitable for 12V and 24V strips?
Yes. The cable carries the power supply voltage as is, whether 12V or 24V.
How do I avoid light drops on long distances?
Keep the cable as short as possible, and with powerful or long strips, bring power from multiple points on the strip.
Are there cables for other types of strips?
Yes. In the same series there are cables for single-color , CCT , RGB , RGBW and addressable strips.
Can it be used outside?
Yes, if it is protected: outside, run it through a sheath or conduit and protect the joints well from water.
Can I use it for 230V mains?
No. It is a thin 0.34 mm² cable, made for the low voltage circuits of LED strips: 230 V home systems require much larger cross-section cables.
Do you need an app or a hub?
No. It's a passive cable: the smart functions depend on the controller you connect the strip to.
Tuya-CB6150-1m
Data sheet
- Voice Control
- None
- Conductor section
- 0.34 mm²
- Suitable for LEDs
- RGB+CCT
- Length
- 9.68mm
- Quantity of PINs
- 6 PIN
- Nominal tension
- 300V
- Insulating material
- PVC
- LED Types Supported
- RGB+CCT
- AWG
- 22
- Conductor
- Tinned copper
- Works with
- No app (accessory)
- Hub required
- None (Wi-Fi / standalone)
- Ideal for
- Lights & LED
- Home Assistant integration
- Not integrable
Specific References
- UPC
- 937891940516
- EAN13
- 9378919405164
- MPN
- Tuya CB6150 1m
